Steps on how to remove the lens. Removal of the LCD display and the outside case is required.

  1. JQAmQmIQ2xWE2ZoA
    • Turn the camera off by pressing the small, square button embedded in the top rim of the camera.

    • Locate the battery hatch on the bottom-right side of the camera and slide it outwards to open.

    • In the compartment, move the small notch and push down on the battery to remove it.

    • During reassembly, there is an arrow on the battery hatch indicating which way it goes in.

  2. WIItTvlMZg1OUy1P
    WIItTvlMZg1OUy1P
    6ZqrjenQQ3VV3EFl
    KIFKLmBh2IjBOoJg
    • Remove the eight screws around the sides and bottom of the camera using a Phillips #00 screwdriver.

  3. gNTxxZeJX1js3XWl
    gNTxxZeJX1js3XWl
    sKWJL4iYREUNnubo
    ytCjln5r5qR43RNV
    • Using the spudger, gently pry the rear panel away from the left side.

    • Be careful not to damage the three green cables as you remove the rear panel of the camera.

  4. rnAikH4gVYeOxUdh
    • Using the Phillips #00 screwdriver, remove the eight black screws connecting the green keypad chip to the rear panel.

    • Do not put any excessive force on the green wires.

  5. ptCf3vjCyrZugghe
    • Separate the rear panel from the rest of the camera.

  6. XLgQVrd6qGGs5WXa
    XLgQVrd6qGGs5WXa
    5LRENJIF5gaLu6oo
    • Using the Phillips #00 screwdriver, remove the 3 screws located across the top of the camera.

    • Separate the black plastic panel from the camera. The camera button will be attached, so be gentle.

  7. JSdWsypfyAkAnaSt
    JSdWsypfyAkAnaSt
    SRCpnDIn6ffwnpki
    • Carefully pull off the side covers wrapped around the camera.

  8. QPkgDbnuCleNMecc
    QPkgDbnuCleNMecc
    Kpl1DdEfhQiPB6Kx
    yldWe5WfxwabFBGo
    • Using the spudger, gently lift off the front cover of the camera.

    • The front cover is fragile, so be gentle when removing it. It can easily break if not removed carefully.

  9. iMGATg1XCI1UEqvZ
    iMGATg1XCI1UEqvZ
    sm6SBBIyWaRBx4UU
    • Use caution not to damage ribbon when disconnecting.

    • The yellow ribbon is attached to the right side of the screen and goes to a black connector piece.

    • Gently flip the black connector away from the LCD screen to unlock the yellow ribbon.

    • Carefully pull the yellow ribbon towards the LCD screen to disconnect it.

  10. WZmgvVUVwnUDwBoI
    • The LCD screen should now be disconnected from the rest of the camera and a pry tool can be used to lift it out of its casing.

    Caution: Wires are still connecting the LCD screen to the camera.

    Jonathan Yau -

  11. uQtSJBRNSSNwlZRC

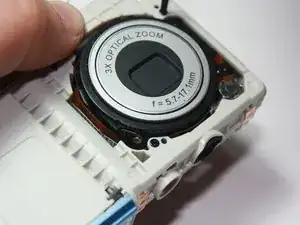

    • Flip the camera over with the lens facing up.

  12. KZGLiS3eS4A6owRu

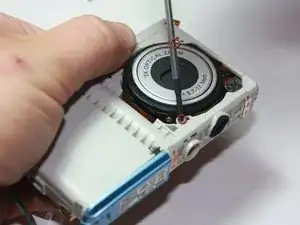

    • Using the Phillips #00 Screwdriver, remove the two screws holding the lens in place.

    • Use your other hand to hold the lens in place so the lens does not fall out while removing the screws.

  13. 4MGpbtMrRYA1deSQ
    4MGpbtMrRYA1deSQ
    rIkWItpFLBnha4uD

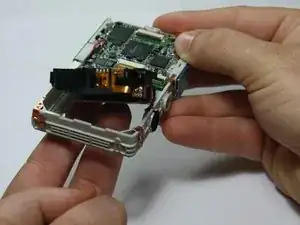

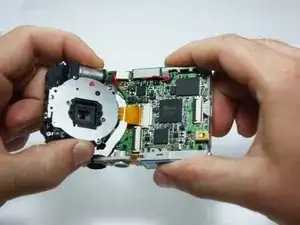

    • While keeping hold of the lens, flip the entire assembly around.

    • Using your fingers, gently push the lens out from its position in the casing.

    • There is still a flat, golden wire connecting the lens to the motherboard.

  14. 6YmgkQO2vfLMvVTb
    6YmgkQO2vfLMvVTb
    c1RnMEUhS43sQ2sm

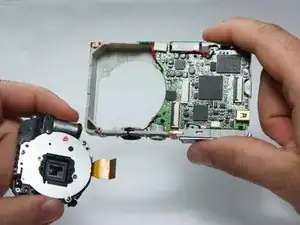

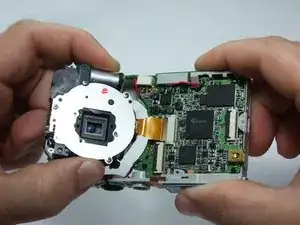

    • Carefully unplug the golden wire from the motherboard to remove the lens from the assembly.
