Sanyo VPC-T850 Lens Replacement

Geschrieben von: James Robinson
  • Kommentare: 2
Sanyo VPC-T850 Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

Keine Schätzung

Einleitung

  1. WpHcgKmpvu6ioD4y

    • Make sure the camera is powered off by pressing and holding the small, square button embedded in the top rim of the camera.

    jai le meme mais je n artive plus a l allumer et le viseur ne rentre plus comment je dois faire pour l allumer la bayerie ne reste pas fixe pouvez vous m aider en francais merci

    nadine Guchez -

    Bjr j aie le meme appareil photo sanyo 8i vpc-T850*megapixel je n arrive plus a l alummer et la naterie est charger a 100pourcents et elle ne reste pas fix pouvez vous m aider en ftancaismerci

    nadine Guchez -

  2. GESsPv1ytqrtngYr

    • Locate the hatch found on the bottom of the camera.

    • Open the hatch by gripping the small notch and sliding it outwards.

  3. njC5v3Pm32ZdBPK1

    • Push the small, plastic arm out of the way to free the battery.

    • The battery is spring loaded and will pop out slightly when the arm is moved.

  4. KPDcFFgy2XZuMfco

    • Pull the battery out of the camera and close the hatch.

    • To reinsert, there is a triangle on the battery indicating which direction to slide it in.

  5. AWuVEBXaNXrFDQdl
    AWuVEBXaNXrFDQdl
    ojCEC2UrwOyJrtsG
    NTyXTb5qjGxtSTCr

    • Using your Phillips #000 Screwdriver, remove the eight screws located around the sides and bottom of the camera.

    • Be sure to keep track of the side each screw comes from, as they come in different lengths.

  6. ZiXufWHxijMGNSuC
    ZiXufWHxijMGNSuC
    NXgT3mVemMOULQm1

    • Orient the camera so the display is facing up.

    • Gently pull off the rear panel surrounding the display.

    • There are still three green wires connecting the panel to the rest of the camera.

    • Use your prying tool if you have difficulties removing the panel by hand.

  7. JmINOb63qJGMRTCD

    • Remove the eight black screws connecting the keypad circuit board to the rear panel.

  8. NsV2tx3Q2JAHcn4L
    NsV2tx3Q2JAHcn4L
    UntpknbGsNvhjIlX

    • With a plastic opening tool, gently remove the chrome framing on the left and right sides of the camera.

  9. OGSVkFQV3aRBn3it

    • Flip the camera over so the lens is facing up.

    • Gently lift up the front panel to remove it from the rest of the camera.

    • Use your plastic opening tool if you have difficulties removing the panel by hand.

  10. ZrJ6GWBROTWw6EYp

    • Flip the device over to where the display is located.

    • Using your plastic opening tool, lift the display out of its metal housing.

  11. tyOHnbZTCBStWtrN

    • Locate the orange ribbon connecting the display to the camera.

    • Using your plastic opening tool, gently lift the black bar holding the orange ribbon to the camera.

  12. TesqccmDuNxIjqLk

    • With two fingers held firmly on the display, gently pull the orange ribbon out of the camera.

    • Pull slowly to avoid severing the orange ribbon from the display.

  13. yapvZB2x2uRfEoZN

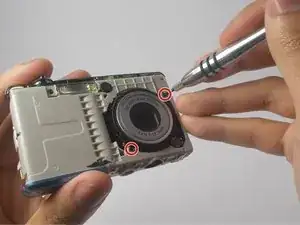

    • Orient the camera so the lens is facing up.

    • Locate and remove the two screws connecting the lens to the camera.

  14. DfNonH3PLxHJqsnL
    DfNonH3PLxHJqsnL
    YGlYuUOXSQaRhfxo

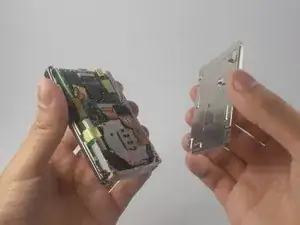

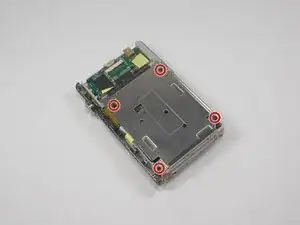

    • Flip the camera back around to the other side.

    • Remove the four black screws connecting the metal display holder to the camera.

    • You do not have to remove the three screws located near the center.

    • Gently lift the display holder to reveal the underside of the lens.

  15. PefgLcsFY6sVpRCC
    PefgLcsFY6sVpRCC
    bpaKYKyphrqfenOH
    SZL5Z5duAVw3GiKE

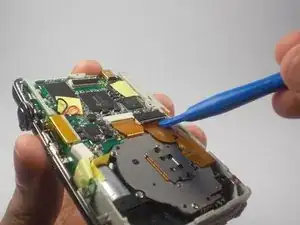

    • Locate where the larger orange ribbon is plugged into the motherboard.

    • There should be a rectangular foam piece covering the part it is plugged into.

    • Using your plastic opening tool, gently lift the edge of the rectangle where the orange ribbon is connected.

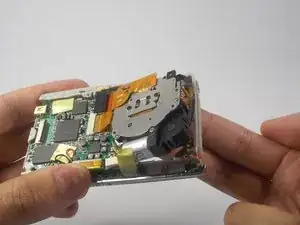

  16. C2LfViYMaBNJAGhR

    • With two fingers, slowly lift the lens out of its compartment.

  17. HlTwwCcPxo13dxbY

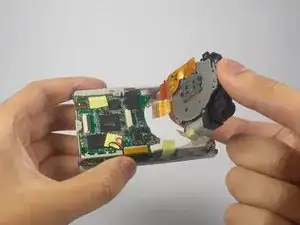

    • With the lens between your thumb and index finger, pull to delicately slide the ribbons out of their connections.

    • The lens should be placed back into the compartment before attempting to reconnect the ribbons.

Abschluss

To reassemble your device, follow these instructions in reverse order.
