Sanyo dp50747 Plasma TV fuse replacement and power board check

Geschrieben von: Andre Silveira
  • Kommentare: 28
Sanyo dp50747 Plasma TV fuse replacement and power board check

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

2 year old TV would not power up one day, after doing online research I found out that it could be the a blown internal fuse $.99, or the power board, around $70 on Ebay. Fortunately in my case it was the fuse (ft8ah250vp) that gave up, and after an hour of work, I had it up and running.

  1. ZUVFJDKoIFneIXrk

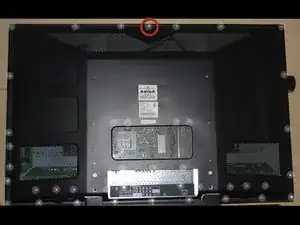

    • Step 1 - Remove all 42 screws from back cover. Remove top center screw last, it will help to hold the panel in place during removal of other screws.

    what does a bad fuaw look like

    lisamcclellan662 -

  2. wf3GjHxcRxX6FEKE

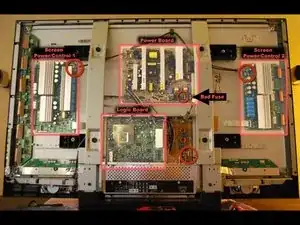

    • Caution: Before you remove the motherboard, be cautious of the many capacitors throughout that could cause serious injury. Use a discharge probe to safely rid the capacitors of dangerous charges.

    • Wearing electrically insulated gloves and rubber soled shoes while working with and near the capacitors ensures greater safety and protection against electric shock. See iFixit's Project Safety page for additional safety information.

    • There are 5 fuses total, make sure to remove them from the holder and check for continuity with a multimeter.

    • If all test Ok, you might need to have the Power board replaced.

    Most capacitors store electrical charges for seconds, at the most. Never work on a tv while it is plugged in it. But unplugging it and leaving it for 5-10 minutes will ensure that the capacitors and electrical components have drained their charge.

    zachary mikell -

    hi am having a problem with my sanyo tv. the standby mode disappeared and i tried to turn it on but i could'nt. can anyone be of help please

    lydia sey -

    I'd like to thankyou for this guide as it cost me nothing to fix my Sanyo TV. My kids have the 50 inch for their Xbox and last week it stopped working. I work away so they had to wait for me to get home from work. 2 days ago i removed the back and checked the fuses recommended by another website and they were fine so I assumed it was something worse. I was going to put the TV out on the street for someone but thought i'd check the internet once more. I found this article where it stated 5 fuses so I started to remove the screws again and as i bent down to do the left hand side of the TV i noticed a small black button on the side.

    My first thought was.. surely not. So i plugged in the TV pressed the small button and on came the TV. So i gathered the family around the TV and we all banged our heads together. We all new about the on off switch on the right hand side but not the left.

    Anyway thx again even though the solution was not on this page it did help fix it.

    ozzyneil -

    My SANYO TV been setting up for three months, without being disrespected I would never know how to fix my TV. THANK you for this information, it sure helped me to save hundreds of dollars. I would recommend it to friends who have trouble with their TV. Thanks again

    James L Davis Sr -

  3. ZiMturncVOiNhRTy

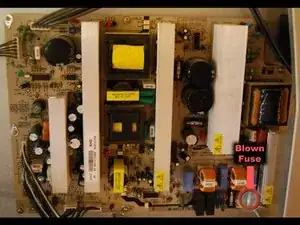

    • That's the one that I found faulty. Just Remove it with a pair of needle-nose pliers and replace with a new one (ft8ah250vp).

  4. CqC1HeA1XWZUSVeL

    • TV up and running... and the best part was that it only cost me less than a dollar to get it repaired!!!!

Abschluss

To reassemble your device, follow these instructions in reverse order.
