Sanyo-PM 8200 Keypad Replacement

Geschrieben von: Cassandra Stavros
  • Kommentare: 3
Sanyo-PM 8200 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

This guide will help you replace the keypad on your Sanyo-PM 8200 flip phone. In order to replace it, you will need to remove the back casing from the device and lift the motherboard.

  1. kZeVXTsvAjpiJoV1

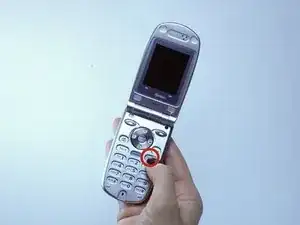

    • Power down the phone by holding down the red "end" button.

  2. ZdPCXUQyWqkZo5fM

    • Push and hold the button on the back toward the direction of the arrow to unlock the battery.

    • Lift and remove the battery from the back of the phone.

  3. OQum6TPwxwryuiMZ

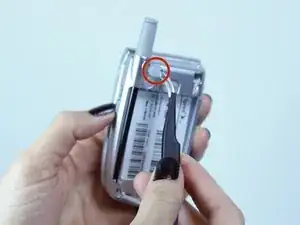

    • Use a push pin or tweezers to remove the neoprene screw-cover located on the upper, left corner of the back casing.

    This detail is important for other Sanyo flip phones as well. I was swapping motherboards in a pair of SCP-3820s where one had a broken display, and the screws under these neoprene screw covers had me stymied for a while!

    Kevin Wade -

  4. O4dfinLJqR3yFNNW

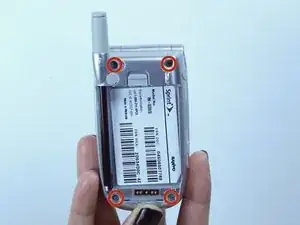

    • Unscrew all four, 5mm Tri-Wing screws.

    Tri-wing screws are a reason I hate Sanyo with my entire being. If you haven’t experienced them before, you will need to purchase a specialty screwdriver tip, often called a Y-tip or a tri-wing tip. In my case working on a Sanyo SCP-3820, the 2.5 size worked, but I could have used the 2.0 as well. No other style of screwdriver will work.

    Kevin Wade -

  5. 6Jy5UM12JTFVpvSP
    6Jy5UM12JTFVpvSP
    dGsnOtlWhuv5EeyO

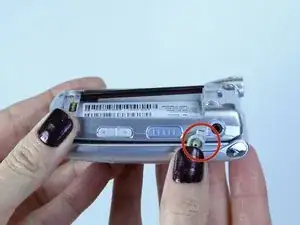

    • Pry the back casing off the device using a spudger. Work your way along the edges to completely separate the back casing from the device.

    • This step may require extra force. But too much force could break the back casing.

    • Remove the headphone jack cover when separating the back casing. The headphone jack is located on the opposite side of the antenna.

  6. sIsUSbNjRTJVIpsV
    sIsUSbNjRTJVIpsV
    bHSDXXFfCnMejbQt

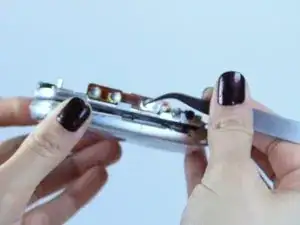

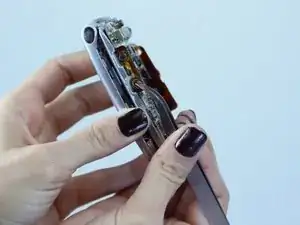

    • Remove the camera and call keys from the side of the phone where the antenna is located.

    • Remove the Readylink and volume control buttons from the other side of the phone.

  7. ZQunwuKV5tIG4SEV

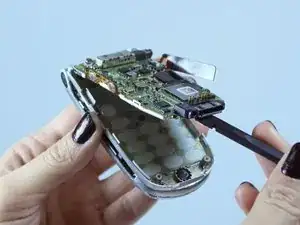

    • Place the plastic opening tool underneath the motherboard and gently lift up.

    • Be careful not to damage the flex cable ribbon connecting the motherboard to the device.

  8. fHDmlKBOWvlMboDw
    fHDmlKBOWvlMboDw
    MGFKM3WJBLq33PLn
    RABWYYCFfYiFuh5Y

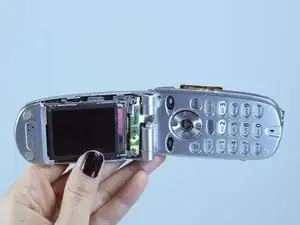

    • Flip open the phone to reveal the keypad.

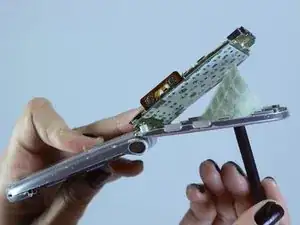

    • Place the plastic opening tool underneath the keypad and gently push the keypad towards the motherboard.

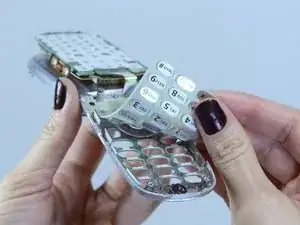

    • Remove the keypad.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Cassandra Stavros

Mitglied seit: 07/10/14

28 Reputation

Ein Kommentar

In almost all flip phones, there’s a flex cable ribbon that connects the motherboard to the display side of the phone. It is permanently attached to the display side and plugs into the motherboard. As there are anywhere from 16 to 50 connections in the cable, I recommend being careful NOT to unplug it…aligning it for plugging it back in properly can be tricky!

Kevin Wade -
