  1. 3sPuGEhNBVpLArdB
    • Place the monitor face down.

    • Remove the four 11.5mm screws with a #2 Phillips screwdriver.

    • Remove the stand by pulling it out.

  2. mSwIVPnA2JCXfvZC

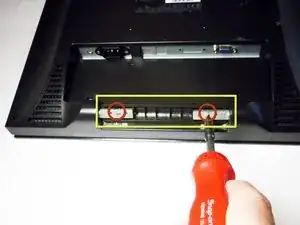

    • Remove two 11.5mm screws with a #2 Phillips screwdriver.

    • Remove the plastic bar.

  3. QApVk5V3iLBajqsT
    • Using a #2 Phillips screwdriver, remove the six 7mm screws at the circled locations.

  4. NuEXVFr5hSwrHx3N
    NuEXVFr5hSwrHx3N
    Pb6ZKs3L1kP5fvEZ
    aaTX1YjIrYvKBDWV

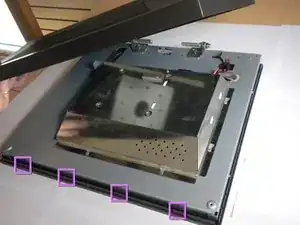

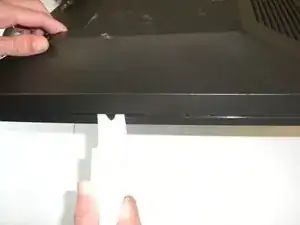

    • Pry the monitor using the plastic opening tool to release the clips holding the cover on.

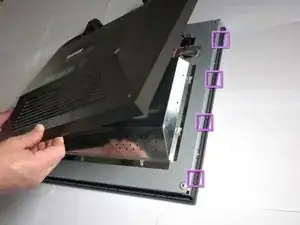

    • There are four clips on each side, four on the top, and one on the bottom.

    • You may hear a loud snapping noise when releasing the clips. Do not be alarmed, it is natural.

    • Once all the clips have been released, remove the cover by pulling it up.

  5. ERlC4wPeEIZHpWvE
    ERlC4wPeEIZHpWvE
    wZtE2IyGcYFYaMNp

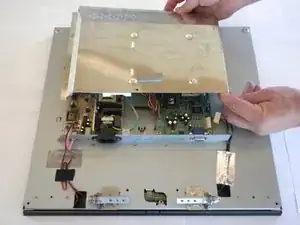

    • Using the #2 Phillips screwdriver, remove the one 6mm screw.

    • Unplug the indicated cable by pulling on the base.

    • Slide the cover toward the top of the monitor.

    • Remove the cover.

  6. UPv2RiNKMUw6B5tR
    UPv2RiNKMUw6B5tR
    qwTtSv5spkoTHGGS
    qji5ySEEeY4lAoJl

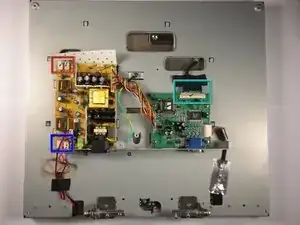

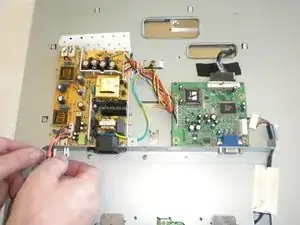

    • Use caution when removing the connectors as they can easily break when removing.

    • Disconnect the two connectors at the top-left of the power board.

    • Disconnect the two connectors at the very bottom of the power board (pink wire).

    • Disconnect the multi-pin connector at the top of the motherboard.

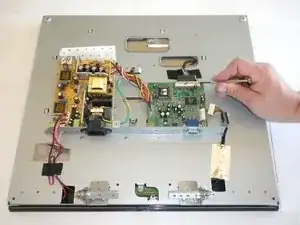

    • A small flat-blade screwdriver or tweezers can be used to assist in removal of connectors.

  7. 2FFcVNW1UagCHMcq
    2FFcVNW1UagCHMcq
    1oVTEMgsDQLWMSfP
    SJmrGW6tbHCZQxCp

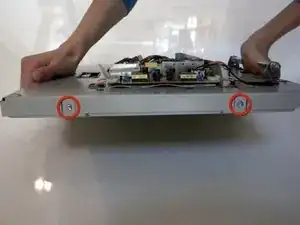

    • Use a #2 Phillips to unscrew the two 4.5mm screws on each side of the back panel.

    • Carefully side the connectors through their respective openings.

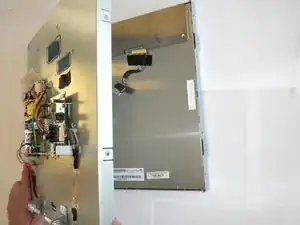

    • Lif the back panel to reveal the LCD back cover.

  8. KnNSHkYW2sBVCsXW
    KnNSHkYW2sBVCsXW
    BkKYer141irPxMdM
    GO2UCgi5S6MmosqP

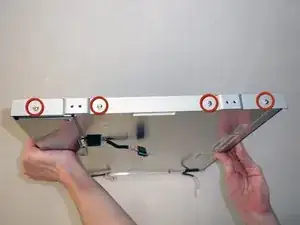

    • Use a #2 Phillips to remove the four 6mm screws on the bezel for each side of the back cover.

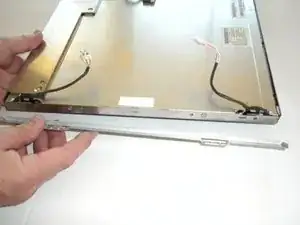

    • Remove the bezels from the LCD back cover (the bezels should simply fall off once the screws are removed).

  9. g6L4hYroKTxIB2Fw
    g6L4hYroKTxIB2Fw
    LS1FvrIKDfQMHnDx
    tOwVMu6hMIQcDMiC

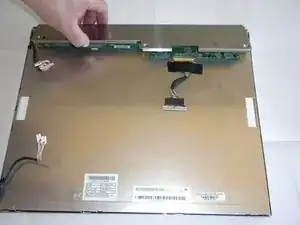

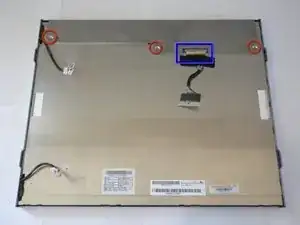

    • Use a #0 Phillips to remove the three 4.5mm screws located on the LCD back cover.

    • Lift the inner panel to remove it.

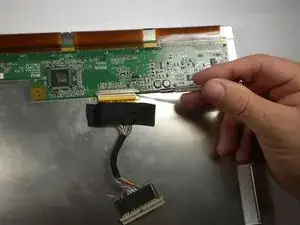

    • Disconnect the muti-pin connector on the LCD back cover by firmly pulling down on it.

  10. jwib5PNUHcJftYK6
    jwib5PNUHcJftYK6
    pBFaXbStlSdNvkHV

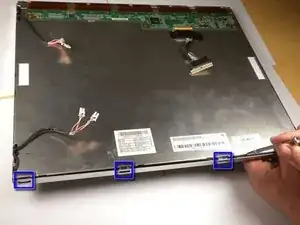

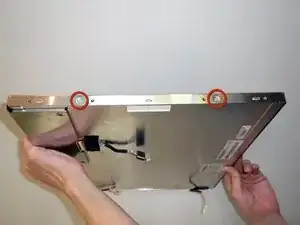

    • Use a #0 Phillips to remove the two 6mm screws on each side of the LCD cover.

    • There are tabs holding down the cover. You may have to use a bit of force to pry them open.

    • A small flat-blade screwdriver can be used to pry off LCD cover.

  11. CD5AZnSwMp3OPYHQ
    CD5AZnSwMp3OPYHQ
    4MPWbmfNhmuTdLYR
    dcVqNSoQXhFkKbh5

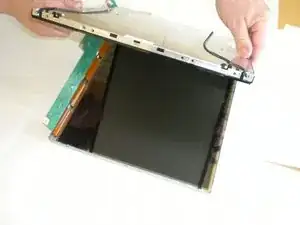

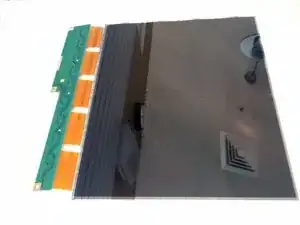

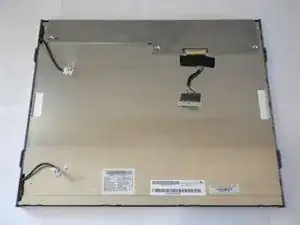

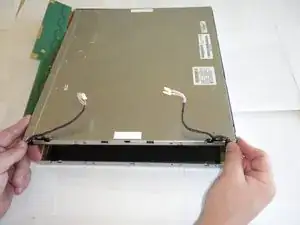

    • Lift the LCD back cover to reveal the LCD screen below.

Abschluss

To reassemble your device, follow these instructions in reverse order.
