Use this guide to remove the power supply unit.

  1. 3sPuGEhNBVpLArdB
    • Place the monitor face down.

    • Remove the four 11.5mm screws with a #2 Phillips screwdriver.

    • Remove the stand by pulling it out.

  2. mSwIVPnA2JCXfvZC
    • Remove two 11.5mm screws with a #2 Phillips screwdriver.

    • Remove the plastic bar.

  3. QApVk5V3iLBajqsT
    • Using a #2 Phillips screwdriver, remove the six 7mm screws at the circled locations.

  4. NuEXVFr5hSwrHx3N
    NuEXVFr5hSwrHx3N
    Pb6ZKs3L1kP5fvEZ
    aaTX1YjIrYvKBDWV
    • Pry the monitor using the plastic opening tool to release the clips holding the cover on.

    • There are four clips on each side, four on the top, and one on the bottom.

    • You may hear a loud snapping noise when releasing the clips. Do not be alarmed, it is natural.

    • Once all the clips have been released, remove the cover by pulling it up.

  5. ERlC4wPeEIZHpWvE
    ERlC4wPeEIZHpWvE
    wZtE2IyGcYFYaMNp
    • Using the #2 Phillips screwdriver, remove the one 6mm screw.

    • Unplug the indicated cable by pulling on the base.

    • Slide the cover toward the top of the monitor.

    • Remove the cover.

  6. Uo3kYIJBNSjfkeCo
    • Using a #2 Phillips screwdriver, remove the two 4.72 mm Phillips screws that hold the power adapter in place.

  7. dSHqrMUrPMyRxaWL
    dSHqrMUrPMyRxaWL
    i11w2bqthCbXp1Ts
    ICjarmE1FtiSUfB1

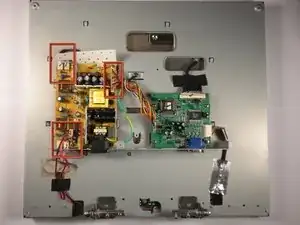

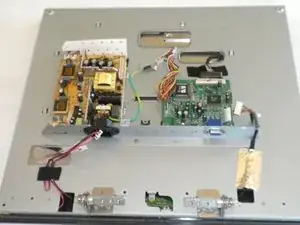

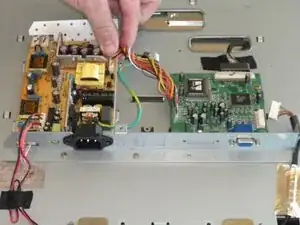

    • Unplug the seven connections from the power supply unit by gently pulling on them.

  8. s1dZ5WQRYhjNrkZ4
    • Using a #2 Phillips screwdriver, remove the screws and the wire that is attached to the ground.

    • Four 6 mm Phillips screws

    • One 8 mm Phillips screw

  9. fu6CuRwMSwrHDCLM
    fu6CuRwMSwrHDCLM
    OTqK42D6RkJRP2Zd

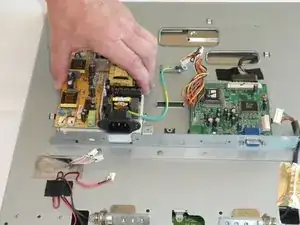

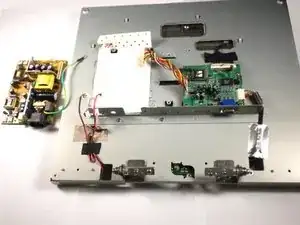

    • Lift the power supply unit straight up to remove it from the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
