  1. 3sPuGEhNBVpLArdB
    • Place the monitor face down.

    • Remove the four 11.5mm screws with a #2 Phillips screwdriver.

    • Remove the stand by pulling it out.

  2. mSwIVPnA2JCXfvZC
    • Remove two 11.5mm screws with a #2 Phillips screwdriver.

    • Remove the plastic bar.

  3. QApVk5V3iLBajqsT
    • Using a #2 Phillips screwdriver, remove the six 7mm screws at the circled locations.

  4. NuEXVFr5hSwrHx3N
    NuEXVFr5hSwrHx3N
    Pb6ZKs3L1kP5fvEZ
    aaTX1YjIrYvKBDWV
    • Pry the monitor using the plastic opening tool to release the clips holding the cover on.

    • There are four clips on each side, four on the top, and one on the bottom.

    • You may hear a loud snapping noise when releasing the clips. Do not be alarmed, it is natural.

    • Once all the clips have been released, remove the cover by pulling it up.

  5. ERlC4wPeEIZHpWvE
    ERlC4wPeEIZHpWvE
    wZtE2IyGcYFYaMNp
    • Using the #2 Phillips screwdriver, remove the one 6mm screw.

    • Unplug the indicated cable by pulling on the base.

    • Slide the cover toward the top of the monitor.

    • Remove the cover.

  6. 4rY4kWTWGEVVxAtP
    4rY4kWTWGEVVxAtP
    CUXYkClRArCFHCUY
    H3lMXSAXOMTBvLVx
    • Use caution when removing the connectors as they can easily break when removing.

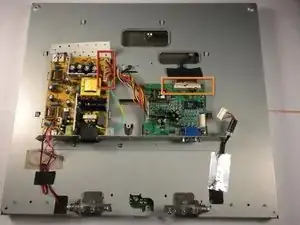

    • Disconnect the multi-pin connector at the top of the board by firmly grasping the connector and pulling to the side.

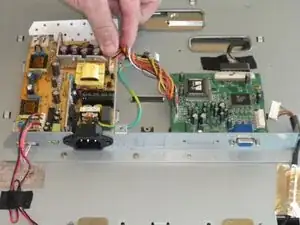

    • Disconnect the multi-pin connector that runs between the video motherboard and the power supply motherboard. Firmly grasp the connector and pull straight up.

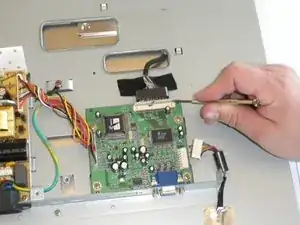

    • A plastic opening tool can be used to assist in the removal of connectors.

  7. Qn5WbnKFWyNANJSW
    Qn5WbnKFWyNANJSW
    5AWbVYsSLToqmqUM

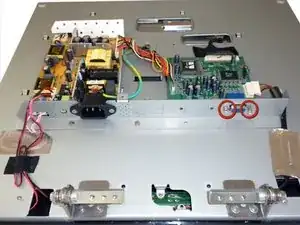

    • Remove the two 3/16" hex head screws from the VGA connecter. Use a pair of needle nose pliers if a wrench is not available.

  8. spBqOqvgQ6luO4AE

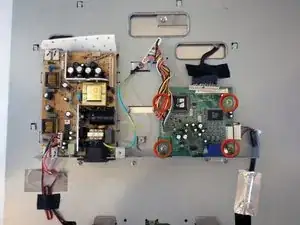

    • Remove the four 6.4mm #2 Phillips screws from the corners of the motherboard with a #2 Phillips screwdriver.

  9. At2FvkwtFqdUxhuI
    At2FvkwtFqdUxhuI
    oP1qTHxEOP2YVAYL

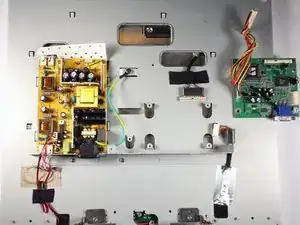

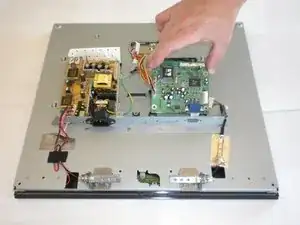

    • Lift the motherboard straight up to remove it from the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
