Einleitung

This guide will aid in removing a punctured or ruptured inner tube and replacing it with a new one.

  1. CCAExChC4JaUHxEt
    • Flip the bicycle upside down.

    • By flipping the bicycle upside down it will offer additional support by being able to stand up by itself.

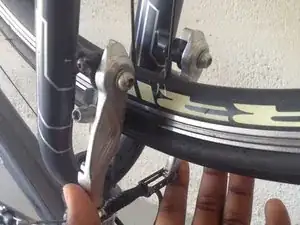

  2. JAfYXmmUYuo3eLAs
    • Apply pressure to both sides of the brake arm with one hand and lift the metal brake cable from the brake caliper.

    • By releasing the brake cable from the brake caliper, it will loosen the brake pads by the tire.

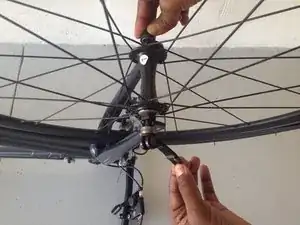

  3. QpN2SIJeXDLKdSxV
    QpN2SIJeXDLKdSxV

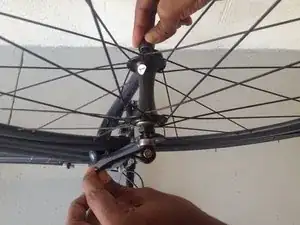

    tbVQqR1JpDXwhhHa
    • Push the quick release lever outwards towards your body.

    • While holding the other end of the quick release lever, rotate the lever counter-clockwise until it is loose.

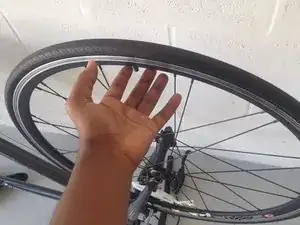

  4. kWjQkX5ZrelkZZU6
    • Lift the tire to remove it from the bicycle.

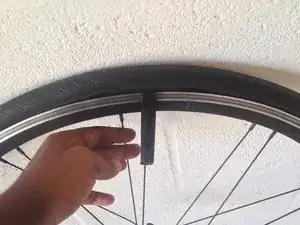

  5. fkv4W5BbPsRoaLhW
    • Insert the flat end of the tire lever between the inside wall of the tire and the outside of the rim.

    • Attach the other end of the tire lever to the nearest spoke on the rim.

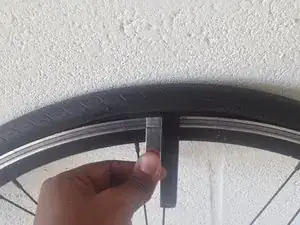

  6. gWjWhrhCnDryXYos
    • Insert a second tire lever next to the first lever to create leverage for releasing the tire from the rim.

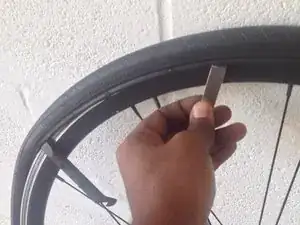

  7. EWqn4qMvkWpaMARf
    • Leave the first lever in place. Slide the second lever against the outside edge of the rim until one side of the tire is off of the rim.

  8. yDBK3JvuSKAq222J
    • Reattach the the first lever to the other side of the tire and repeat steps 4-7 to remove tire completely from rim.

  9. 3iuLbaUT6gGpxfiZ
    • Push the valve stem upwards through the hole in the rim.

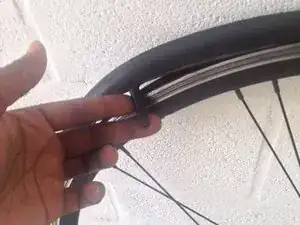

  10. 6yyKJXVyoLxBAHNU
    • Once valve stem is pushed, pull the inner tube until it is completely removed from the rim.

Abschluss

To reassemble your device, follow these instructions in reverse order.
