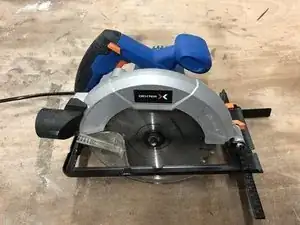

Dexter Corded Circular Saw - 1300CIS2-185.5 Height Adjustment Replacement

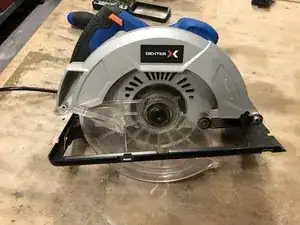

Remove the dust extraction nozzle, blade and edge guide.

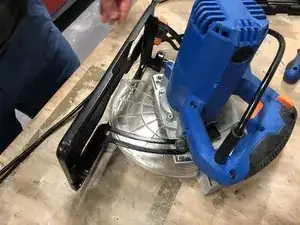

Open wide to free up space for a better work area.

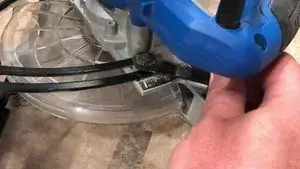

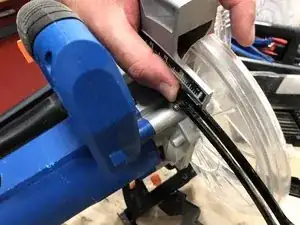

Using a large pat screwdriver, remove the small pin.

Then remove the black rod.

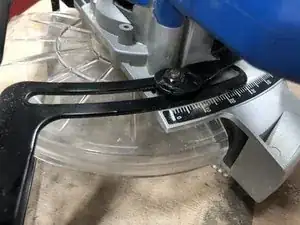

And finally unscrew the nut.

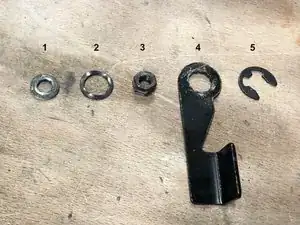

Here is the order of the parts to remove.

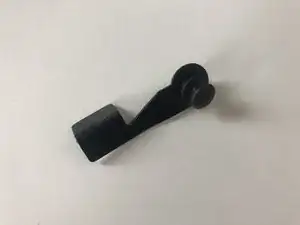

Then we replace the height adjustment.

Finally put each piece back in order.

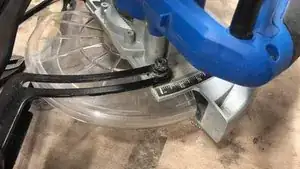

To tighten, simply replace the tray at the bottom and hand tighten the nut.

With the lever, take the nut and put it in the locked position without effort

Replace the blade, edge guide, and extraction bit on the saw.
