Corded Jigsaw Dexter 750W Blade Roller Replacement

Geschrieben von: Céline Chemineau
  • Kommentare: 0
Corded Jigsaw Dexter 750W Blade Roller Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace the blade roller.

  1. djkAINjokqfwHVud

    • Before you begin, remember to disconnect the mains plug.

  2. RJtjlStgr1hqOMal

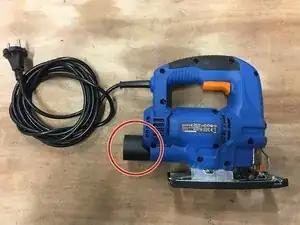

    • Remove the vacuum adapter from the back of the device.

  3. 5keD6fpTATIFE1kH
    5keD6fpTATIFE1kH
    ZHCwCwbA2UCBoy4s

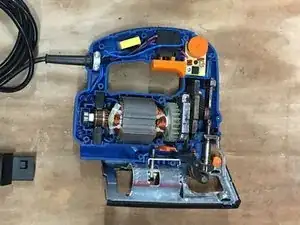

    • Using a screwdriver or screwdriver, unscrew and open the device

    • Unlock the tray by lifting the lever.

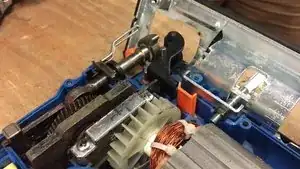

  4. Use pliers to remove the tip.

    • Use pliers to remove the tip.

    • Then remove the rod, still using the pliers.

  5. eulKRc6atiITRXSo
    eulKRc6atiITRXSo
    MSFtYivwIOpbjDuV

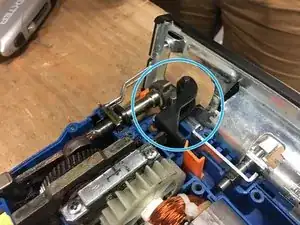

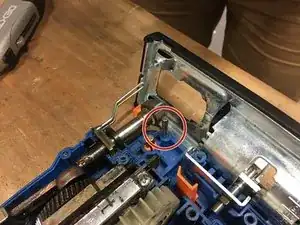

    • Replace the new rod.

    • Then the black tip.

  6. xL6kCBbPO2XQCNEp

    • Close and screw the device.

Abschluss

To reassemble follow the guide through or in reverse.
