Dexter 750W Wired Jigsaw Power Cable Replacement

Geschrieben von: Céline Chemineau
  • Kommentare: 0
Dexter 750W Wired Jigsaw Power Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

5 Minuten

Einleitung

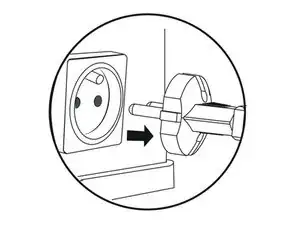

  1. LPn5qtDNP4bTbbHS

    • Before starting, remember to disconnect the outlet from the mains.

  2. NsZOrAULDFLhjpND

    • Remove the vacuum adaptor on the back of the device.

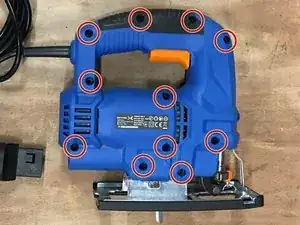

  3. VnPJtMxRsWQZe6JG
    VnPJtMxRsWQZe6JG

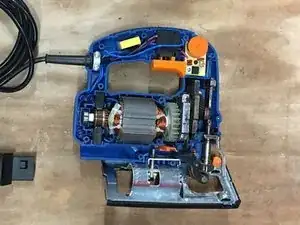

    6SyZBL2QH4siDCH3

    • Using a screwdriver or screwdriver, unscrew and open the device.

    • Unlock the tray by lifting the lever.

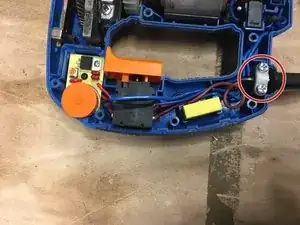

  4. MxcbeqdTpyWQlLCO

    • Remove the two screws to unlock the cable.

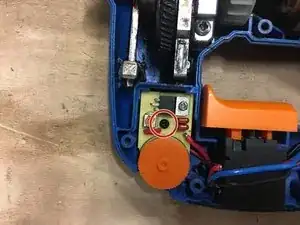

  5. vLITGsDuSONBnFOf

    • Remove the black screw, in order to remove the wheel.

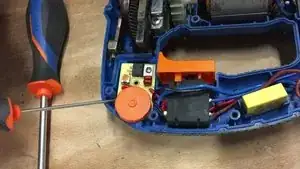

  6. Thanks to a screwdriver, leverage to be able to recover the wheel.

    • Thanks to a screwdriver, leverage to be able to recover the wheel.

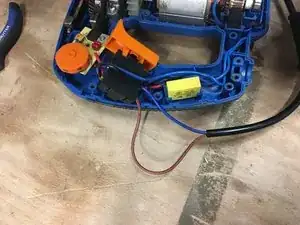

  7. 2OgAbqZmF55h5RwL
    2OgAbqZmF55h5RwL

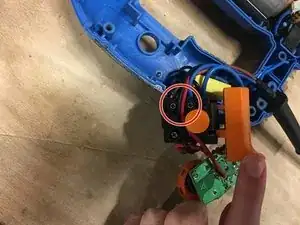

    jVwxgOuDdeqPedaU

    • Turn the switch over.

    • Unscrew the 2 screws to remove the blue and brown cables.

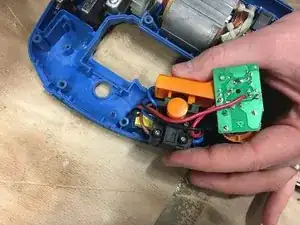

  8. Nxlp6DTSkWUPU1oP

    • Reconnect the new cable.

    • The brown thread must be at the top and the blue thread must be at the bottom.

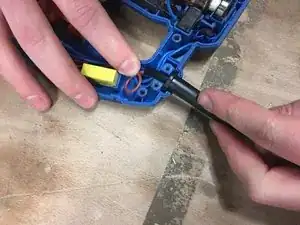

  9. i6F1LYviIVFggZgD
    i6F1LYviIVFggZgD

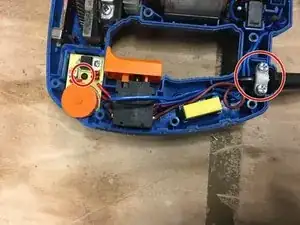

    L4vJmb1XyFmRaSWF

    • Reposition each room in its housing.

    • Then screw each screw.

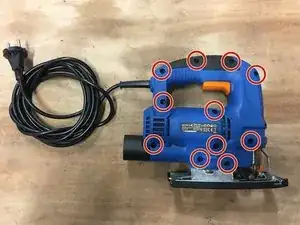

  10. WHxZpIW2JP1Vx1aQ

    • Close and screw the device.
