Dexter 750W Pendular Button Replacement Corded Jigsaw

Geschrieben von: Céline Chemineau
  • Kommentare: 0
Dexter 750W Pendular Button Replacement Corded Jigsaw

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

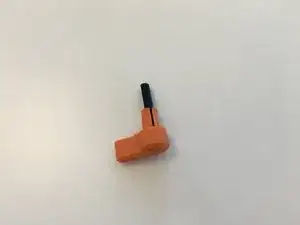

This guide will show you how to replace the pendular button on your tool.

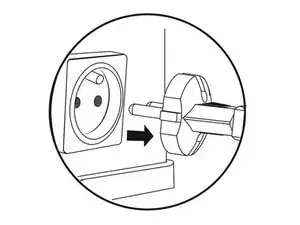

  1. xVb2BuHDEwS12Fjs

    • Before you begin, remember to disconnect the mains plug.

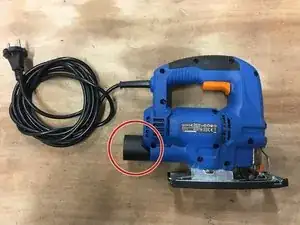

  2. gWTKuPQWVYOpatEU

    • Remove the vacuum adapter from the back of the device.

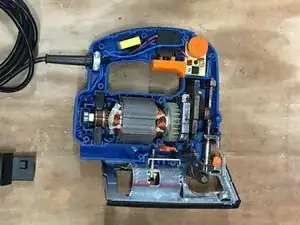

  3. tt5yAa1W2UViWnwL
    tt5yAa1W2UViWnwL
    VYeasTVDYkHfpJuQ

    • Using a screwdriver or screwdriver, unscrew and open the device.

    • Unlock the tray by lifting the lever.

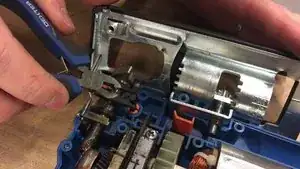

  4. Using pliers remove the blade roller.

    • Using pliers remove the blade roller.

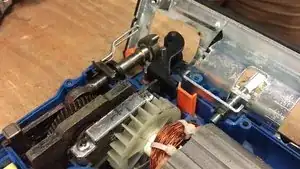

  5. Remove the steel bar and remove the orange button.

    • Remove the steel bar and remove the orange button.

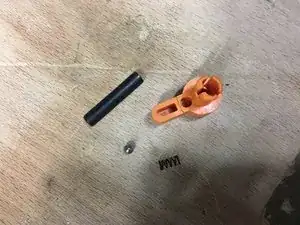

  6. Xx6Y3CAWWfDbWXRx

    • Be careful when removing the orange button not to lose the ball and the spring.

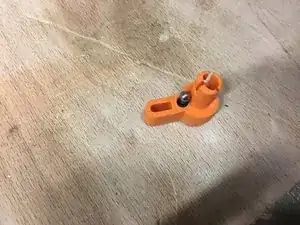

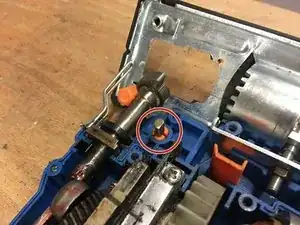

  7. uAnYrjtphNJDJkmo
    uAnYrjtphNJDJkmo
    phVKIjlYTpp5fAQM

    • Replace the ball and spring on the new button.

    • Put it back in the machine.

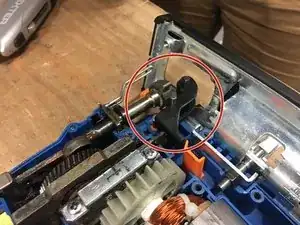

  8. BVjQ5V2pejH2GI63

    • Replace the blade roller.

  9. NZwo5qhOaHVDBBS2

    • Close and screw the device.

Abschluss

To reassemble perform steps in reverse
