Corded Dexter Jigsaw 750 Watts Blade Holder Replacement

Geschrieben von: Céline Chemineau
  • Kommentare: 1
Corded Dexter Jigsaw 750 Watts Blade Holder Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

  1. hXjlRxUpFXfBq3SZ

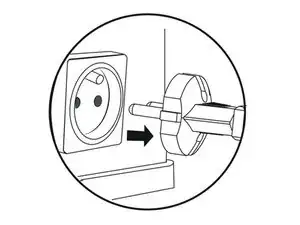

    • Before starting, remember to unplug the device.

  2. qWFEydLlTYeBkEdZ

    • Remove the vacuum hose adapter at the back of the device.

  3. bMiwgBouEdUmq4OM
    bMiwgBouEdUmq4OM
    ARKQJgPdiaXMQdXL

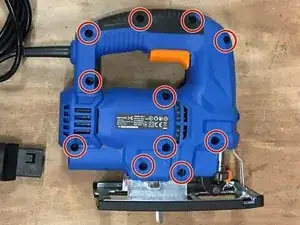

    • With the help of a screwdriver, unscrew and open the device.

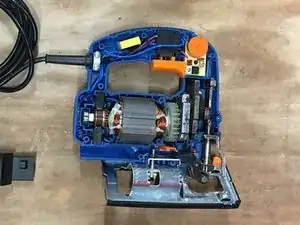

    • Use the lever to unlock the cover.

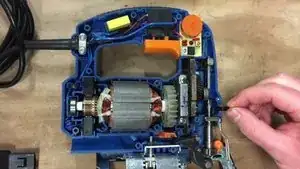

  4. Using pliers, remove the clip beside the blade holder.

    • Using pliers, remove the clip beside the blade holder.

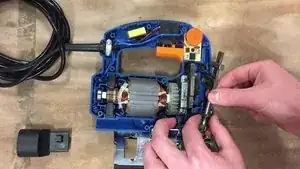

  5. Take off the blade holder, then raise the slide located at the end of the holder.

    • Take off the blade holder, then raise the slide located at the end of the holder.

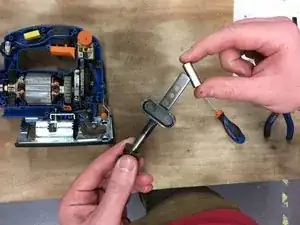

  6. DyJOuJIAjOXSf6Mr

    • First, put the slide onto the new blade bracket.

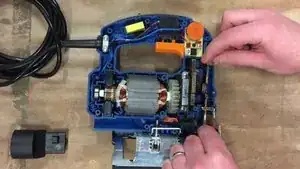

  7. Put the blade bracket back in its place.

    • Put the blade bracket back in its place.

    • Make sure to properly put each piece back in its place.

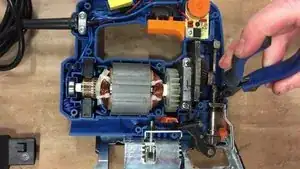

  8. Replace the clip in the same place. The curved side of the clip needs to go into the round side of the bracket.

    • Replace the clip in the same place. The curved side of the clip needs to go into the round side of the bracket.

    • Lubricate.

    • Make sure to properly put each piece back in its place.

  9. d2uGmqhUDNdWJTGJ

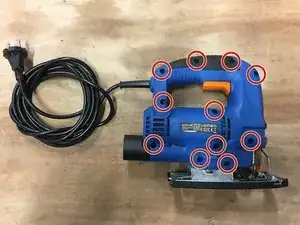

    • Close and screw the device back together.
