Dexter 900W Corded Reciprocating Saw - 900RPS Replacement Power Cable

Geschrieben von: Céline Chemineau
  • Kommentare: 0
Dexter 900W Corded Reciprocating Saw - 900RPS Replacement Power Cable

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

4 Minuten

Einleitung

this guide will show you how to successfully replace the power cable

  1. BFAFHJWpttnNnXBA

    • Before you begin, remember to disconnect the mains plug.

  2. 1Bre5kBoNTyUyMBF
    1Bre5kBoNTyUyMBF
    RS2A6oriLOc1bFkX

    • Unscrew the screws of the hull to open it.

  3. RVnTIRSxReKCTP6X
    RVnTIRSxReKCTP6X
    VZyXa4DBZ1rPcXPK

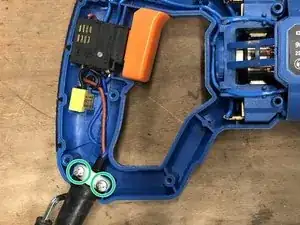

    • Unscrew the cable clamp.

  4. SuHAxxqZxw2ODd4D

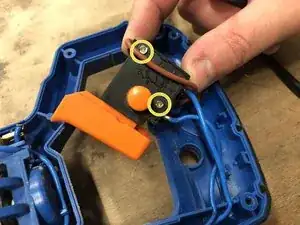

    • Remove the two screws from the switch.

    • Then remove the cable.

  5. RMGFpYYiaUkUFraH
    RMGFpYYiaUkUFraH
    OgMrMJkrJJHqAwwO
    HrKxpG3PIUVjlXko

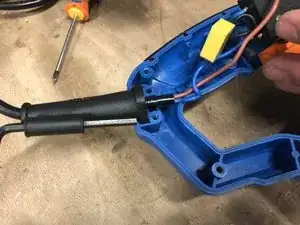

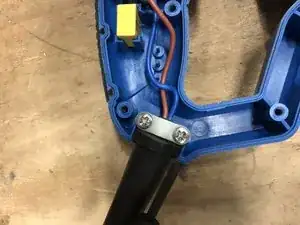

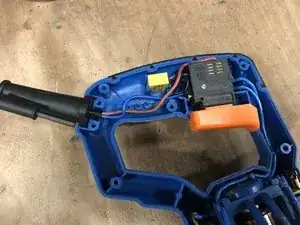

    • Reconnect the new cable to the switch, then tighten the cable clamp.

  6. O1LTGW2rUiLR3bWO
    O1LTGW2rUiLR3bWO
    jMT1pRKpZFdRN1cU

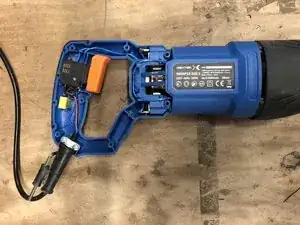

    • Before closing, check that no cable is blocked and that each part is in its place.

    • Then retighten the hull screws.

Abschluss

By the end of the guide you will have successfully replaced your power cable
