Corded Reciprocating Saw Dexter 900W - 900RPS Carbon Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

6 Minuten

Einleitung

This tutorial shows you the change of only one carbon, to change the second you just have to follow the same method.

  1. IbecEC3xMPxmMIKc

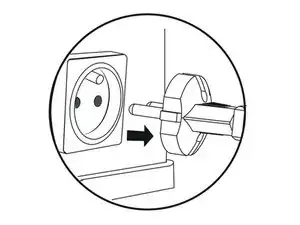

    • Before you begin, remember to disconnect the mains plug.

  2. CHhOHTnQgwZbQaam
    CHhOHTnQgwZbQaam
    cgvE1ZAQlKi6JZnO

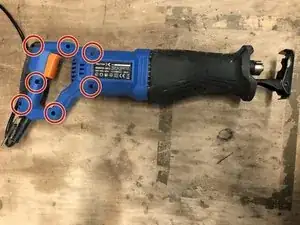

    • Unscrew the screws of the hull to open it.

  3. awdZQN6KqHSkgU2O
    awdZQN6KqHSkgU2O
    LOFlvyA5goEISbnX
    T4aMHnRUWaA3FxBk

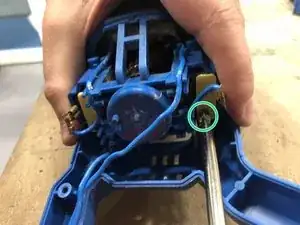

    • Using a screwdriver, unscrew the place where the carbon is located in order to extract it.

  4. nAZvwAm4SmvQi1pe

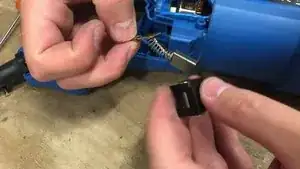

    • Take the carbon out of the carbon holder.

  5. With pliers disconnect the carbon.

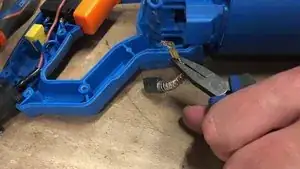

    • With pliers disconnect the carbon.

  6. Then reconnect the new carbon.

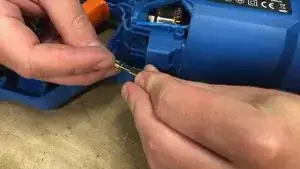

    • Then reconnect the new carbon.

  7. Replace it in the carbon holder.

    • Replace it in the carbon holder.

  8. AXqMfpWBR3KcPBfs

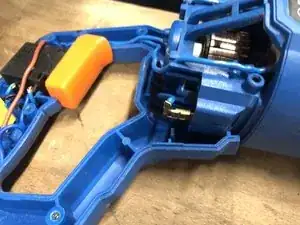

    • And finally put it back in its housing.

  9. oDaa2eUK4QKUIOWA
    oDaa2eUK4QKUIOWA
    CQeH2Glxg2Ox5CBH

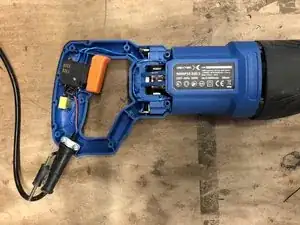

    • Before closing, check that no cable is blocked and that each part is in its place.

    • Then retighten the hull screws.

Abschluss

To reassemble perform steps in reverse.
