Dexter UP20 Jigsaw Metal Tray Replacement

Geschrieben von: Slava Korchmar
  • Kommentare: 0
Dexter UP20 Jigsaw Metal Tray Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

  1. Remove the battery. Loosen the metal tray of the device.

    • Remove the battery. Loosen the metal tray of the device.

  2. Remove the screws from the body of the device.

    • Remove the screws from the body of the device.

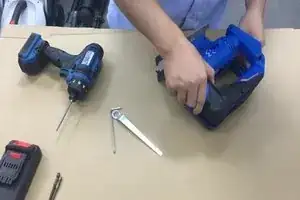

  3. Remove the cover of the device to gain access to the interior.

    • Remove the cover of the device to gain access to the interior.

  4. Put the switch next to the device. Remove the motor.

    • Put the switch next to the device. Remove the motor.

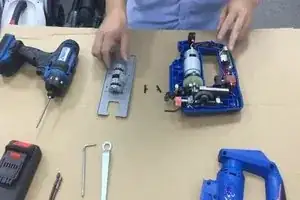

  5. Remove the body from the device. Remove the metal tray. Pay attention to the small screws that hold it.

    • Remove the body from the device. Remove the metal tray. Pay attention to the small screws that hold it.

  6. To reassemble your device, follow the instructions in reverse order.

    • To reassemble your device, follow the instructions in reverse order.

Abschluss

To reassemble your device, follow the instructions in reverse order.
