Einleitung
A guide to remove the Top Cover of the Sega Dreamcast.
Werkzeuge
-
-

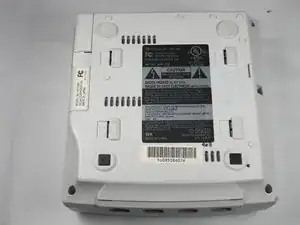

Flip the console over on its back.
-

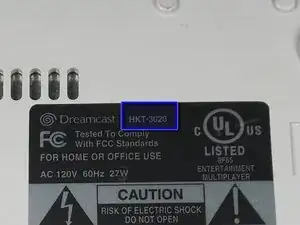

Take note of your model number, in case replacement parts are needed.
-
-
-

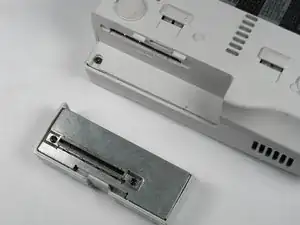

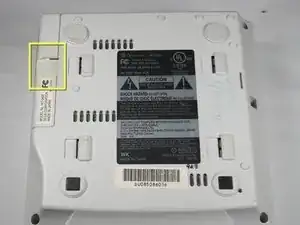

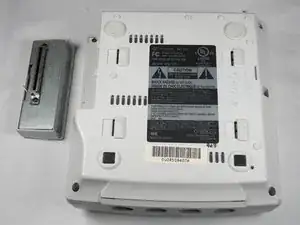

Remove the expansion bay by applying pressure to the small clip on the expansion bay while prying it away from the console.
-
-
-

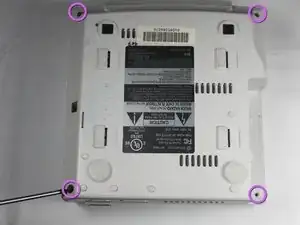

Locate and remove all four black 12mm Phillips #02 screws from the underside of the console.
-
-
-
Turn the console right side up.
-

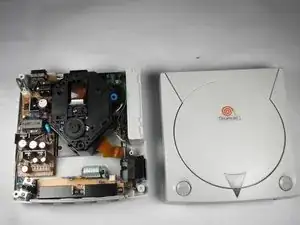

Remove the top cover by gently lifting the upper portion of the console.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
