Sega Game Gear Headphone Jack/Volume Wheel Replacement

Geschrieben von: Brandon Page
  • Kommentare: 4
Sega Game Gear Headphone Jack/Volume Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

Guide to replace the small logic board that contains the 3.5mm headphone jack as well as the volume wheel.

  1. GE4hFNKZvRP6LuIs

    • Place your device upside down and locate the two battery compartments.

  2. wk6apkXh6aBe4Fko

    • Press on the tabs at the bottom of the battery covers then lift up to remove.

    • Remove batteries if they are present.

  3. ZwWPJlkOVdRUkrHt

    • Remove the following screws:

    • Six Phillips screws

    • One 4.5 mm Gamebit screw

    It says remove 7 Philips screws, the picture shows 6 but one is incorrect.

    The thread below the label has no screw, but there is another one in the other battery compartment.

    The hole below the label is for a security bolt when stores put them on display.

    rs.beast -

    The screw hole in the bottom center is for the PowerBack. Also there are not 7 screws there are only 6

    Electrohacker -

  4. qlQqEHOHMsAt4FhO

    • Use tweezers to take all other screws out.

  5. MObZFuW56bTkQXfc
    MObZFuW56bTkQXfc
    ZREuCW4S2LlsMYJq

    • Gently open the case by unfolding it over the top of the Sega Game Gear.

    • Do not pull the back of the case away, as cables are connected between both sides.

  6. InIEN2SBlf6QdGoL
    InIEN2SBlf6QdGoL
    XAkFtNnNMUEqTGp2
    YPTXrRwwN3ol62RE

    • Carefully unplug the 2 white-tipped connectors on the top cover.

    Il faut aussi débrancher le connecteur du haut parleur (2 broches, en haut à droite).

    Arnaud Melun -

    There is a third cable on the right side of the top half in this picture which is the speaker. Unplug that too.

    Electrohacker -

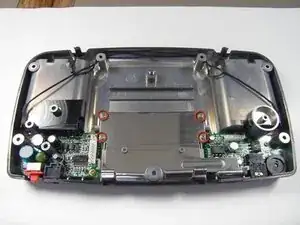

  7. 2HJ5hZjaNcIOKQ5S
    2HJ5hZjaNcIOKQ5S
    UkvUmAaXEMP1f1JW

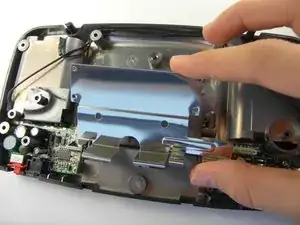

    • Unscrew the screws to remove the metal covering.

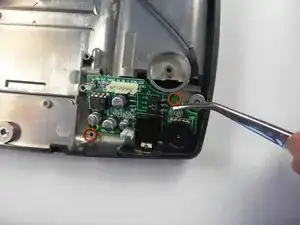

  8. YFWcF1kBJWWyky6m

    • The screws that need to be removed are missing from this picture.

    • Remove the two screws from the highlighted locations.

Abschluss

To reassemble your device, follow these instructions in reverse order.
