Sega Genesis Motherboard Replacement

Geschrieben von: Erik Bjornstrom
  • Kommentare: 0
Sega Genesis Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. lW54ikSVnq4KmSq3

    • Remove the six screws from the underside of the console with a Phillips #1 screwdriver.

  2. MLFiOdPgBoRqk1KA

    • Flip the Sega Genesis upright.

  3. HKXYLvGvcYhQnPuf

    • Gently lift the top casing.

    • Note: the case will be connected to the main board by LED wires.

  4. LcxoJ4RWNK5fHMVY

    • Bend out the LED leads into vertical positions.

  5. TFQoTpYHAYOpPmnf

    • Slide the LED wire apparatus off the lead pins.

    • Note: observe which color wire corresponds with which length of pin.

  6. yjpZlChAPxVmPjZy

    • Separate the main board from the outer case.

  7. oTyRFDT316Ejo2YS

    • Remove single black screw from the outside of the bottom cover, using a Philips screwdriver.

  8. XhT4UqyJtGZHWWBe

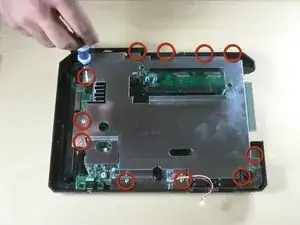

    • Using a Philips screwdriver, remove 11 screws securing silver casing.

  9. d4b2WDgGTu2ssCUi

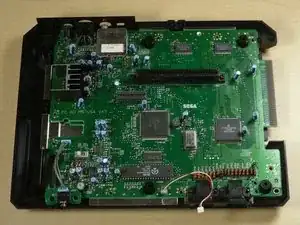

    • Remove silver case.

  10. TMKXPnUPciNTPxoP

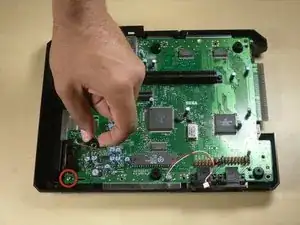

    • Remove single golden screw on motherboard using Philips screwdriver.

    • Note: Push headphone jack to the side.

  11. 3UVNpSfgudGLVCVC

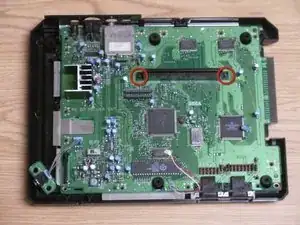

    • Remove two black screws on the left and right sides of the cartridge slot.

  12. LDPYptXUL2YN2PMT

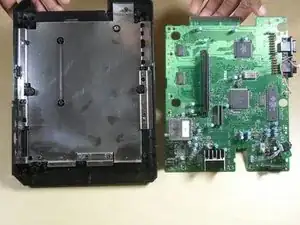

    • Remove motherboard.

  13. SrtUIQ4flBTtjLVf

    • Re-install new motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
