Sega Genesis Outer Case Replacement

Geschrieben von: Erik Bjornstrom
  • Kommentare: 0
Sega Genesis Outer Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This repair guide will take you through all the steps for removing the outer case of the Sega Genesis.

  1. lW54ikSVnq4KmSq3

    • Remove the six screws from the underside of the console with a Phillips #1 screwdriver.

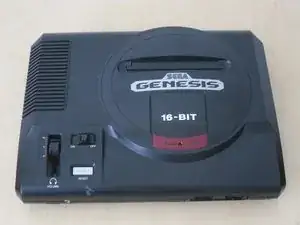

  2. MLFiOdPgBoRqk1KA

    • Flip the Sega Genesis upright.

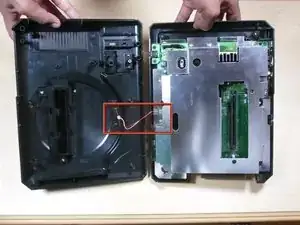

  3. HKXYLvGvcYhQnPuf

    • Gently lift the top casing.

    • Note: the case will be connected to the main board by LED wires.

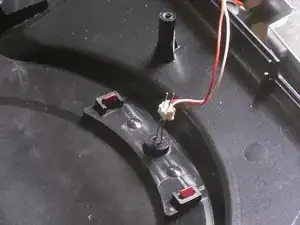

  4. LcxoJ4RWNK5fHMVY

    • Bend out the LED leads into vertical positions.

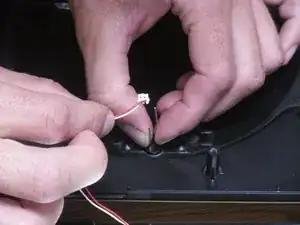

  5. TFQoTpYHAYOpPmnf

    • Slide the LED wire apparatus off the lead pins.

    • Note: observe which color wire corresponds with which length of pin.

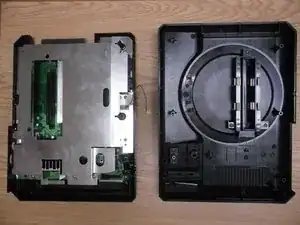

  6. yjpZlChAPxVmPjZy

    • Separate the main board from the outer case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
