Sega Master System Model 2 Disassembly

Geschrieben von: Krisow
  • Kommentare: 3
Sega Master System Model 2 Disassembly

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

In this guide we dissassemble the Sega Master System II

  1. UGVHV3VaYRL1LINr

    • Take out the 5 screws at the bottom

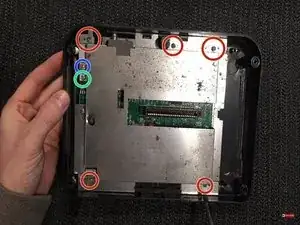

  2. kMQYKtRcpxqq1d3g

    • Remove the 5 screws (3 at the back and 2 on the front)

    • Remove the screw at the side (this screws is different then the other 5 so remember to put them away from the other 5 screws since they are similar)

    • This screw is for the rf shield under for the voltage regulator under this bigger rf shield, its not needed to remove that screw

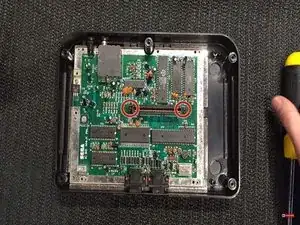

  3. 4NIAQHGdVYa1NwXI

    • Remove the 2 screws thats holding the cartridge slot down

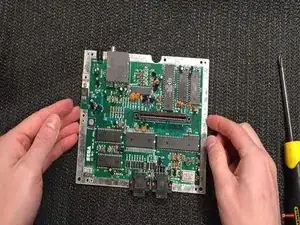

  4. tshTgU5BlO6hB4dP

    • Congratulations! You have opened your Sega Master System Model 2!

Abschluss

To reassemble your device, follow these instructions in reverse order.

Screenshots taken from a video by Global Garage
