Segway Ninebot Max Front Tire Repacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 - 30 Minuten

Einleitung

Unfortunately, changing a flat tire on a Segway Ninebot Max is a tough task.

Electric scooters are machines, and they, like other vehicles need servicing and maintenance to ensure they run smoothly for a long time.

If you need to replace the front tire of your Segway Ninebot Max scooter follow this guide.

  1. LTdEbEgWXaTGtMqu
    LTdEbEgWXaTGtMqu

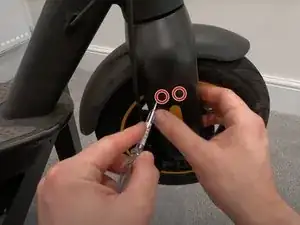

    1dY6WMEDQCNIQilm
    Y2OkUCmpLHLFsLBh

    • Before beginning the guide make sure the scooter is off and placed on a stand or table for easier access to work on.

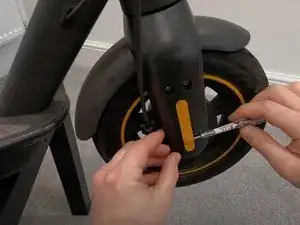

    • Remove the cap and reflection tag using a slotted screwdriver.

  2. hZmqkOWONrwcs6Gd
    hZmqkOWONrwcs6Gd

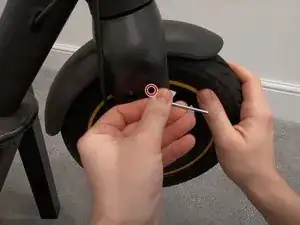

    WIlE4VbhHS6OPIV5

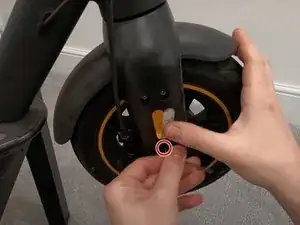

    V3LVqW3bueGUjxdE

    • Use 3 mm Allen key to loosen three hexagon screws from each side of the wheel.

  3. rcvwWscpZGkOEjlQ
    rcvwWscpZGkOEjlQ

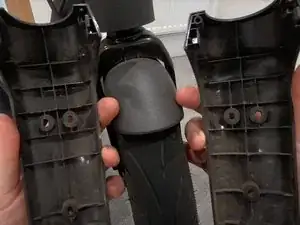

    thE6rcDkoaFDS5qw

    • Snap the covers away from the scooter from both sides.

    • Remove the covers slowly and steadily to avoid breaking it.

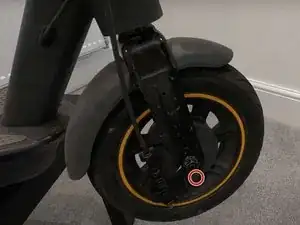

  4. HVrUNBRcEVqchhOH
    HVrUNBRcEVqchhOH

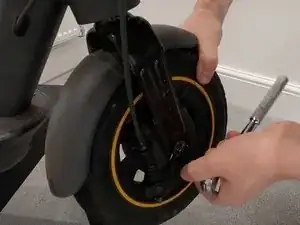

    kYt2wVLbGDXoFFeq

    • To detach the brake, use a 10 mm Allen wrench to remove the bolt from the tire that is attached with the brake.

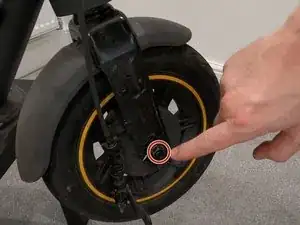

  5. tOFHkcft1jA3ZaCJ
    tOFHkcft1jA3ZaCJ
    dGJD42cTD2hBQVRG

    • Use a 15 mm socket wrench to remove 15mm bolt from the tire of the scooter on both sides of the front wheel.

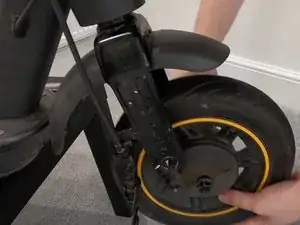

  6. yFGgJTfoQxhFKhYs

    • Pull down the tire and remove it from the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
