Hoverboard Bluetooth Remote Control Replacement

Geschrieben von: Smilzo
  • Kommentare: 4
Hoverboard Bluetooth Remote Control Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

Use this guide to replace the Bluetooth remote control of a Hoverboard.

Be careful! A soldering iron is used in this guide, so take the necessary precautions before starting

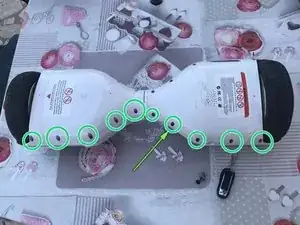

  1. nKHCY5dDTJROSGml

    • Remove the 10 screws with a Phillips screwdriver to access the inside of the hoverboard.

    • The electronic circuit boards are mirrored on both sides, so examine them both to determine which has the Bluetooth setup.

  2. OlLnNIwG3EAUvEI5

    • Unhook the lighting and indicator light wires to remove the cover.

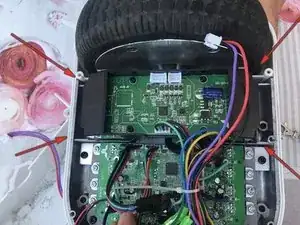

  3. IJmIpWomjaMF1BQh

    • Remove the 4 screws that hold the circuit board support.

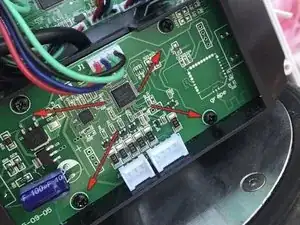

  4. frThJOwkSxpMDOO6

    • Remove the 4 screws that secure the board to the support.

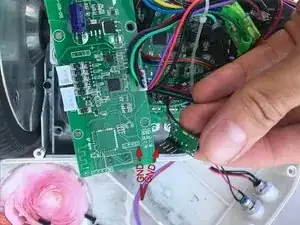

  5. lcVvhKQudkwD2gkw

    • Remember the sequence of wires to be soldered on the Bluetooth board.

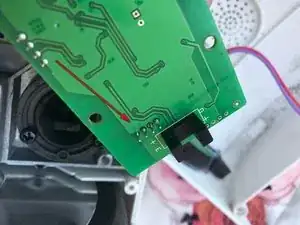

  6. LeQERKeLXT1Yvqfk

    • Use a soldering iron to affix the 4 pins of the Bluetooth board onto the hoverboard board

    • Before soldering the boards, check the functionality of the Bluetooth board by merely inserting the pins, which is enough.

Abschluss

To reassemble your device, Follow these instructions in reverse order.
