Shark Cordless Pet Perfect Battery Replacement

Geschrieben von: Ashley Calkins
  • Kommentare: 10
Shark Cordless Pet Perfect Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 Minuten

Einleitung

If you are having a problem with your device's Battery, Here is a step by step guide to replace a dead or faulty Battery.

  1. BowRknZMjL1CKYCs
    BowRknZMjL1CKYCs
    GnkqkSfGooCSKCOA
    SKaBANsoIHFNGitH

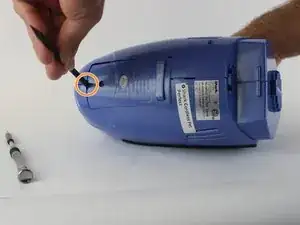

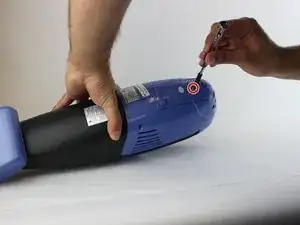

    • Remove the Dust Cap Container then remove the 7.5mm screw (with the PH2 Bit) from the battery cover.

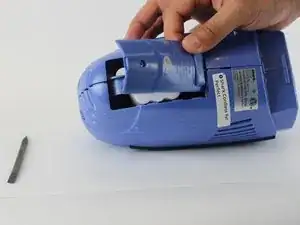

    • Using a black spudger pry open the cover, and remove the cover plate.

  2. NRGLGYPIibW1cQVv
    NRGLGYPIibW1cQVv
    ARAqWTjNsZhVFB45

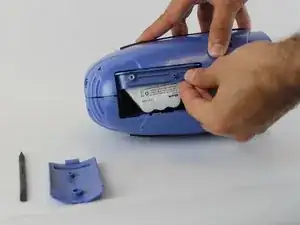

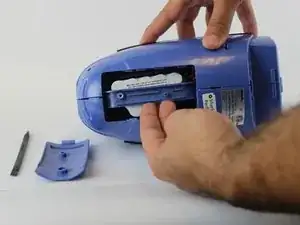

    • Once the battery cover is removed slide the battery mount upwards and pull it out.

  3. aDcoinJXitUGdQrN
    aDcoinJXitUGdQrN
    FBDCJyqmUZaEHfO2
    EjZL2jKAKM3HeYVi

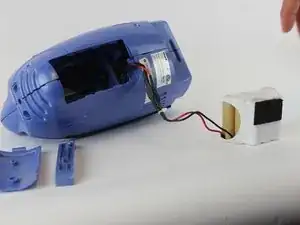

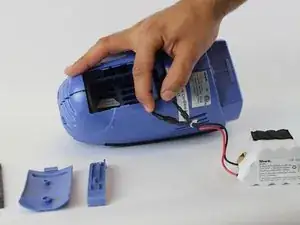

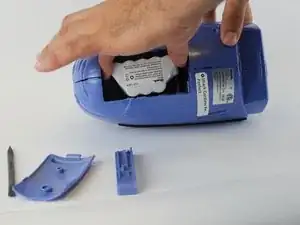

    • Pull out the battery and then disconnect the battery at the quick disconnects.

    A small battery has come out from somewhere....it's not even an inch long...where does it go...I have not had the vaccum long at all...the second time I used it I had a rattle..opened it up and this small battery fell out..please show me where it goes...

    Clair Guarisco Giordano -

    How do you disconnect “quick” connect battery prongs. They seem to be covered in black plastic

    Kathie Pitschi -

    Green light go off after charging 24 hours but does not come on. What's the problem with it?

    samuel brown -

    Have a shark sv780-n cordlessvacuum cleaner that doesn't work. Is it the battery that needs to be changed?

    samuel brown -

    The instructions are incomplete. No information on what a “quick disconnect” is or how to perform this critical step. Also no information on how to reconnect a new battery. Great photos but embarrassingly incomplete directions - I’m guessing the author doesn’t know how to do anything but the obvious stuff either. I figured out everything else on my own so this was not even remotely helpful.

    JaDa Lo -

    Ditto — Can’t “unplug” the Old battery; so how can I do that first and THEN plug in the New one?

    John Hoyt -

Abschluss

To reassemble your device, follow these instructions in reverse order.
