Shark Cordless Pet Perfect Front Motor Replacement

Geschrieben von: Ashley Calkins

Kommentare: 5

Shark Cordless Pet Perfect Front Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

25 - 45 Minuten

Einleitung

If you are having a problem with your device's Front motor, Here is a Step by step guide to replace a faulty or broken Front motor.

Werkzeuge

Schritt 1

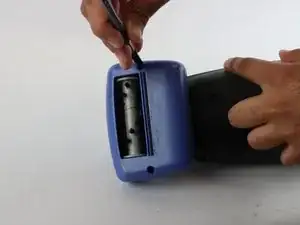

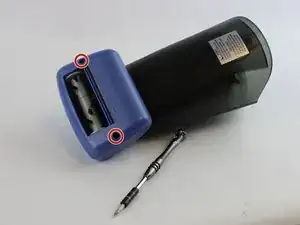

Remove the two 12mm screws from the front face plate with the PH2 bit from the tool kit.

Schritt 2

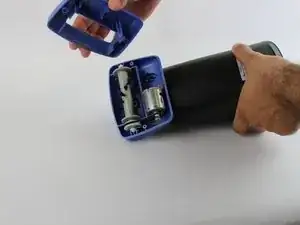

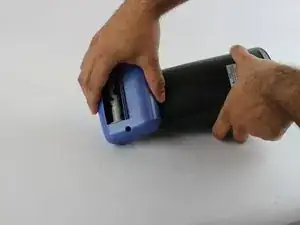

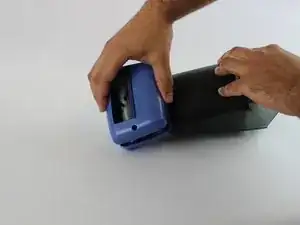

Once the screws are removed pull the front face plate off. This will allow access to the belt and motor.

Schritt 3

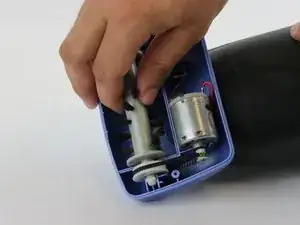

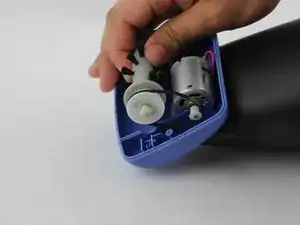

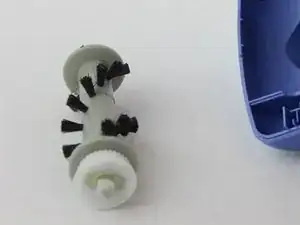

Lift the brush roller upwards towards you, and the brush roller should come out along with the belt.

Schritt 4

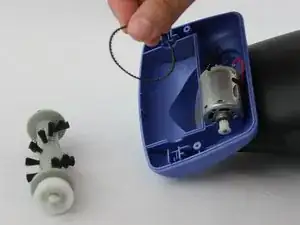

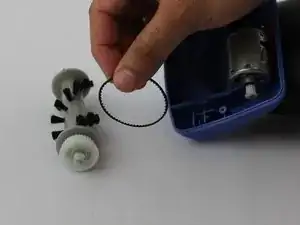

Remove the belt from the motor mount, and then replace with a new belt.
