Shark DuoClean Powered Lift-Away Speed Drive Antriebsriemen-Austausch

Geschrieben von: Catie Halvorsen
  • Kommentare: 50
Shark DuoClean Powered Lift-Away Speed Drive Antriebsriemen-Austausch

Schwierigkeitsgrad

Mittel

Schritte

10

Zeitaufwand

1 Stunde

Einleitung

Wenn der Antriebsriemen verrutscht ist oder klemmt, verwende diese Anleitung, um den Antriebsriemen zu ersetzen. Du benötigst die Torx-Schraubendreher T10 und T20.

  1. 3jfTQNRWcAWBTHRc
    3jfTQNRWcAWBTHRc
    Tr2vNpfwRyNZibJc
    2mIRhLjOm2l3WVKl

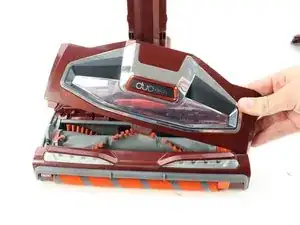

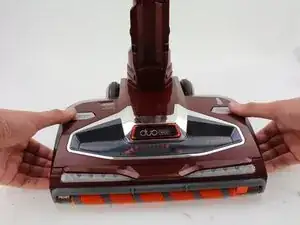

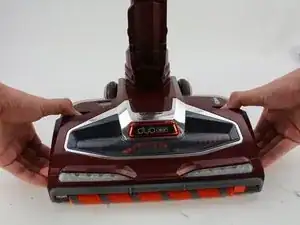

    • Drücke die beiden Tasten zum Lösen der Bürstenrolle gleichzeitig, bis sich die Abdeckung öffnet.

    • Hebe die Abdeckung nach oben ab.

    Where can I buy belt drive replacement assembly,,

    Mike Abdoo -

  2. VfTsRyDBqWbKdYIs
    VfTsRyDBqWbKdYIs
    PYjGhJPMAOnXTyYf

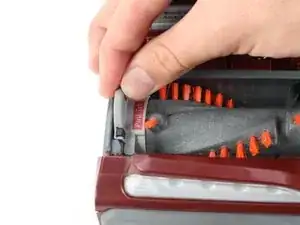

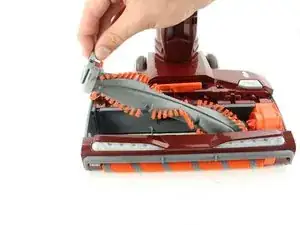

    • Ziehe die Lasche hoch und entferne die große Bürstenrolle.

    what if my model doesn’t have a pull tab

    Michael Szabo -

  3. 2WQ3ENNHsZUcGHSL
    2WQ3ENNHsZUcGHSL
    Ct5J6DpePjv61IMU

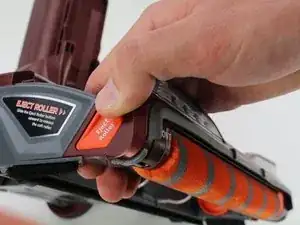

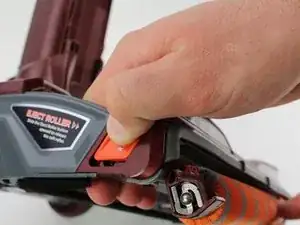

    • Drücke die Auswurftaste, bis sich die kleine Rolle löst.

    • Ziehe die Rolle vom Staubsauger weg heraus.

    I can’t find any pull tab to pull out big rollet

    doxielady2000 -

    Hola nesecito comprar toda esta parte

    mariagarcia355 -

    hello… no tab to pull, this is not right, my belt broke and cant figure it out.. how do i change belt?

    Linda Del Toro -

  4. RmKHtBavbxDfTfWv
    RmKHtBavbxDfTfWv
    YvaqHiy2VHDIgL6J

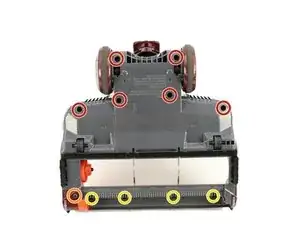

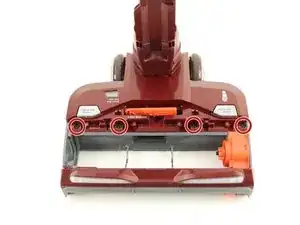

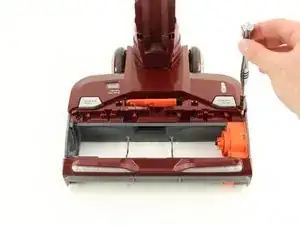

    • Benutze den T20 Schraubendreher, um die vier 17 mm Schrauben gegen den Uhrzeigersinn herauszudrehen.

  5. YiakoBoTjOJvZwrU
    YiakoBoTjOJvZwrU
    DIEVeMyihZuo2dCC

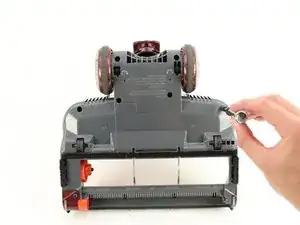

    • Benutze den T20 Schraubendreher, um die sechs 19 mm Schrauben gegen den Uhrzeigersinn herauszudrehen.

    • Benutze den T20 Schraubendreher, um die eine 12 mm Schraube gegen den Uhrzeigersinn herauszudrehen.

    • Benutze den T10 Schraubendreher, um die vier 14 mm Schrauben gegen den Uhrzeigersinn herauszudrehen.

    For the 12mm screw, use the T10, not the T20.

    Drew@-!3 -

    The 12mm screw on my model has a Torx Security head. Thanks for that, Shark. Never again

    Graeme Thompson -

  6. mtnyKCKRQFwN2NLu
    mtnyKCKRQFwN2NLu
    jPVAAU6ZThTBMtYV
    jjdgMvjDQudaXHxd

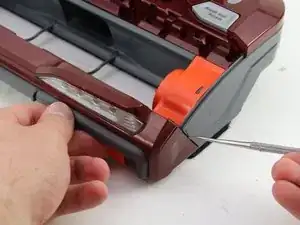

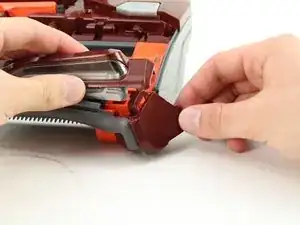

    • Verwendeeinen Spudger, um die rote Kunststoffeckkappe abzuhebeln.

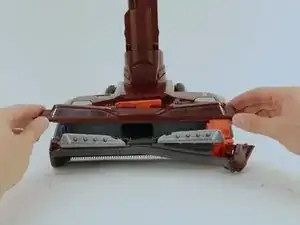

    • Entferne das Gehäuse der LED-Lampe, indem du gleichzeitig am Gehäuse nach oben und an der Eckkappe nach außen ziehst.

  7. mnLDNY3K23xSK6Wm

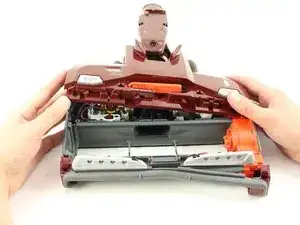

    • Entferne die rote Abdeckung, indem du sie nach oben abhebst.

  8. VSHwYwdvJQoOZub1

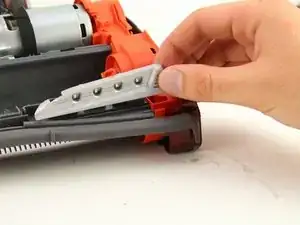

    • Entferne die Leuchtenhalterung, indem du sie hochziehst.

  9. rvvPbbcGnNfQuJDR
    rvvPbbcGnNfQuJDR
    pTQYLGCq6t3A2Vij

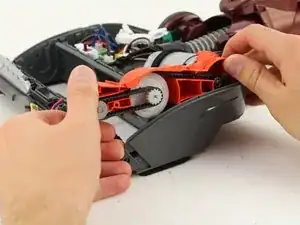

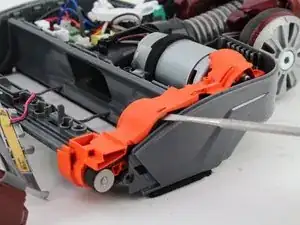

    • Verwende den Spudger, um das orangefarbene Antriebsriemenfach vom Vakuum zu lösen.

    • Entferne das orangefarbene Antriebsriemenfach aus dem Staubsauger, indem du es nach oben hebst.

    Before you try and level out the orange belt drive compartment, there’s a little T10 screw that you’ll need to take out first.

    Drew@-!3 -

  10. uCYaIx2KguQTBDEp

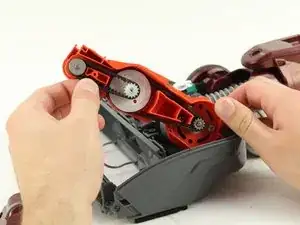

    • Ziehe den größeren Antriebsriemen nach außen, um ihn zu entfernen.

    • Der kleinere Antriebsriemen muss zuerst entfernt werden, um den zweiten größeren Riemen zu entfernen.

    You need to make a correction…the T20 that you specify to use is incorrect. I just bought a Husky T30, T25, T20, T15 and T10 Torx Screwdriver Set and where you indicate to use a T20, it's actually a T15. Not only is this an issue, another issue is that the screws on this vacuum has a raised dot in the center of it, or however you would call it which creates a problem to even seat the screwdriver in properly to turn. If you have another suggestion or different screwdrivers to use, I'm open to suggestions.

    Lisa R Rowley -

    This is ridiculous! Why do you have to dissect a vacuum to change a simple belt? Also, why is every vacuum made have a belt in a store but this one you have to order. I love my Shark Duo but this is

    Dana Liggins -

    I agree with the comments about the misinformation about the T20 it is the T15 screwdriver and there is a tiny pip in the bottom of the screw hole. I had to get a set of screwdrivers which had the hole allowing the driver to fit correctly in the screwhole. My problem is how to replace a broken belt in my Shark duoclean flexology HV390UK model, I’ve checked the how to utube site but there’s no mention of this model. Frustrating or what

    royjacklin -

    You could disassemble a space craft in less time. Unbelievably frustrating that they would use screws with a nipple in the center, that would prevent the driver from fully sitting in the head. T15 as stated in the above comments, not a T20. Just an absolute nightmare to work with. Managed to get all but two screws out, (cracked the plastic) and oddly enough, this unit is equally as difficult to put back together. Still not sure of the issue. Belts are fine, but brush still won't spin. Great vacuum, but now I have PTSD from trying to fix it. Thanks

    Jerry Sparkes -

    I have the nv803 model and Shark claims this vacuum has lifetime belts that NEVER need changing so they've made it nearly impossible to do so by using the torx security screws and not making the belts widely available. The nv800 series is so powerful it will suck a lightweight rug right up. In my case it ended up cracking the wheel that spins the brushroll. I haven't disassembled it yet but I know that wheel has the plastic brushroll gear on the other side so maybe it has broken some of the teeth off of the gear in addition to cracking the wheel on my unit. Anyway, when any amount of pressure is put on the brushroll it stops spinning. From what I've found in researching this, Shark has solved the problem with the newer duoclean models by putting in an automatic stop sensor. If anything gets lodged in the brushrolls, it shuts down the roller gears until you clear the brushroll & softroll. I'm also finding it impossible to get a new or used gear to repair my unit or a whole nozzle to replace it.

    KLRnZane -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge diesen Anweisungen in umgekehrter Reihenfolge.
