Shark Flex DuoClean Drive Belt Replacement

Geschrieben von: Christian Fuller
  • Kommentare: 10
Shark Flex DuoClean Drive Belt Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

8 Minuten

Einleitung

This repair may be necessary if the brush roll is not spinning. The belt is tight on the roll and may require some force to remove it.

  1. OTotc1BW1BuNABlm
    OTotc1BW1BuNABlm
    dEmbNd4ZkBJH6RGf

    • Open the garage door by sliding both of the release buttons away from you.

    • Lift off the garage door.

  2. LhQCDWh5s3xGQ1HK
    LhQCDWh5s3xGQ1HK
    DX2wX23HBOFnJq64

    • Remove the plastic screw covering using a metal spudger by pushing the sharp side into the crevice and prying the cover out.

  3. WWx2UIU6EuURFHwx
    WWx2UIU6EuURFHwx
    o4BH3LgOGsJYYaO4

    • Turn the T10 Security Torx screwdriver counterclockwise to remove the 15mm screw.

    I know it is absolutely essential to have a security bit on here to change the belt as you wouldn't want anyone accidently changing it.

    Deb Winters -

  4. FPTmsSwjZgykC2gN

    • Use the iFixit Opening Tool to pry the side of the vacuum open.

  5. kMgeIBnm6mSHKold

    • Remove the side component with your hands.

  6. 5LkURb1Mogs2Zro2
    5LkURb1Mogs2Zro2
    UZKHj1tEbrXDkmAr

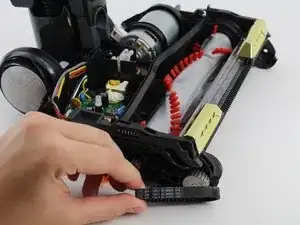

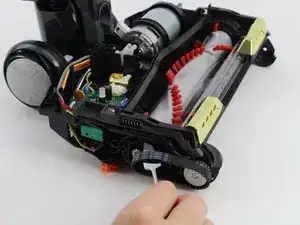

    • Remove old the belt from the two gears by prying it off using the metal spudger.

    • The new belt will be very tight and difficult to put back on. In order to reinstall, start with the belt on one gear, then slowly rotate the other gear, pushing on the belt and allowing it to catch the teeth.

  7. UjLTD4fWRmxZScaI

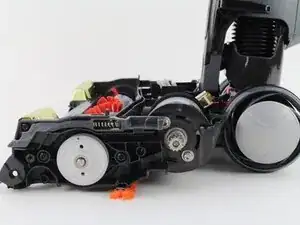

    • Repeat on the other side of the vacuum.

    what size of belt on this side?

    Juan Palafox -

Abschluss

To reassemble your device, follow these instructions in reverse order.
