Shark Flex DuoClean Power Cord Replacement

Geschrieben von: caoimhe
  • Kommentare: 1
Shark Flex DuoClean Power Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Wire cutting and soldering may be required for more info on soldering visit the iFixit soldering guide.

  1. DUsODRrPO11MRsPp
    DUsODRrPO11MRsPp
    AXERlkuiTVDVtyuo

    • Squeeze Dust Cup release buttons on either side of the component.

    • Pull up to release Dust Cup.

  2. hAQ2ZF6pfaQPtWQY
    hAQ2ZF6pfaQPtWQY
    shZZIjNAynoX1AYC

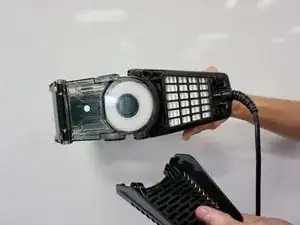

    • Remove the pre-motor filter with your hands.

  3. shvcsk1tWfmUBq5Y

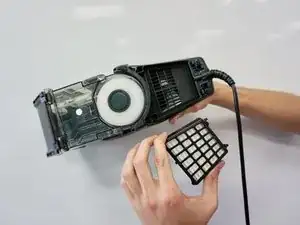

    • Remove the post-motor filter.

  4. omuT3fUFIZa1A35Y

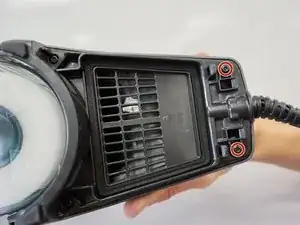

    • Remove the two 15 mm screws by twisting counterclockwise with the T10 Torx screwdriver.

  5. tPdJCuoQXPXU5OXX
    tPdJCuoQXPXU5OXX
    CPwpiJhnwrZodFKg

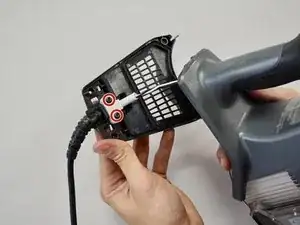

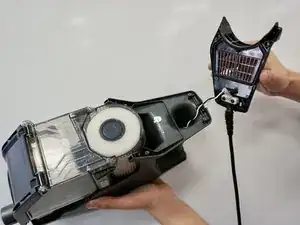

    • Remove the two 12 mm screws by twisting counterclockwise with the T15 Torx screwdriver.

    • To fully remove the power cord, cut the wires using a wire cutter.

    • For reassembly, use the soldering guide in the Introduction.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

caoimhe

Mitglied seit: 08/10/18

931 Reputation

Ein Kommentar

I found with further dissasembly, uncrimping and recrimping the wiring loom saved having to add more connections.
