Shark Flex DuoClean Suction Motor Replacement

Geschrieben von: Christian Fuller
  • Kommentare: 1
Shark Flex DuoClean Suction Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

Following this guide requires cutting wires and soldering. For more information on soldering visit the soldering guide.

  1. DUsODRrPO11MRsPp
    DUsODRrPO11MRsPp
    AXERlkuiTVDVtyuo

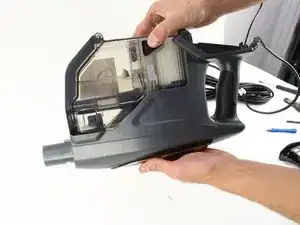

    • Squeeze Dust Cup release buttons on either side of the component.

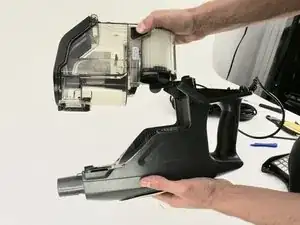

    • Pull up to release Dust Cup.

  2. n4wHBPEAiGU5CWyP

    • Remove the five 15 mm screws by twisting counterclockwise with a T10 Torx screwdriver.

  3. K1MYoHAY2Yi5RC3f

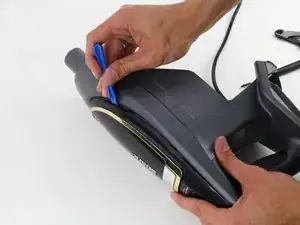

    • Use the iFixit opening tool to remove the top component.

  4. M1mKc3UgP6STDYbY

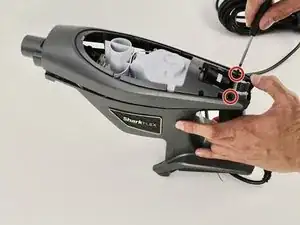

    • Remove the two 15mm screws by twisting counterclockwise using the T10 Torx screwdriver.

  5. sOUJrNl1mZhOIlwD

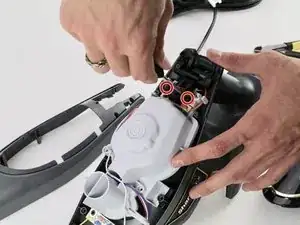

    • Remove the two 15 mm screws by twisting counterclockwise with a T10 Torx screwdriver.

  6. RmbhOLkYe6TUe6bN

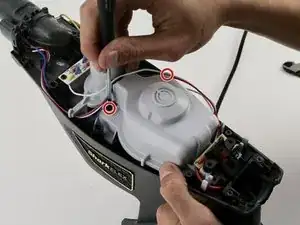

    • Remove the two 15 mm screws holding the motor cover by twisting counterclockwise with a T10 Torx screwdriver.

  7. eOoC3VHa1KkZAIme

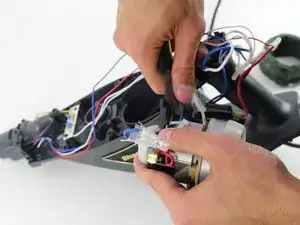

    • Cut the zip ties holding the motor using the wire cutter.

  8. fxF6kSCl2waa5Qns

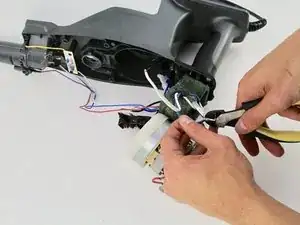

    • Cut the wires using the wire cutters to completely remove the motor.

    • For reassembly, use the soldering guide in the Introduction.

Abschluss

To reassemble your device, follow these instructions in reverse order.
