Shark ION Robot S87 Drive Wheel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

If your Shark ION Robot S87 has problems getting around, then you may need some new drive wheels. This guide will show you how to replace the wheels, and get it cleaning again.

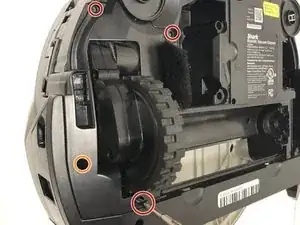

  1. 2loTwZWWl53yG3mY
    2loTwZWWl53yG3mY

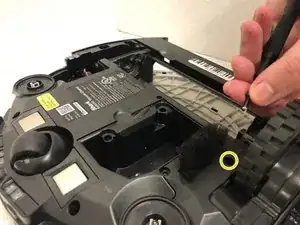

    ZcrGPdVCnxNOdvIS

    • Make sure device is turned off before attempting this replacement.

    • Remove three 13mm screws using a T15 Torx screwdriver.

    • Remove one 15mm screw using a Phillips #1 screwdriver.

    • Remove one final 15mm Phillips #1 screw.

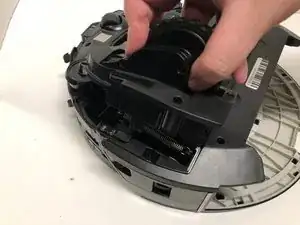

  2. uVDUXXOuyFvhHD6K

    • Carefully lift the wheel assembly out of the housing, making sure not to damage its connecting wire.

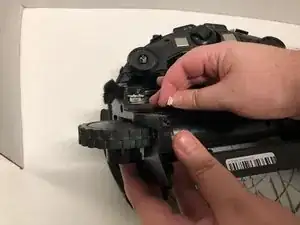

  3. rN1UDtGQZYUSdrQU

    • Disconnect the wire carefully from the wheel assembly by pinching and pulling away from it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
