Shark Navigator Freestyle SV1106 Roller Belt Replacement

Geschrieben von: Zachary Liu
  • Kommentare: 20
Shark Navigator Freestyle SV1106 Roller Belt Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

When the roller belt has snapped or your vacuum's roller brush is not spinning, you should look into replacing your roller belt.

  1. 32HPTgfAIOc5yfDa

    • Turn the device over to reveal the bottom of the motorized brush head.

  2. 2vJcSlST6RNiKmVh
    2vJcSlST6RNiKmVh
    VVwfhc6WhMH1qfqA

    • Slide the latch next to the panel upwards into the unlocked position.

  3. SPMKsEHGMLBx4wDr

    • Slide the panel to the right to reveal the battery.

  4. Sp6ZJORXWXAVxvrr
    Sp6ZJORXWXAVxvrr
    to5dZgH5ZBiNKqnS

    • Pull the battery from the vacuum.

  5. Q1nP2p2r54GWDgMT
    Q1nP2p2r54GWDgMT
    U1BylfQKBoYVhuWA

    • Disconnect the battery from the vacuum by pinching the white latch and pulling the two pieces apart.

  6. jNVdRyMyD66rBmUi
    jNVdRyMyD66rBmUi
    OFJEcB4PR1lWsPhs
    OJXqSUSZQpqVSskD

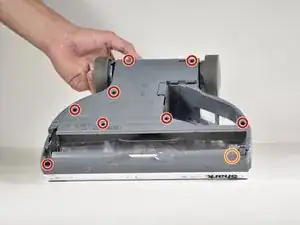

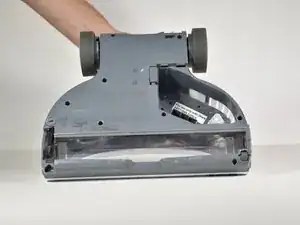

    • Remove the eight 25.4 mm Phillips #1 screws holding the bottom panel to the vacuum.

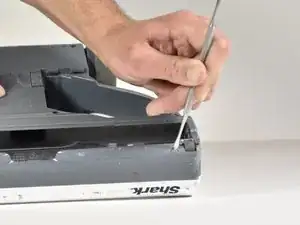

    • Use the metal spudger to remove the plastic plug to reveal a 12.4 mm Phillips #1 screw and remove it.

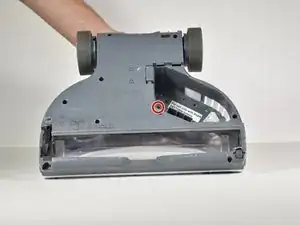

  7. laVxlaDj4EysPSPu

    • Remove the final 25.4 mm Phillips #1 screw inside the battery compartment.

  8. pMHKLOQjtYkLXJAJ
    pMHKLOQjtYkLXJAJ
    65AvdUoYnLKIRBKJ
    5QLTSUnZNySUGVuT

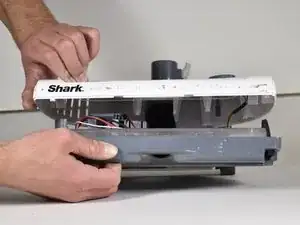

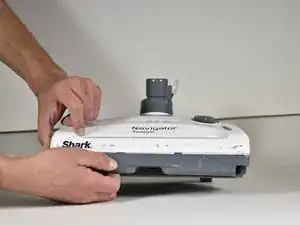

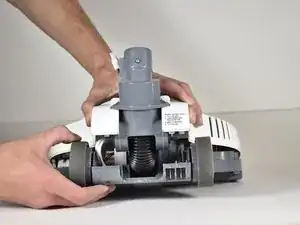

    • Remove the bottom panel from the vacuum by pressing to release the latches at the front and pulling the bottom panel away from the vacuum.

  9. pQkW1wvNYpPbmlb6
    pQkW1wvNYpPbmlb6
    cUqqVsBwFfmfXgYO
    6IyyYhRipVNZBt1v

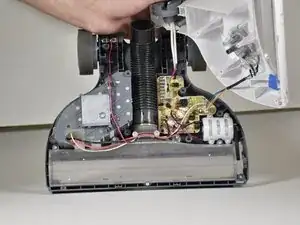

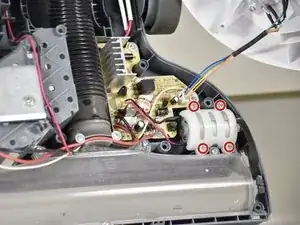

    • Remove the 12.2 mm Phillips #1 screws holding the motor in place and remove the motor by pulling directly upwards.

  10. iI2Ql1Vt1Otru6vs
    iI2Ql1Vt1Otru6vs
    M6bNVsQpBWM4wOyU

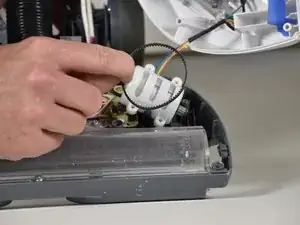

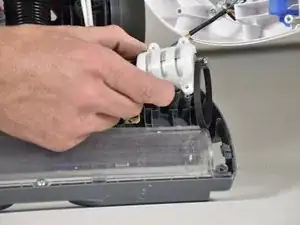

    • Remove the belt by sliding it off the end of the motor.

    are you &&^&^$^ kidding?????????????????

    i'm 85 will never buy a shark product again

    Jeri Piotrowski -

Abschluss

To reassemble your device, follow these instructions in reverse order.
