Shark Navigator Freestyle SV1106 Roller Brush Replacement

Geschrieben von: Zachary Liu
  • Kommentare: 5
Shark Navigator Freestyle SV1106 Roller Brush Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

4 Minuten

Einleitung

If your roller brush is not working even after removing surrounding debris, it is time to replace the roller brush.

Werkzeuge

  1. ItNYRcBTHITi4pPq
    ItNYRcBTHITi4pPq
    vqFCHRugBd5kvSWx

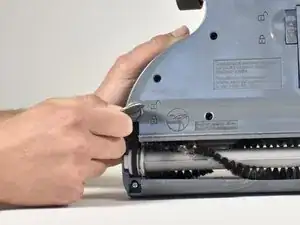

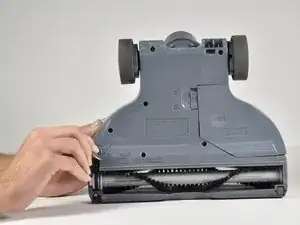

    • Remove the black rubber band from the roller brush

    • In most models there will be a plastic cover over the rubber band. You will use the quarter to twist the latch and take off the cover

    Hello,I've lost the black band cover . Is it possible to get a replacement please ? Such a small part but i cant use my vacuume cleaner with out it

    karencarter055 -

    I've lost mine as well did you ever find one I can find tons of battery covers which would be harder to lose than this little band cover but can't find one please help

    Rick Warfel -

  2. ZqgRXcxfG3tSD1nM
    ZqgRXcxfG3tSD1nM
    R4vNvGMKYOdHYfID
    XXmrpf6Ru4SDResh

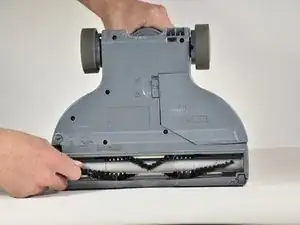

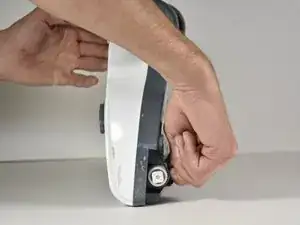

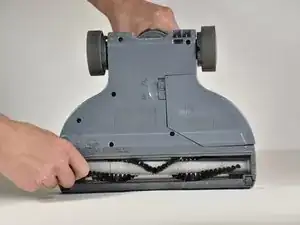

    • Use the bristles to pull the end of the brush that was connected to the belt away from the vacuum.

  3. a1v1iFF4BUxwU6Ua
    a1v1iFF4BUxwU6Ua
    YV3xhYPLHn2qAjWV
    mTCVQGQ1nwBXsrLO

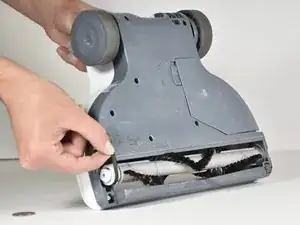

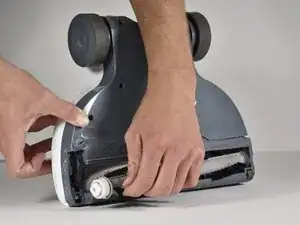

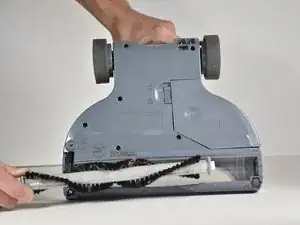

    • Slide the roller belt off of the roller brush and pull the roller away from the motorized brush.

Abschluss

To reassemble your device, follow these instructions in reverse order.
