Shark Navigator Lift-Away Deluxe NV360 Motherboard Replacement

Geschrieben von: Elena Postupalskaya
  • Kommentare: 17
Shark Navigator Lift-Away Deluxe NV360 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

20

Zeitaufwand

40 Minuten

Einleitung

The roller brush and motor need to be removed in order to replce the motherboard. Soldering would be needed for reassembly.

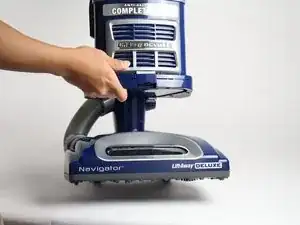

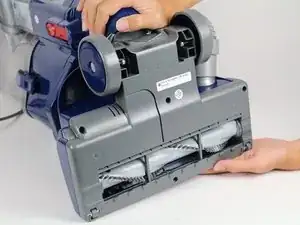

  1. C23GJKWV5pQJ3dum
    C23GJKWV5pQJ3dum
    cwFGVNES4IJ3UnST

    • Lay the vacuum down by hand and locate the roller brush underneath the vacuum cleaner.

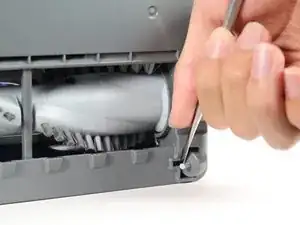

  2. NctVF1ZHQPiEIOUe
    NctVF1ZHQPiEIOUe
    eS42mLm14EDpm3uT
    gsIZVY3lshFZmwRR

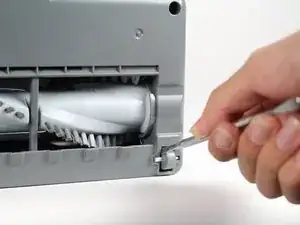

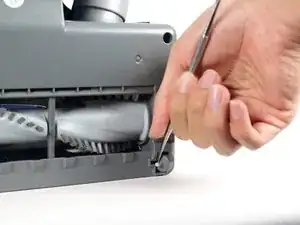

    • Insert the metal spudger between the inside side of the wheel and the plastic body.

    • Push the metal spudger away from you to pop the wheels out.

    • Repeat the step to remove the other wheel on the other side.

  3. GJNp4FCvXgre2Ihl

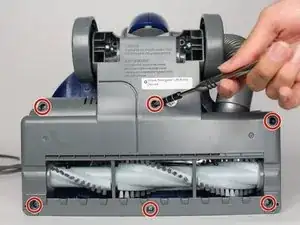

    • Remove the six 15mm screws using the PH1 screwdriver.

    There are also 2 screws up near the top of the picture past the wheels. Note, there are 2 wheel screws as well, but you don’t need to remove those. You want the 2 deepest screws at very top. Also note, the top left most screw circled in the picture above is the only screw longer than all the rest because of the design.

    Bryan Hawkins -

    I have these as well. Reading the same in the comments was reassuring! You can see the holes in the photo where the screws are missing from.

    Andrew Reed -

    Mine has tore security screws with the pins in the center.

    sval229 -

    I had to remove 10 screws before Step 5 worked for me. But it’s fixed! Gratifying.

    Janet -

    Before you start check the screw heads, on ours they were TR20 Torx Security.
    As well as two extra screws hiding up near the main wheels.

    LordGarrey -

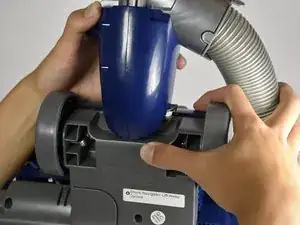

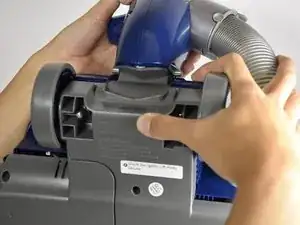

  4. Zi5ESTB1XL6VKRBp
    Zi5ESTB1XL6VKRBp
    PCrjuGktMrgKEQuP

    • Move the blue fulcrum connecting the bottom and the main body of the vacuum cleaner back and forth to loosen up crevice between the two halves of the roller brush enclosure.

    The separation is not occurring with multiple tries to the point of stressing the plastic.

    Bob -

    All 6 screws removed

    Bob -

    I'm having the same problem, all 6 screws removed and I cannot get the pieces apart without breaking the plastic, feels like there is something else holding the two parts together behind the main wheels

    Brock Josephson -

    There are two more screws down in the back below the wheel assembly that have to be removed as well because I also roughed up my plastic before taking them out and then it came right apart.

    Pam Osterhoudt -

    What Pam said. There are 2 extra screws behind the wheels, next to the other 2 screws at the back of the housing.

    Enzo the Baker -

    Shark may make a good vacuum, but I don't know if I will buy one again or suggest for anyone to buy one. When they make routine replacements so hard

    hdarnell15@yahoo.com -

    Amen, darnell.

    IVAN BJELOPERA -

    Plus, the clip that keeps the top lid of the debris collecter closed also has to bear the full weight of the appliance when it is picked up by the handle that is part of the lid. The clip is much too flimsy to do that often and breaks easily. POOR DESIGN‼️‼️‼️and POOR ENGINEERING but good news for the replacement parts profit center. 😾🤔🤬🤥👹👎🏻👎🏻👎🏻

    Unique username -

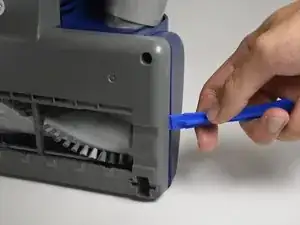

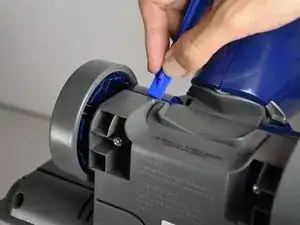

  5. Hj2VFUJbJCdB6TdX
    Hj2VFUJbJCdB6TdX
    tY3HYtQ622HXZPTx
    uTE6yEHqQlsdVR1y

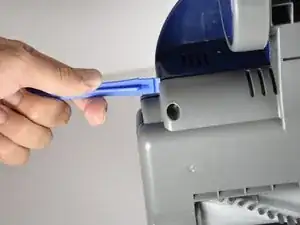

    • Insert the plastic opening tool into the crevice between the blue and the dark grey plastic frames enclosing the roller brush.

    • Apply an outward force throughout and all around the gap in order to separate the two plastic frames.

    I did not find it necessary to pry the pieces apart, but your experience may very.

    Bryan Hawkins -

    I cannot get the grey frame to separate. It seems stuck around the wheel area. All other areas are separated. I am afraid I will crack the 'plastic if I apply any force. Any thoughts?

    Mary T Sullivan -

    Did you remove all 10 screws? Yes, there are a lot more than 6.

    IVAN BJELOPERA -

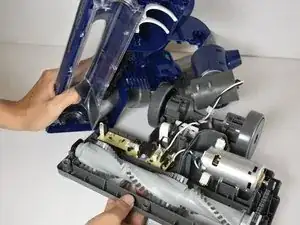

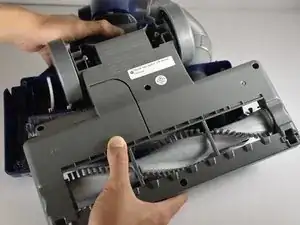

  6. INYoWbURyZHBT4au
    INYoWbURyZHBT4au
    mrFFlRq4oWXFnUSC

    • Lift the grey frame off the bottom of the vacuum cleaner with your hands and place it on a flat surface.

  7. CgVaCEYKUfdTwkds
    CgVaCEYKUfdTwkds
    UMGFgdSNnQS22OSj
    EI44BKkwIOwsUCIy

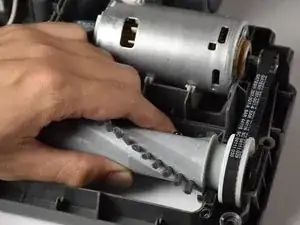

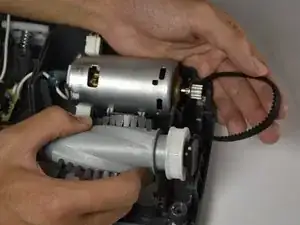

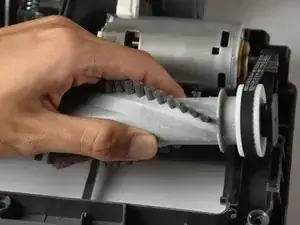

    • Lift the roller brush slightly upwards using your hand.

    • Take one side of the black roller brush belt off by pulling it over the end of the roller brush with your other hand.

  8. WB1BoUGaJMGgQFHG

    • Remove the roller brush belt with your hands by sliding it of the end of the motor.

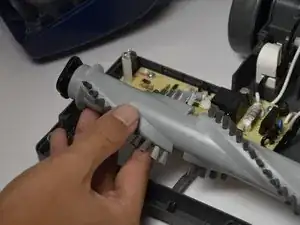

  9. qkKRahayngZikPqW
    qkKRahayngZikPqW
    WZHI1SKTo1iLADeg

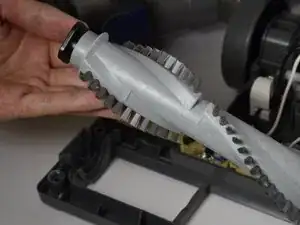

    • Remove the roller brush from the plastic frame using your hands by lifting it away.

    Excellent! I should have followed your steps BEFORE I almost broke it!

    Laura Fisher -

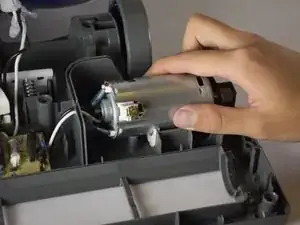

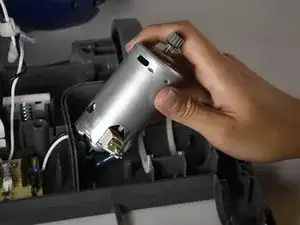

  10. Bv4ONCCBLC2YmH6Z
    Bv4ONCCBLC2YmH6Z
    GQvRag2H2MPNobBb

    • Lift the roller brush motor up and away from its half-cylindrical holder with your hand.

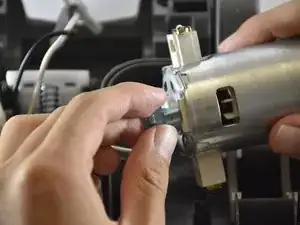

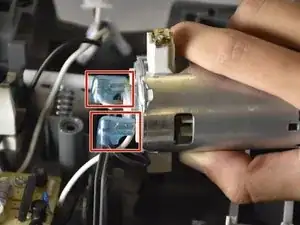

  11. oeTG2WVOUSIEhg2g
    oeTG2WVOUSIEhg2g
    fvguLNPFjMqMXSto
    bGYT5FRZA3x2OxLa

    • Locate the two connectors coming out of the roller brush motor.

    • Pinch and pull the blue plastic insulation down the wire and away from the motor until the metal connectors are fully exposed.

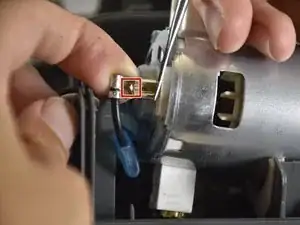

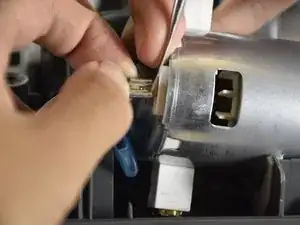

  12. qoxHyKiDICD3s2F2
    qoxHyKiDICD3s2F2
    abDaLFlPobFICxLX
    bXXJKUAoBLKEoJtD

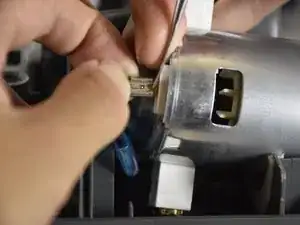

    • Locate the protrusion near the connection between the metal and wire.

    • Push down on the protrusion with your finger and push the metal connector away from the motor with the metal spudger.

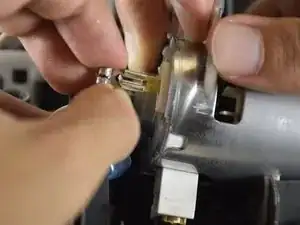

  13. 4uHQIVKoPk2sGDmV
    4uHQIVKoPk2sGDmV
    DHV2tS3hjQnpjN1Z
    4ZbI5RYdpWJXDx6A

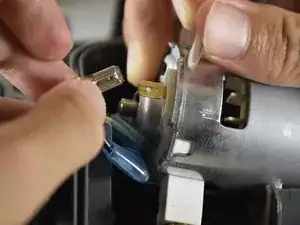

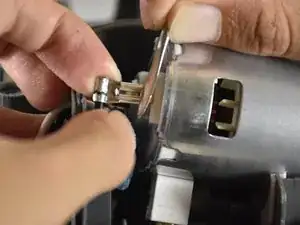

    • Continue to push on the connector away from the motor with the metal spudger until it is disconnected completely.

    • Repeat the steps 12-14 for the other wire.

  14. iOop2Zrf6hilbHXO

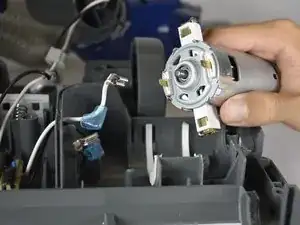

    • Take the motor out and away from the motorized floor brush compartment by hand.

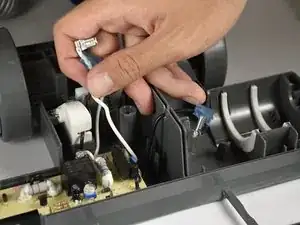

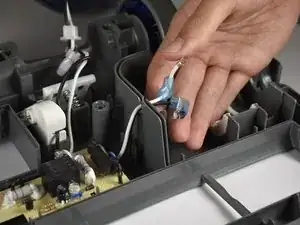

  15. RALWcVLjSqsfCUNg
    RALWcVLjSqsfCUNg
    fqHRlXO5uR3qHFKR
    MB6GVbfZRr2PypMP

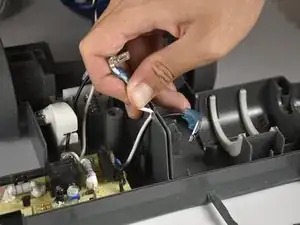

    • Locate the two wires that were connected to the roller brush motor.

    • Remove the white wire from the pass-through hole in the divider of the motorized floor brush compartment.

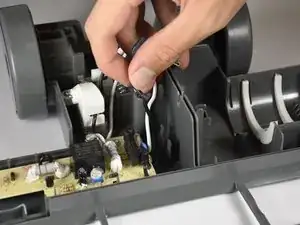

  16. AfrsDUYBOKJlil1E
    AfrsDUYBOKJlil1E
    iROyhrChAyvPMGHK

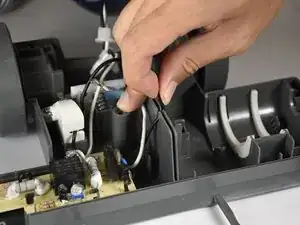

    • Remove the black wire from the pass-through hole in the divider of the motorized floor brush compartment.

  17. U5rB6dCUIjpxKYc3

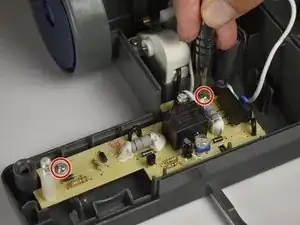

    • Locate and remove the two 10mm screws on the motherboard with the PH1 screwdriver.

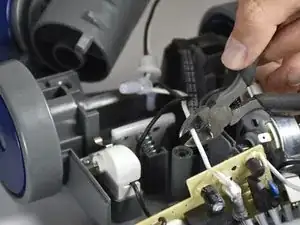

  18. gJfiIOAAnMf1xJGf

    • Cut the white wire from the motherboard with wire cutters.

    • Solder the wire connection back together during reassembly.

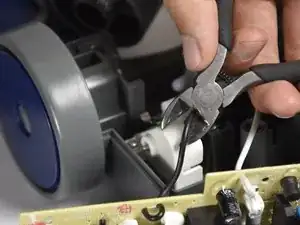

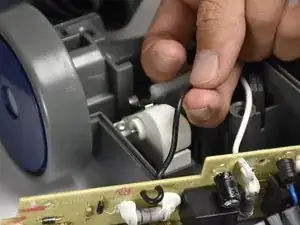

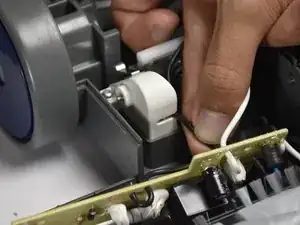

  19. VHtqImiejWXbT1aT
    VHtqImiejWXbT1aT
    GSZAXa3ypEUDBlgC
    WCTeFKKaBMEbXTSs

    • Pull the black wire out of the white holder with a pass-through slot using your hands.

    • Cut the black wire from the motherboard with the wire cutters.

    • Solder the wire connection back together during reassembly.

  20. S1jkHlnG2Qy5SIV2

    • Remove the motherboard by lifting it away from the motorized floor brush compartment with your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
