The foam and felt filters need to be removed first in order to replace the power button. Replacing the power button might help solve issues with the vacuum not turning on or the roller brush not spinning.

  1. oYKQvEIcfxBMTEwI

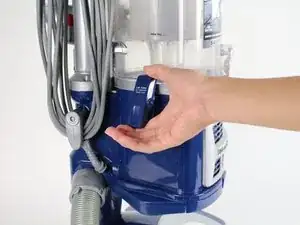

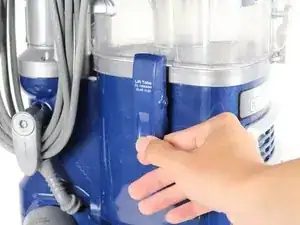

    • Locate the latches on the side of the dust cup, the clear plastic chamber in the center of the vacuum.

  2. qMonU5ocHbi3KKBP
    qMonU5ocHbi3KKBP
    xKA1uNAT5gvNGt34
    wE5ZtgA5SlaEDGaU

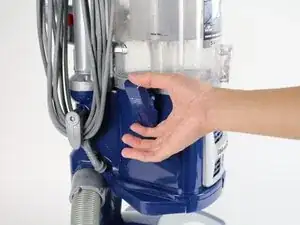

    • Pull the bottom of the latch with your hand in an upward direction.

    • Lift the top of the latch up and away from the dust cup using your hand.

    • Repeat the above steps with the latch on the other side of the dust cup.

  3. CFRCkKEcmnLvSfZe
    CFRCkKEcmnLvSfZe
    orVBofSYRHMxdoBO

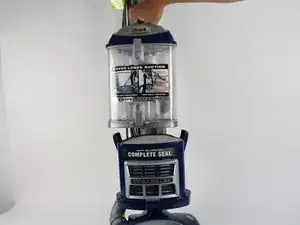

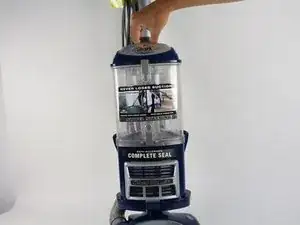

    • Lift the dust cup up and away by its handle on the top with your hands.

  4. wlki4ZwRHZBVhEwy
    wlki4ZwRHZBVhEwy
    ATGM2NYcabORQNHw
    UKYwVT1FedvXYRWG

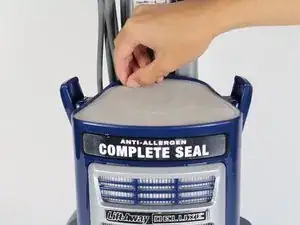

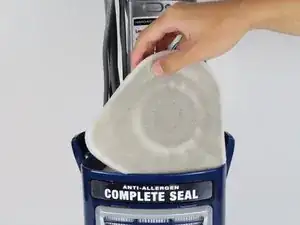

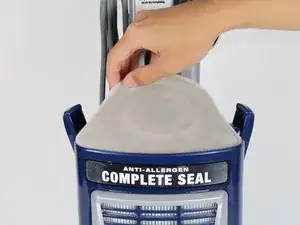

    • Lift the foam filter up, out, and away with your hands.

  5. QFHFHj5i2XXDhGvm
    QFHFHj5i2XXDhGvm
    1na1iC1QXWC1dtPW
    mvcQOwFgpnVQPNqR

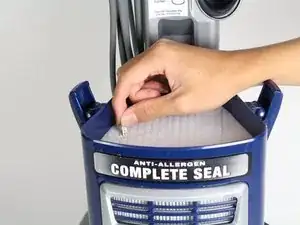

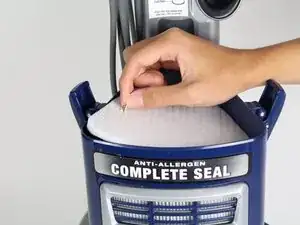

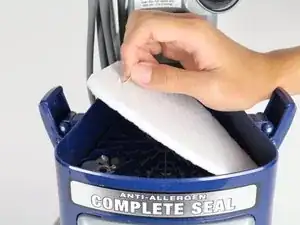

    • Lift the felt filter up, out, and away with your hands by the tab on the top.

  6. TrRoQqavZOpn4alP
    TrRoQqavZOpn4alP
    thuXUix6CriPLoK2

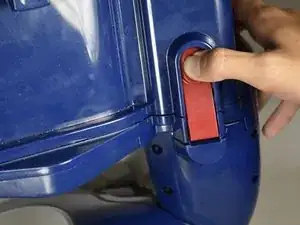

    • Locate the red latch on the side of the vacuum cleaner.

    • Push the circular region of the latch with your finger.

  7. yFAZNQfDwGCVW6rv
    yFAZNQfDwGCVW6rv
    VULdKrB11DXD2lcp

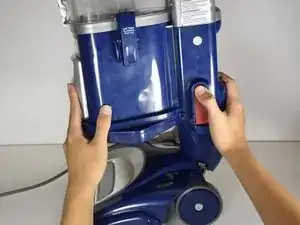

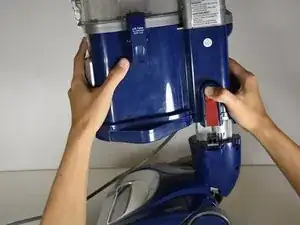

    • Lift this upper plastic body of the vacuum cleaner up with your hands while continuing to press on the circular region of the latch.

  8. WN3W2YcG3r2uH3fA
    WN3W2YcG3r2uH3fA
    fSJFCtGuUJNvEOAH
    Thbiyewkk5pKUvkY

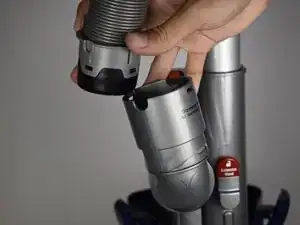

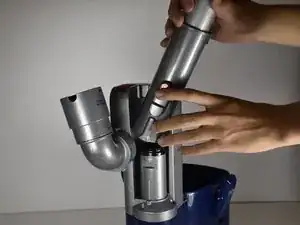

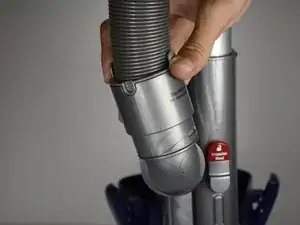

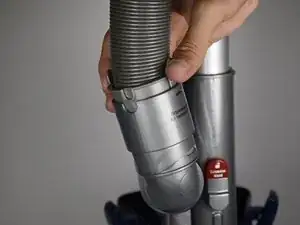

    • Locate the lower junction that connects the curved grey plastic tube and the hose coming from the vacuum cleaner's handle.

    • Press on the two grey flaps on either side of the hose simultaneously with your fingers and lift the hose out of the plastic cup with your hand.

  9. jZT5PqtyajnCJXJx
    jZT5PqtyajnCJXJx
    CKTSXteZLaNPj4y3
    1Gp6Q1Xc1SPdTeMR

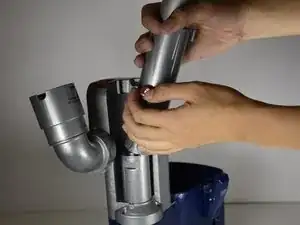

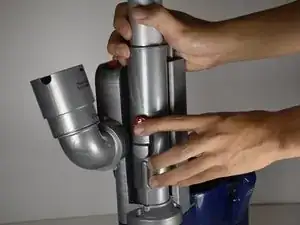

    • Locate the red latch that was next to the hose from the previous step.

    • Hold the bottom of vacuum cleaner's handle and its extension.

    • Use your other hand to press on the latch.

    • Lift the handle off the vacuum cleaner.

  10. KSbPwrsa5nFC6JU3

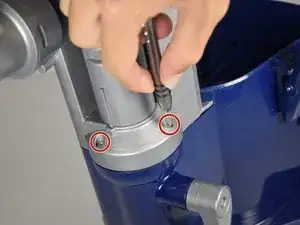

    • Remove the two 15mm screws with the PH1 screwdriver located on the bottom side of grey plastic body from which the handle was removed.

  11. ytZuE2l6APuq3hkO
    ytZuE2l6APuq3hkO
    ouWrcCExpScoiRTK

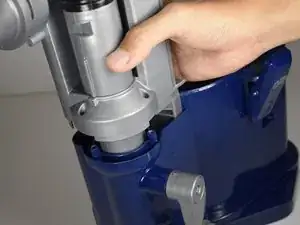

    • Lift the grey compartment out of the main body of the vacuum cleaner by pulling upwards with your hands.

    Will not pull out

    2 screws removed

    Michael Atkinson -

    Mine either. The grey section appears to be attached at the bottom, at the bottom end of the main blue compartment, but there are no removable screws visible. I ended up just breaking the front half of the grey compartment at the point where it joins the main blue section.

    Jonathan Steinberg -

    After my frustration subsided, and my brain kicked in again, I observed that you can probably disconnect the bottom part of the grey cylinder if you disassemble the bottom of the main blue engine compartment. I can just see what I think are the connecting screws in the gap at the bottom. You are going to need a t25 star screwdriver in addition to the phillips.

    Jonathan Steinberg -

    So, I took of the 2 screws and the grey piece would not come out, so I removed all screws on the bottom of the blue body and removed the 4 screws holding the grey connecting pins and found where the positive red wire connects to the pin, the solder had been broken, I re-soldered the wire to the pin and the base is in full function again. The switch wasnt the issue for me. Check all wire connections for any breaks, it could only be something as simple as some solder.

    Elias Juarez -

    It will not pull out like there is more screws

    jtweirdbeard -

  12. erfFVChGGI1MIOJ4
    erfFVChGGI1MIOJ4
    DGh1arscwoCXDEP6
    NQVAVcoqFYbXmp2u

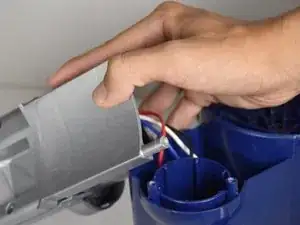

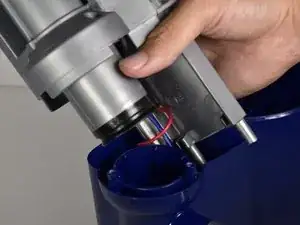

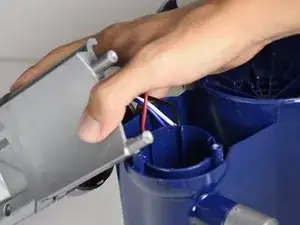

    • Continue to pull on the grey compartment until it is fully out of the main body of the vacuum.

    • Place the grey compartment on a surface for the next step.

    I cannot for the life of me pull this out. The part towards the front of vac is stuck

    Pete Currington -

  13. UXMWE4cZagNnPbK1
    UXMWE4cZagNnPbK1
    hOAZ1Buryrj14x4t
    FPWYPMfCiGW2gLx6

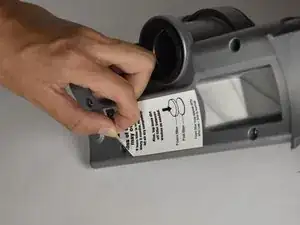

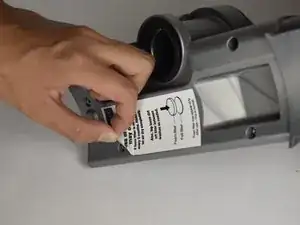

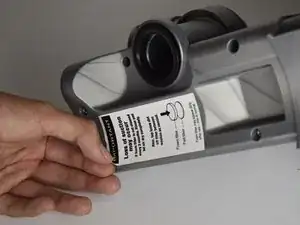

    • Peel the sticker away with your hands until the hidden screw hole is fully exposed.

  14. jNFW2QNQ6LW3WtRD

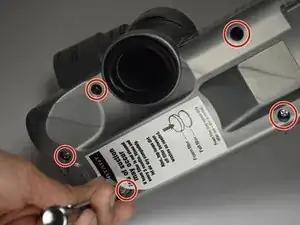

    • Locate and remove the five 15mm screws with a PH1 screwdriver.

  15. tFegvwPVVotIMU44
    tFegvwPVVotIMU44
    OHGgQXqUfGeCODWR

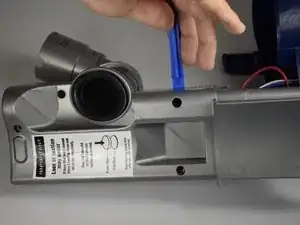

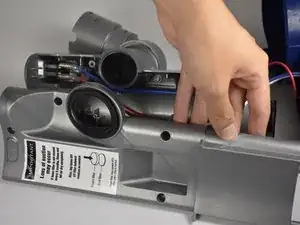

    • Insert plastic opening tool into the crevice in the middle between the two halves of the grey compartment.

    • Apply an outward force throughout and all around the gap in order to separate the two plastic halves.

    If you don’t have plastic tool how do you separate the two halves?

    Audrey Viana -

  16. SMFZBVD4PlZsxQcp
    SMFZBVD4PlZsxQcp
    vmnqlhC4jrMTlVie

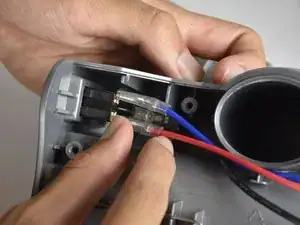

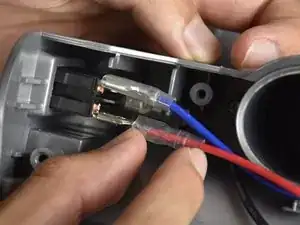

    • Locate the red power button and its red, blue, and black connected wires.

    • Pinch and pull the red wire's clear plastic insulator away from the power button with your hands until the metal connector is fully exposed.

    • Repeat this step for the blue wire.

  17. 4qCRVcFJYPcEGrA1
    4qCRVcFJYPcEGrA1
    V4C3CKbHTCCWTZeI
    SQwytBJVpHSGSJUR

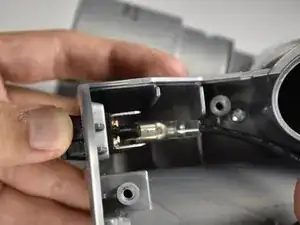

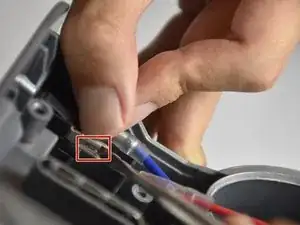

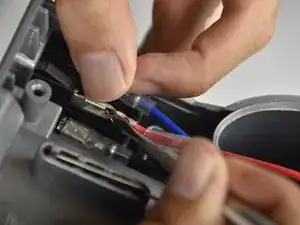

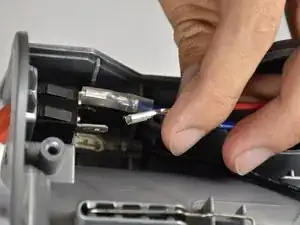

    • Locate the protrusion on the metal connector of the red wire.

    • Push down on the protrusion with the metal spudger while pushing the connector on the red wire away from the power button with your fingers.

    • Pull and wiggle the wire away by its connector with your fingers until it is completely detached from the connector on the power button.

    • Repeat this step for the blue wire

  18. HmhJLZNJyjwvnti2
    HmhJLZNJyjwvnti2
    JaUw3UKPPJrgekqj
    GCuSMTJagMRYELIO

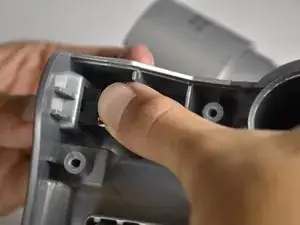

    • Push down towards the outside on the ledges that are holding the power button inside the grey frame.

    • Pull on the power button from the outside of the grey compartment with your hands, once the ledges are past the edge of grey frame.

  19. qoY26kMcqdf2yBjE
    qoY26kMcqdf2yBjE
    ZpYx1TePpH2RkurC
    wPEW5dRCJFkYAyVP

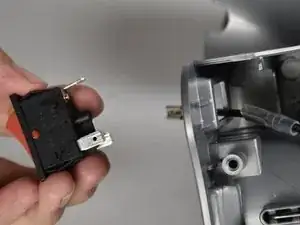

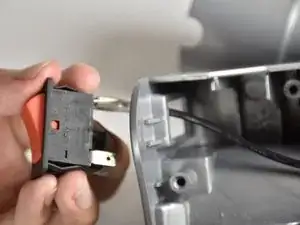

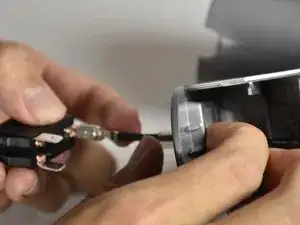

    • Pull the power button a couple inches away from the grey frame with your hands so that you have easy access to the black wire's connection.

    • Repeat steps 16 and 17 on the black wire and its connector.

    • Remove the disconnected power button away from the frame with your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
