Einleitung
If the indicator lights don't appear to be functioning despite being plugged in, a faulty control panel might be the culprit. Before doing any repair/disassembly on your Shark Professional Steam Pocket Mop, make sure to unplug both the mop and empty the water tank for your safety.
-
-
Unwrap the power cord from the handle.
-
Remove the 56.0 mm Phillips head #2 screw located above the water tank cap.
-
Pull the handle to separate it from the body.
-
-
-
Remove the three 12.0 mm Phillips head #2 screws where the handle connects to the body.
-
Remove the plastic cap.
-
-
-
Remove the three 16.0 mm T10 Torx screws near the top of the body and remove the water tank cap.
-
-
-
Remove steam control button cover with a metal spudger.
-
Remove the two 12.0 mm Phillips head #2 screws underneath.
-
Remove the plastic rim with clear plastic cover.
-
-
-
Remove the Shark logo decal on the front of body using a metal spudger.
-
Remove the two 12.0 mm Phillips head #2 screws underneath.
-
Pull out the plastic cover to remove.
-
-
-
Pop off the grey front plate to expose the control panel and screws necessary to open mop body.
-
-
-

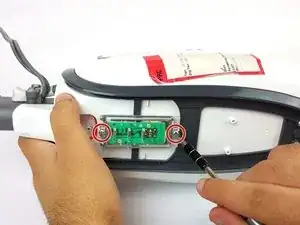

Remove the two 12.0 mm Phillips head #2 screws. Disconnect the control board.
-

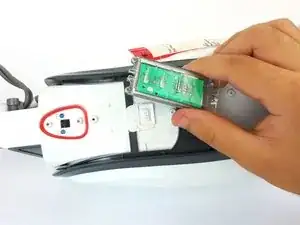

Disconnect the control board
-
To reassemble your device, follow these instructions in reverse order.
