Shark Professional Steam Pocket Mop Heating Element Replacement

Geschrieben von: Brett Wilson
  • Kommentare: 4
Shark Professional Steam Pocket Mop Heating Element Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

15 - 20 Minuten

Einleitung

Of all the parts to replace on the Shark Pro Steam Pocket Mop, the heating element is likely the trickiest to replace since it's at the core of the mop. Nonetheless, this guide will make the process a breeze. As always, before doing any disassembly on your Shark Professional Steam Pocket Mop, make sure to unplug the mop and empty the water tank for your safety.

  1. sSj2BObLicqGQUhT
    sSj2BObLicqGQUhT
    OiLp3ECROyqn3fIs

    • Unwrap the power cord from the handle.

    • Remove the 56.0 mm Phillips head #2 screw located above the water tank cap.

    • Pull the handle to separate it from the body.

  2. ppJKUvTuaoSMtgqh
    ppJKUvTuaoSMtgqh
    OH1kWoOJki52fNmi
    HlnivbU3kmndm3HF

    • Remove the three 12.0 mm Phillips head #2 screws where the handle connects to the body.

    • Remove the plastic cap.

  3. 55qspu6tHRWgJhpP
    55qspu6tHRWgJhpP
    BNddb6swXNqJeQAS

    • Remove the three 16.0 mm T10 Torx screws near the top of the body and remove the water tank cap.

    • The third screw is directly on other side of the bottom screw in the photo.

  4. iouPbctQpvVuTZim
    iouPbctQpvVuTZim
    J1Fcv2DNRIJDxpVq
    ddIdBungoBrlZHoR

    • Remove steam control button cover with a metal spudger.

    • Remove the two 12.0 mm Phillips head #2 screws underneath.

    • Remove the plastic rim with clear plastic cover.

    Don’t remove the whole cover!!! Only remove the label! I now have three broken screws and a steam mop that is junk! Please be more clear!!!

    Martha m -

  5. WHAMNA4BVTLRLJ3q
    WHAMNA4BVTLRLJ3q
    FuD1nOn5Nhrf1O3C
    54VbPwUAqJ3MPJDt

    • Remove the Shark logo decal on the front of body using a metal spudger.

    • Remove the two 12.0 mm Phillips head #2 screws underneath.

    • Pull out the plastic cover to remove.

  6. 1YpMiWImraCXNOp1

    • Pop off the grey front plate to expose the control panel and screws necessary to open mop body.

  7. QSmJ2cEhmCig1J2X

    • Remove the three 12.0 mm Philips head #2 screws connected to the dark grey plastic trim.

  8. rPquKKDtfPSeKOkB

    • Remove the four 16.0 mm T10 Torx screws located on the back of the mop.

  9. VkHUBTVAGhjyx5JN

    • Remove the two 12.0 mm Phillips head #2 screws that hold the power cord to the device.

  10. UTCseQCYj3LXwx5M

    • Pop off the dark grey plastic trim cover.

  11. jSCXtCOrcfmkqNr3

    • Pop open the white plastic mop body by pulling apart from the front and back side.

  12. cBPqZJXkTN5BvJcu

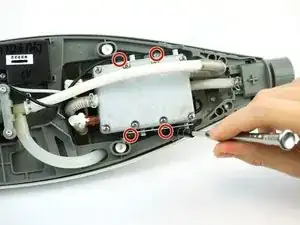

    • Remove the four 12.0 mm Phillips head #2 screws on the sides of the heating element.

  13. j143Djn6PbFL2olg
    j143Djn6PbFL2olg
    vB3LFWtmaEBjUBVS

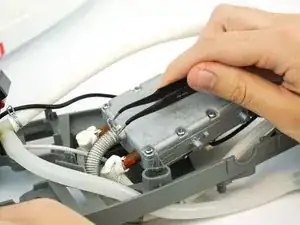

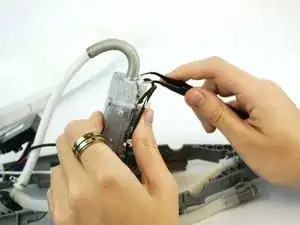

    • Pull out the heating element and use precision tweezers or pliers to pinch and loosen the two clamps.

    • Remove both tubes from the heating element.

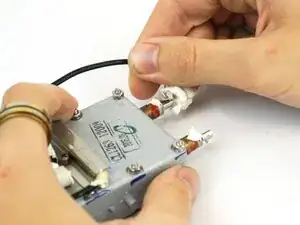

  14. thoiJUT2CYiXEBvq

    • Grip each wire at its base and pull to disconnect them from the heating element.

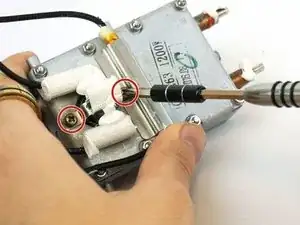

  15. PfQySwSMi6hpMgd6

    • Remove two 12.0 mm Phillips head #2 screws from the heating element.

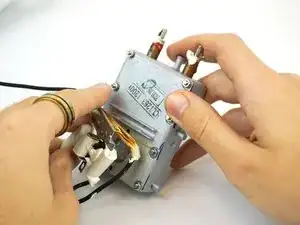

  16. MGnN2C1iGPQlGgVY

    • Pull apart wire connectors to fully detach the heating element.

Abschluss

To reassemble your device, follow these instructions in reverse order.
