Shark Rocket Powerhead AH401 Filter Grille Replacement

Geschrieben von: Shobhit Dabral
  • Kommentare: 1
Shark Rocket Powerhead AH401 Filter Grille Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

This guide will show you how to replace the filter grille if it becomes damaged, does not remain in place, or if you need to reach the Post-Motor filter.

  1. r6JnFOEdHYliTQyb
    r6JnFOEdHYliTQyb
    U2RMsIxEadLXSifJ
    tRUxZykyq1pkGgMD

    • Ensure the device is turned off and unplugged from any power source before beginning work.

    • Push down on the dust can lever to release the dust can in order to get to the filter grill.

  2. NawbRQLgNAEHmZBE
    NawbRQLgNAEHmZBE
    EteSYgiMXENF4IH5

    • Remove the dust cup by lifting it off the dock.

    I have a U shaped part the size of a nickle that came off of inside when I took it all apart and I dont know where it goes? Can you help?

    dcreed111 -

  3. C5GIEHRptQoV12io
    C5GIEHRptQoV12io
    NgTF5SYip2R6MYPZ

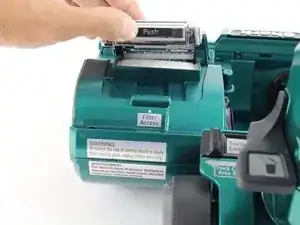

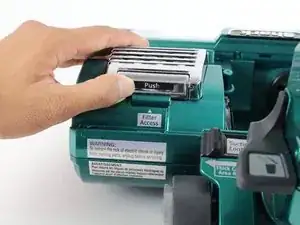

    • Push inward on the top of the filter grille where it says "Push."

    • Lift the filter grille upward.

  4. VkrWjkdytZyFuig3
    VkrWjkdytZyFuig3
    2jIwLEaLStRyoBTZ

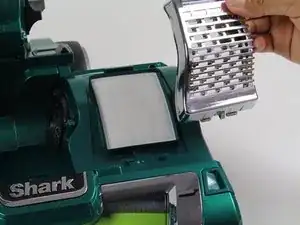

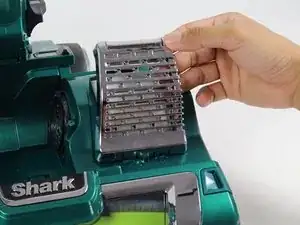

    • Lift gently and pull the grille up towards you until it releases.

    • The post-motor filter is underneath the filter grille.

Abschluss

To reassemble your device, follow these instructions in reverse order.
