Einleitung
If one of the components on the motherboard is damaged, it is easier to replace the whole motherboard. Gaining access to the motherboard requires disassembling the vacuum. This guide will demonstrate how to remove the motherboard of your Shark Rocket Powerhead AH401.
-
-

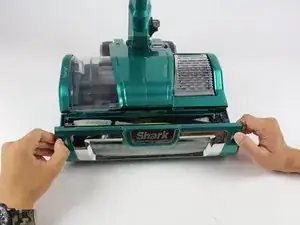

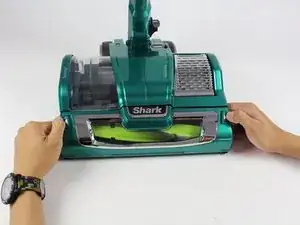

Locate the two tabs with white arrows on them. They are located on either side of the brushroll cover.
-
Slide the tabs away from the center of the vacuum to unlock the brushroll cover.
-

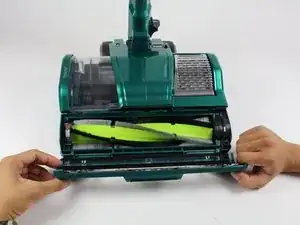

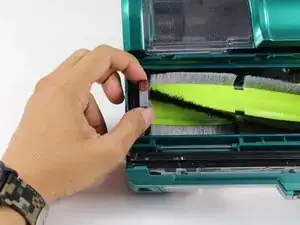

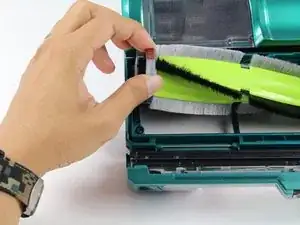

Lift the brushroll cover upward.
-
-
-

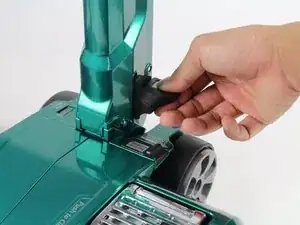

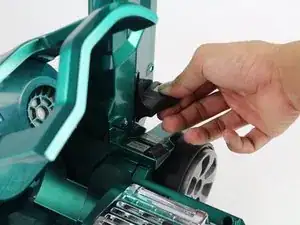

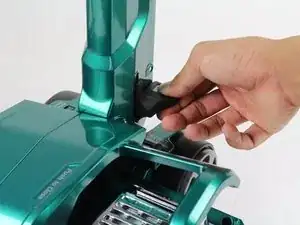

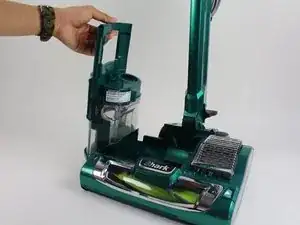

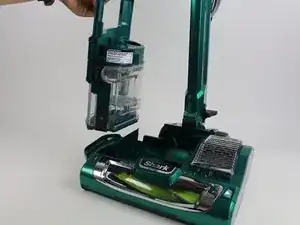

Push down on the dust can lever to release the dust can in order to get to the filter grill.
-
-
-
Flip the device over so that the bottom is face up.
-

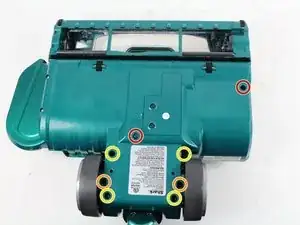

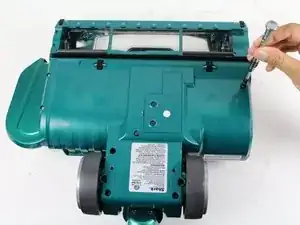

Remove the eight screws shown by rotating counter-clockwise with a T15 Torx screwdriver.
-
Two 14 mm Torx screws
-
Two 16 mm Torx screws
-
Four 21 mm Torx screws
-
-
-

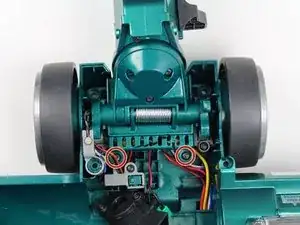

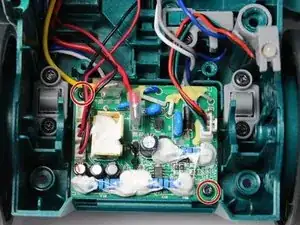

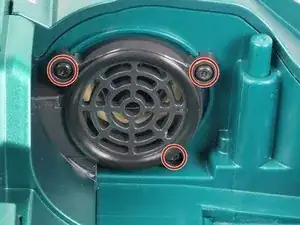

Remove the three 10mm screws by rotating counter clockwise with a T15 Torx screwdriver.
-

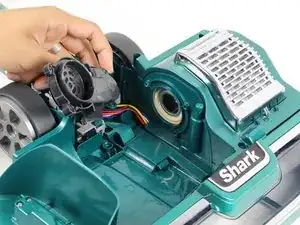

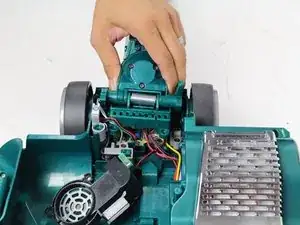

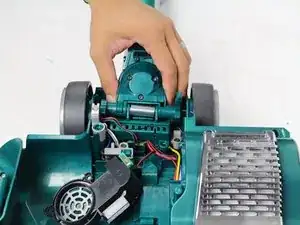

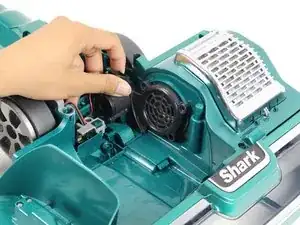

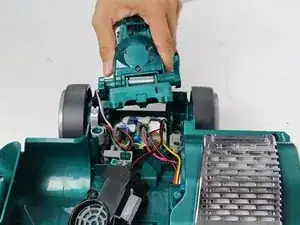

Remove the airpath grille by gently lifting up and away from the motor compartment.
-
-
-

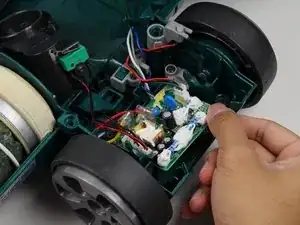

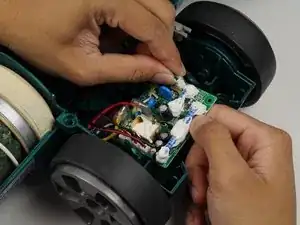

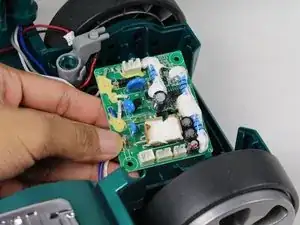

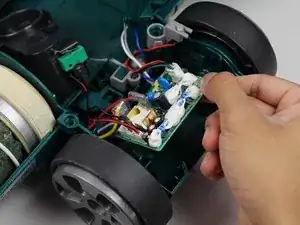

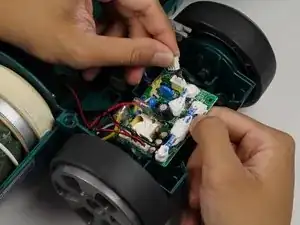

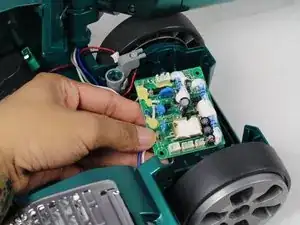

Flip the motherboard over to reveal the wires underneath.
-

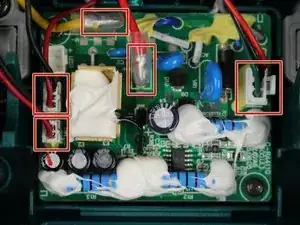

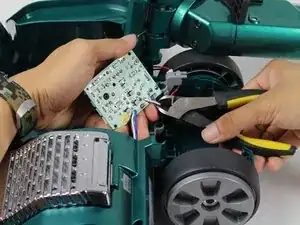

Locate and cut all the wires connected to the motherboard using cutting pliers.
-
To reassemble your device, follow these instructions in reverse order.
