Shark Rotator NV502 Roller Brush Motor Replacement

Geschrieben von: Caroline Swanson
  • Kommentare: 14
Shark Rotator NV502 Roller Brush Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

When the roller brush motor breaks, the roller brush will not spin. The motor can break due to electrical malfunctions or even broken pieces inside.

  1. xnOGmoJSpmtjF2EB
    xnOGmoJSpmtjF2EB
    RcOVR1DKE6VJlxiJ

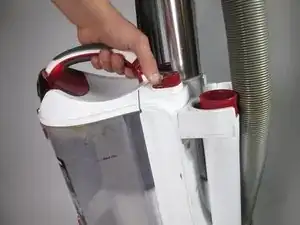

    • Pull the handle while pressing the lift away button to remove the body of the vacuum.

  2. bJ6WxHwORUOkP26G
    bJ6WxHwORUOkP26G
    PBQ6uB3jY1VAsvlk

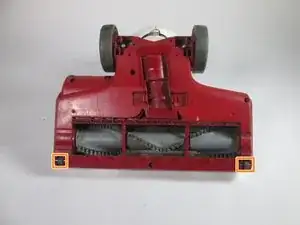

    • Flip the base of the vacuum over to access the bottom.

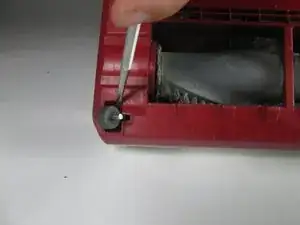

    • Remove the two small wheels with a metal spudger.

  3. q1t1UgGBmYxMXlhh
    q1t1UgGBmYxMXlhh
    XjBxntSCT1FTEj3a

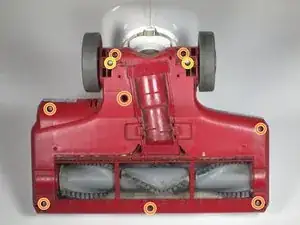

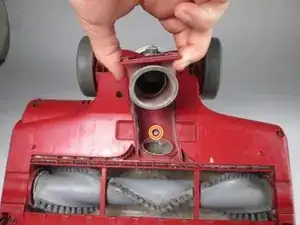

    • Remove the nine 16 mm screws using the Phillips #2 Screwdriver. Press on the side tabs in the middle of the panel and pull up to reveal the screw under the hose connection.

    • Remove the two 13.5 mm screws using the Phillips #2 Screwdriver.

    For Step 3, the text refers to 9 16mm screws, but the photo shows only 8 of them. You will find the 9th screw underneath the housing for the hose, the red tube in the center. Lift up carefully.

    CeCe -

    Excellent fixit right out of the box thanks

    thanks for taking time to do it

    xx19912 -

    On my vacuum there are not 9 Phillips head screws. There are 2 Phillips head screws and 7 star head screws. If you have any sense at all when you put your vacuum back together you will throw away these star head screws and replace them with Phillips head screws of like thread and length.

    paulmarra1956 -

    There is no need to remove the rear wheel axle screws to remove the top.

    Marc -

    OMG Thank you CeCe! I was scratching my head looking for that last screw

    K C -

  4. wSxlUBspBohQxRmR
    wSxlUBspBohQxRmR
    FmZKbpEYs3IFCbKi

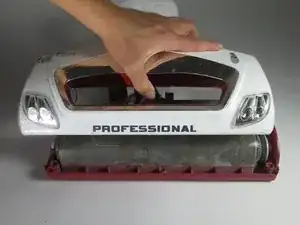

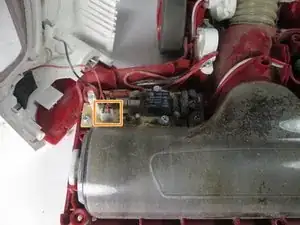

    • Pull up on the cover and move it to the side.

    • Remove the wire attached to the base by squeezing the pin and pulling up.

  5. sTEEaYSTmSCHhhUJ
    sTEEaYSTmSCHhhUJ
    AlhX2HBOZB22HwAP

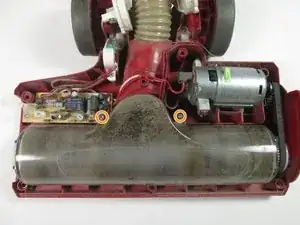

    • Remove the two 11 mm screws using the Phillips #2 screwdriver.

    • Lift the roller brush cover up.

  6. bQy3hvJxl5XlWMfq

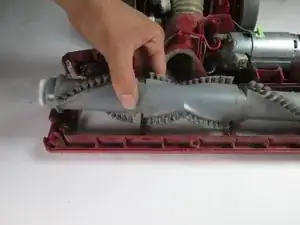

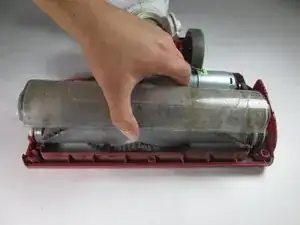

    • Pull out the roller brush.

    The photos were perfect. Followed the directions perfectly step by step and I was able to reassemble and I had no screws left over! Thanks (59yr old Nana)

    Jill Richards -

    I Found one on the bloody trash about an hour ago. Bleeding wankers! Throwing away a great bloody piece like it, is bloody crazy I say. !#off, it's mine now!

    William Fabiano -

  7. EccQGQWAqPLcILMt
    EccQGQWAqPLcILMt
    VSmaAPaOKqC5psuf

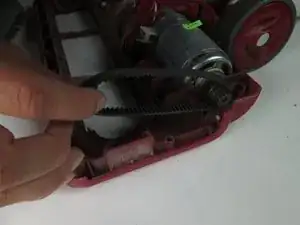

    • Remove the roller belt from around the roller brush and the motor gear.

  8. YVgemb1OQ2q3NGVH
    YVgemb1OQ2q3NGVH
    CMAfy4viR1vcNU2E

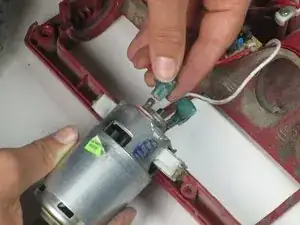

    • Lift the motor out of the base.

    • Disconnect the pins attaching the wires to the motor by pulling on the pins.

    Make sure the top and bottom rubber motor mounts are in place before re-installing the motor.

    Marc -

Abschluss

To reassemble your device, follow these instructions in reverse order.
