Shark Rotator Powered Lift-Away Roller Brush Replacement

Geschrieben von: Cameron Ngai
  • Kommentare: 26
Shark Rotator Powered Lift-Away Roller Brush Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten

Einleitung

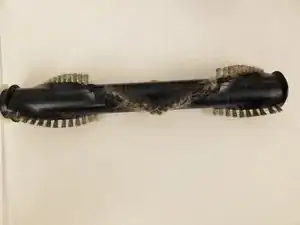

When the Shark Rotator Powered Lift-Away is difficult to maneuver or fails to pick up dirt, inspect the roller brush for clogs or damage. Excessive obstructions will cause the vacuum to not operate as intended.

  1. JFgGGvHaIYWyK6NH
    JFgGGvHaIYWyK6NH
    FUlLsc42FWO1Reiq

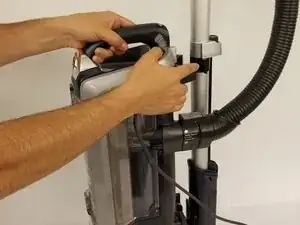

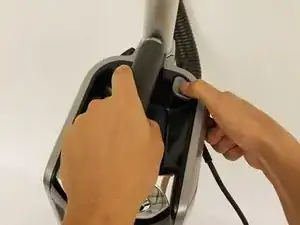

    • Push the lift away button and pull the handle up to separate the body from the wand section.

  2. CfMmOWh6friaxtVC

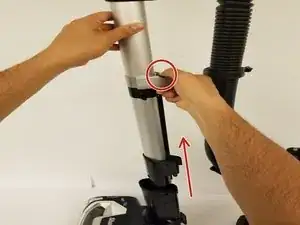

    • Push lift away button on the wand then lift up on the top section to separate.

  3. tNNc5MJkQbvHdOMo
    tNNc5MJkQbvHdOMo
    6AKVFMAb61ohsRqF

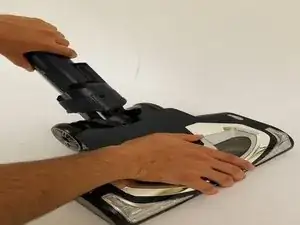

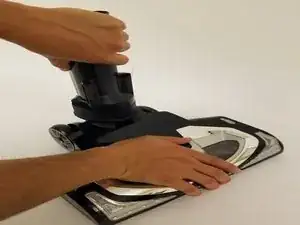

    • Tilt the wand shaft backwards for convenient.

  4. GUA5Wp23NOxU3LiD
    GUA5Wp23NOxU3LiD
    k1LSXTOLKTQnZ2RM

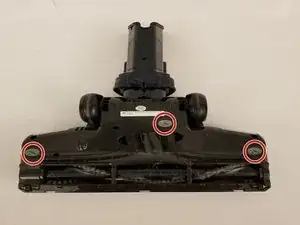

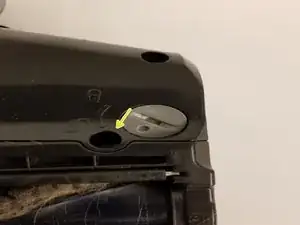

    • Lay the head nozzle piece upside down.

    • Rotate the three gray taps to the unlock position.

  5. WFDqvtBjKV1MwBHX

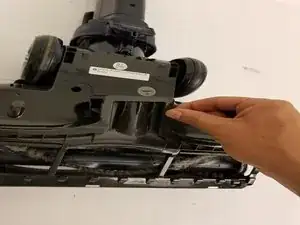

    • With your fingers, pry and pull the brush cage open.

  6. Aa5HbbQFTivWATcm
    Aa5HbbQFTivWATcm
    yqLZWGdhOvB5VGH1

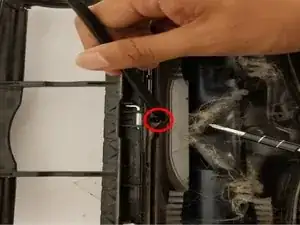

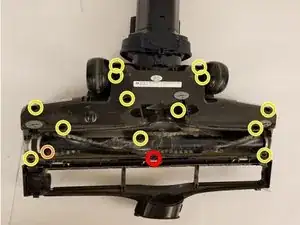

    • Remove the 13 screws (circled in yellow) using a phillips screwdriver.

    • Be sure to keep track of which screws go into which hole.

    • Remove the one screw (circled in red) that has a Torx head (might be Phillips head on some models).

    • The Torx screw is hidden under a rubber gasket. Carefully, lift up the gasket without damaging it to access this screw.

    • Remove the horizontal screw (circled in orange) that attaches the gray side panel (necessary to remove the white cap on the roller brush in step 8)

    The 13 Philips screws are Torxt 25 screws not philips head screws it’s a Special torx drive tool.

    John Murray -

    You forgot to explain how to remove the two silver end caps one of them has a philips head screw that has to be removed from the inside,

    and it’s hard to find because it’s usually full of lint.

    John Murray -

    On model NV 752 the torx screw is a T20, not T25. and it is the screw that is in the middle of the unit, not on the end where the red circle is shown above. This is not for the feint of heart. I have now replaced the roller and I am having trouble putting it back together again.

    I have replaced roller brushes on other vacuums and this doesn’t have to be this difficult people. I love my Shark but may reconsider buying another based on how difficult it is to replace this roller brush.

    Jkg Gardiner -

    I agree with you. The designer knew nothing about "design for assembly" and "design for servicing". I was a design engineer for over 30 years for generators. Those are two important aspects of design. Also, one tries to minimize the number of screws and attempts to make then all the same size. Anyone attempting this for the first time will rate this replacement as difficult. So why is a recessed torx bit required? Obviously, they want service reps to make money.

    Tim Gurr -

    My NV 752 had all Phillips screws - 15 of them total. One is hidden on the belt side almost under the brush--the only one positioned horizontally--and holds the gray side panel that covers the cap discussed in step 8.

    E A -

    My model number is UV770QCH but it's similar to NV 750 W. I too had a Phillips screw hidden on the belt side under the brush. There was a Phillips screw that ran horizontal to the brush roll cassette that was very difficult to find. As others noted, it was located in a different position from the one pictured in this demo. Also, it was covered in lint and very awkward to reach (glad to have small hands for once). Most other screws required a Torx 20. Four screws (including hidden under brush screw) needed a 2.0 50ml Phillips. Hopefully, my new brush roller lasts a while.

    Nancy McElroy -

  7. xsveySkwrIsS5wMT

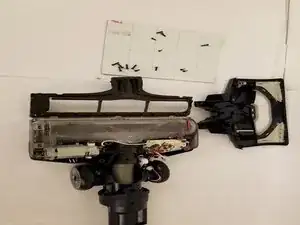

    • Lift up the top cover now that all of the screws have been removed.

  8. mGJ6VuyfHF2qDw2l

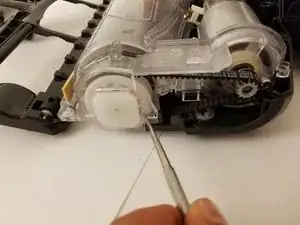

    • Remove white cap with a Flathead screwdriver or any other wedge-like tool.

    You forgot to remove the two end caps by prying them off with a flat head screw driver, the one on the motor drive end has a hidden

    philips head screw that has to be removed from the inside before prying off, I know from experience

    John Murray -

    The end caps can only be remove by prying from the back side. Not enough gap to pry from front side.

    Tim Gurr -

  9. kVt4XiWFBFEcXyAg
    kVt4XiWFBFEcXyAg
    u2eBMIhVBd4xo1hP
    1LhbSMYPOEqwWHIu

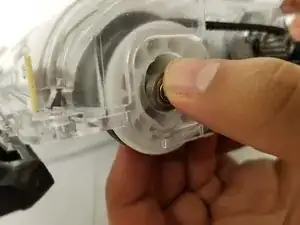

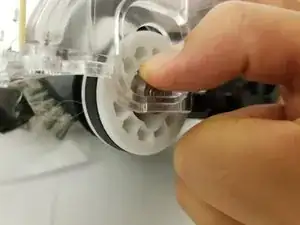

    • Gently push piece in.

    • Pull piece down and out of the container.

  10. CXNrYGqMfnogWM1B

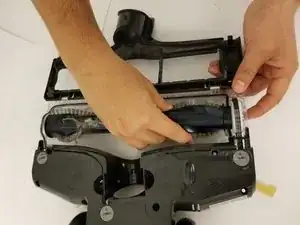

    • Turn vacuum head over to remove brush.

Abschluss

To reassemble your device, follow these instructions in reverse order.
