Einleitung
When the roller brush is not spinning because of a broken belt or damaged teeth, you might want to consider replacing the belt.
Werkzeuge
-
-
Remove eight 12.7mm screws located under the vacuum using a Phillips #02 screwdriver.
-
Remove two 12.7 mm screws located next to the wheels with a Phillips #02 screwdriver.
-
-
-
Turn the vacuum upright and pull the white upper section of the brush roller circuit housing.
-
-
-
Remove the two 12.7 mm screws located at the top of the clear plastic brush roller housing using a Phillips #02 screwdriver.
-
Lift the clear plastic brush roller housing.
-
-
-

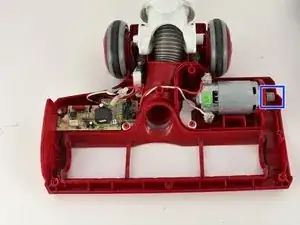

Remove the belt from the motor gear by sliding the belt away from the gear and belt motor.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
