Einleitung

When the roller brush is not spinning because of blockage or damage, you might want to consider replacing it.

  1. Ce1oI2FY3qWcZ6oJ
    Ce1oI2FY3qWcZ6oJ
    uZ4UjkjTei5jTLCS

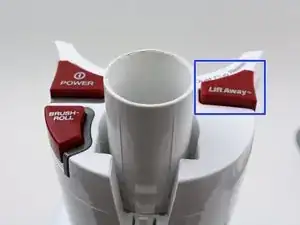

    • Push the red Lift Away button down and lift up on the vacuum handle to detach the base.

    • The handle was removed for convenience but is not required.

  2. eQZLdUF3hXynjuNC

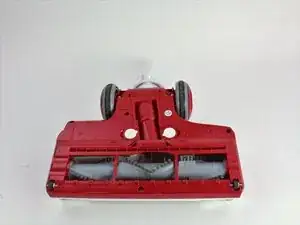

    • Turn over the vacuum to reveal the roller brush.

  3. BMCBQEvIxturmHjV
    BMCBQEvIxturmHjV
    k5ulvFNJrfSXNjxQ

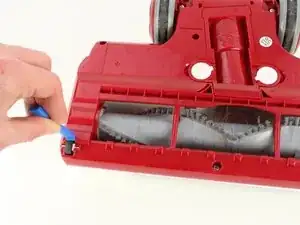

    • Pry the small wheels at the bottom of the base using the plastic opening tool.

  4. ayJYJsDx2BDLh6ag
    ayJYJsDx2BDLh6ag
    T1oog2bmWWkKsbgK

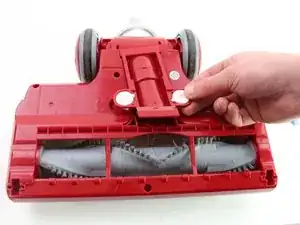

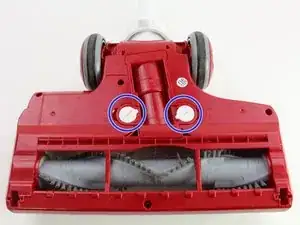

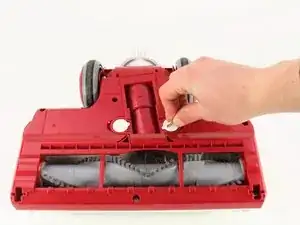

    • Using a coin, turn the big white knobs located above the roller brush counter-clockwise.

  5. 6pXxGMKjjSVeR6wn
    6pXxGMKjjSVeR6wn
    kWMa6gXNylateCe1
    waTQByRAfWUMwSBX

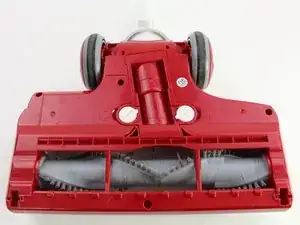

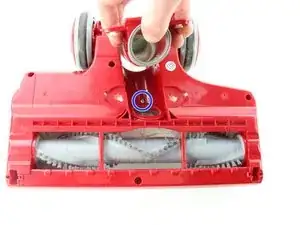

    • Lift up the suction hose to reveal a screw.

    • Remove the 12.7 mm Phillips #02 screw.

  6. ENLKjXjxWG5A1WWw
    ENLKjXjxWG5A1WWw
    UOygypTr3HPOCEfv

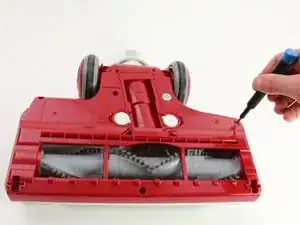

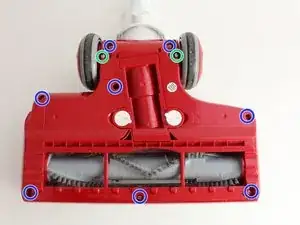

    • Remove eight 12.7mm screws located under the vacuum using a Phillips #02 screwdriver.

    • Remove two 12.7 mm screws located next to the wheels with a Phillips #02 screwdriver.

    • The two screws located next to the wheels are smaller in diameter.

  7. AnOi6E3jpbfjwGXm
    AnOi6E3jpbfjwGXm
    rZvZvQwcEVuJP1NH
    mM5YKsBdJXUoU6NK

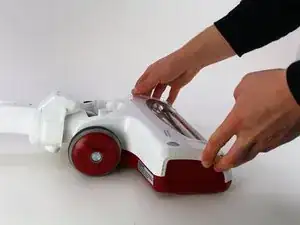

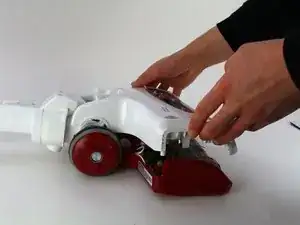

    • Turn the vacuum upright and pull the white upper section of the brush roller circuit housing.

    • Be careful when lifting the housing as there is a connector attached.

  8. LMadJDWrSSVUOwAb
    LMadJDWrSSVUOwAb
    iVL4UO3I3LtMVPpy

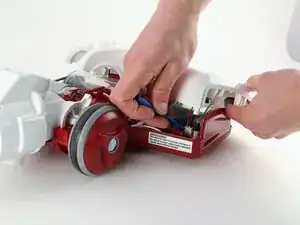

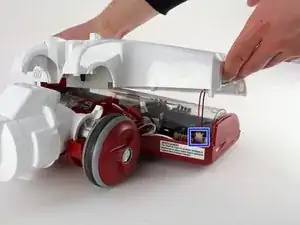

    • Remove the connector attached to the circuit boards using a plastic opening tool.

  9. LAIn6Ib6yPPcG5me
    LAIn6Ib6yPPcG5me
    4iYRmKKlRxDrltPo
    w6COMAZmfsjg5OIZ

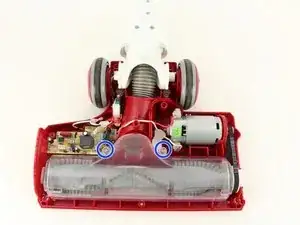

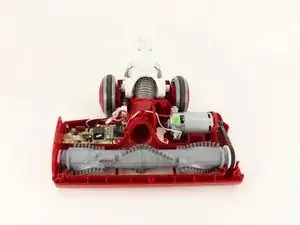

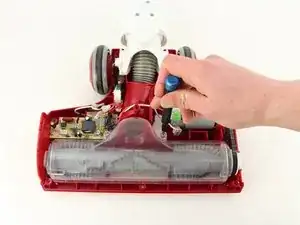

    • Remove the two 12.7 mm screws located at the top of the clear plastic brush roller housing using a Phillips #02 screwdriver.

    • Lift the clear plastic brush roller housing.

  10. yJ2lPx3kMVBYis3r
    yJ2lPx3kMVBYis3r
    IRTYoQBqALTaXSRT

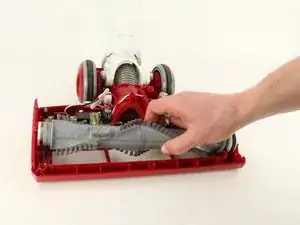

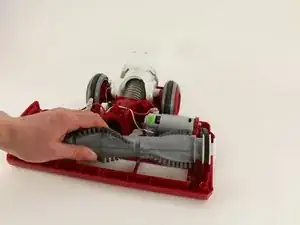

    • Wiggle the brush roller upwards from the left and right side slots.

Abschluss

To reassemble your device, follow these instructions in reverse order.
