Einleitung

  1. 5oIaA4vbXkjVoWUZ
    5oIaA4vbXkjVoWUZ
    NFCTpqVWM3eJJXFd
    • Place the TV face down on a flat smooth surface as to not scratch the screen.

    • Using a Phillips #2 screwdriver remove the four 8mm screws attaching the stand to the TV.

  2. TUHLylSY1vlXfRfQ
    TUHLylSY1vlXfRfQ
    lgxBtR3niZs1Mobf
    • Lift the stand off the television.

  3. B31jJDGXQoxvZpOp
    B31jJDGXQoxvZpOp
    VWdWUJyMpd1rxlEk
    vR5poZCPtinUbphq
    • Remove the two back panels by prying them out with your hands.

  4. 2LDxqsOYHd4jXuMQ
    2LDxqsOYHd4jXuMQ
    ppmLCPN1VcCxMtCI
    • Using a Phillips #2 screwdriver, remove the eight 6mm Phillips screws located around the edge.

    • Using a Phillips #2 screwdriver, remove the two 6mm Phillips screws located near the inputs.

  5. QRtnIRMOitsqU3CN
    • Using your hands, gently lift and remove the back case of the television.

  6. NNQPlW4GYJEINuiA
    NNQPlW4GYJEINuiA
    dNgXNiZe3VTAusB6
    riPADf2OWSqPDtgx
    • Remove the two speaker cables and the connector from the circuit board by pinching the plastic connectors and firmly pulling up.

    • Pull on the plastic part of the connector, even though it may seem easiest to pull on the wires.

  7. A3h162ggKvhQnHrW
    A3h162ggKvhQnHrW
    NHBelV3HQMLAkHIO
    • Remove the green and gray power connector from the side of the buttons panel at the top of the television.

    • Remove the green/gray to orange/gray connector from the center of the circuit board.

  8. yfc6UQ2ZW2X5TLCA
    yfc6UQ2ZW2X5TLCA
    5yVLiXP61GYToD4x
    • Remove the four 5mm phillips screws attaching the LCD and circuit board to the front case.

  9. PFqtdJRNYxmXnQbH
    • Lift the circuit board/LCD block from the case by lifting the near side of the circuit board and sliding it under the button frame.

  10. 3QmQTaqQBAXOeRwV

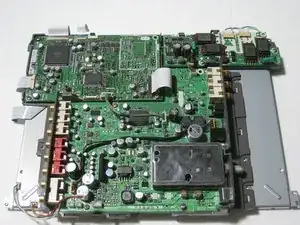

    • Flip the LCD/circuit board so that the circuit board faces up.

  11. sbIrcR51YtxCFB3S
    sbIrcR51YtxCFB3S
    xHAG2CrZHKXWHFoV
    2OSHGdZrN5mamDG6

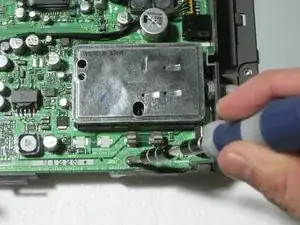

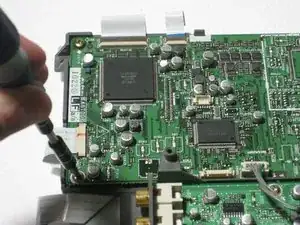

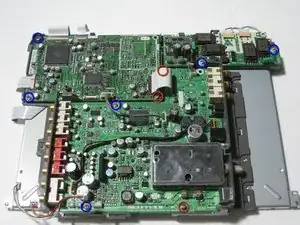

    • Remove the three 5mm Philips screws attaching the circuit board to the LCD.

    • Remove the five 6mm Phillips screws from the edges of the circuit board attacking it to the LCD.

  12. cBlN6neSMGO5IcC3
    cBlN6neSMGO5IcC3
    kM1XhPFRGlZYDAbB
    oqApabyBXwaFOKWn

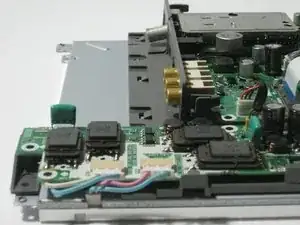

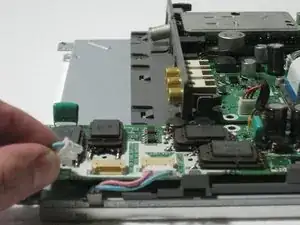

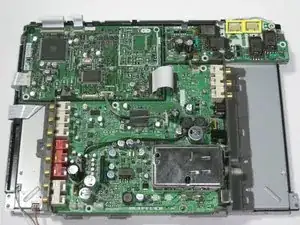

    • Turn the circuit board so the blue and pink side cables are facing you.

    • Hold the white plastic, squeeze and pull from the sides.

    • Pull on the plastic part of the connector, even though it may seem easiest to pull on the wires.

  13. BmskHFqGVLJ2NpSq
    BmskHFqGVLJ2NpSq
    I3YXfGLLFmViowp5
    eRxTKfeKJhs1EEIF

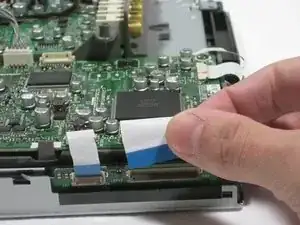

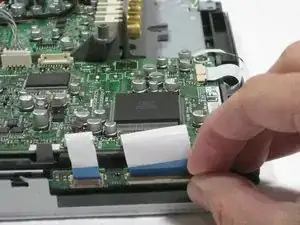

    • Turn the television so the right hand side is facing you.

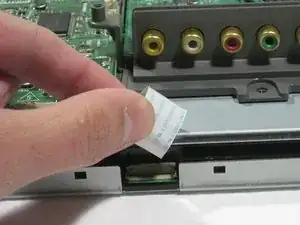

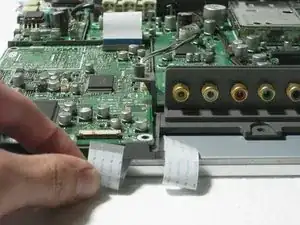

    • To remove the ribbon cables, fold the brown casing down and pull directly upward on the ribbon.

    • Turn the television so the left hand side is facing you, and remove the ribbon cable in the same manner.

  14. 3ewhsLgMvw3Nwpqr
    3ewhsLgMvw3Nwpqr
    dNgOXPxfUTTGe2f6
    WfikNKMIAAkWZgoj

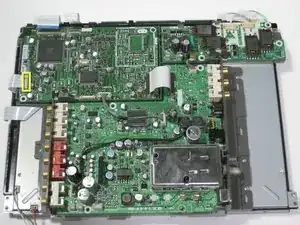

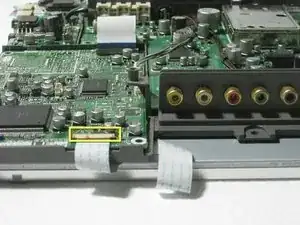

    • Turn the circuit board so that the left side is facing you.

    • Detach the data cable from the circuit board.

    • To do this, slide your finger nail from the middle of the connector until the little black tabs rotates down toward the board as shown in the second picture.

  15. QpS6lTmLoGQHCPNv
    • Lift and remove the circuit board from the LCD frame.

  16. ArgNcbejrWsYN32U

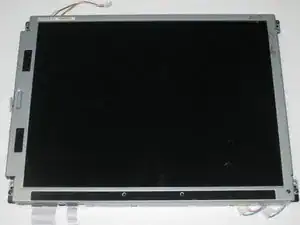

    • Now you have your LCD.

Abschluss

To reassemble your device, follow these instructions in reverse order.
