Einleitung

  1. 5oIaA4vbXkjVoWUZ
    5oIaA4vbXkjVoWUZ
    NFCTpqVWM3eJJXFd
    • Place the TV face down on a flat smooth surface as to not scratch the screen.

    • Using a Phillips #2 screwdriver remove the four 8mm screws attaching the stand to the TV.

  2. TUHLylSY1vlXfRfQ
    TUHLylSY1vlXfRfQ
    lgxBtR3niZs1Mobf
    • Lift the stand off the television.

  3. B31jJDGXQoxvZpOp
    B31jJDGXQoxvZpOp
    VWdWUJyMpd1rxlEk
    vR5poZCPtinUbphq
    • Remove the two back panels by prying them out with your hands.

  4. 2LDxqsOYHd4jXuMQ
    2LDxqsOYHd4jXuMQ
    ppmLCPN1VcCxMtCI
    • Using a Phillips #2 screwdriver, remove the eight 6mm Phillips screws located around the edge.

    • Using a Phillips #2 screwdriver, remove the two 6mm Phillips screws located near the inputs.

  5. QRtnIRMOitsqU3CN
    • Using your hands, gently lift and remove the back case of the television.

  6. NNQPlW4GYJEINuiA
    NNQPlW4GYJEINuiA
    dNgXNiZe3VTAusB6
    riPADf2OWSqPDtgx
    • Remove the two speaker cables and the connector from the circuit board by pinching the plastic connectors and firmly pulling up.

    • Pull on the plastic part of the connector, even though it may seem easiest to pull on the wires.

  7. A3h162ggKvhQnHrW
    A3h162ggKvhQnHrW
    NHBelV3HQMLAkHIO
    • Remove the green and gray power connector from the side of the buttons panel at the top of the television.

    • Remove the green/gray to orange/gray connector from the center of the circuit board.

  8. yfc6UQ2ZW2X5TLCA
    yfc6UQ2ZW2X5TLCA
    5yVLiXP61GYToD4x
    • Remove the four 5mm phillips screws attaching the LCD and circuit board to the front case.

  9. PFqtdJRNYxmXnQbH

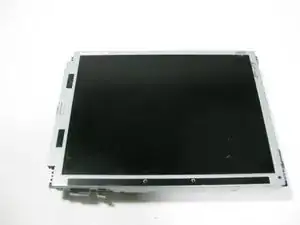

    • Lift the circuit board/LCD block from the case by lifting the near side of the circuit board and sliding it under the button frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
