Successfully replace a dead battery in the Sharp EL-531X calculator using common household tools.

We'll see how easy it is to replace a dead battery, including a list of useful tools for this procedure as well as instructions with accompanying images.

  1. xxVYRCaAXigWeFMY
    xxVYRCaAXigWeFMY
    5pMjqhLsEDeF6mxm
    6ipOLpV2OcnKJdYx

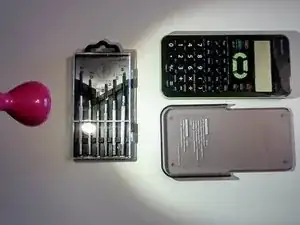

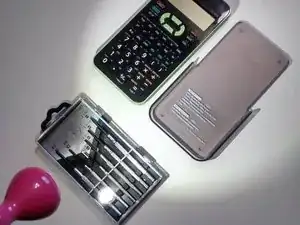

    • Clear the work table of items not related to repair.

    • Use a small container to temporarily store removed parts.

    • Use a work light, if desired.

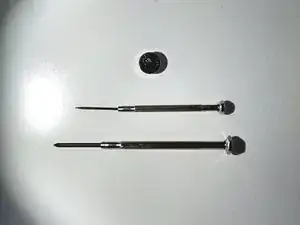

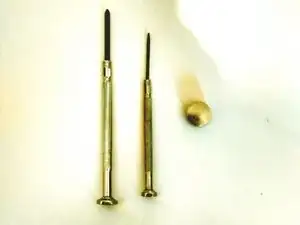

  2. dHhFOwge2YobGqdD
    dHhFOwge2YobGqdD
    XOWBVCyTfNUrGbGZ
  3. YStFKBcoytgHFSFU
    YStFKBcoytgHFSFU
    SthV2AxdHnMdLuVP
    KC4HQ2UNBXtCyuPb

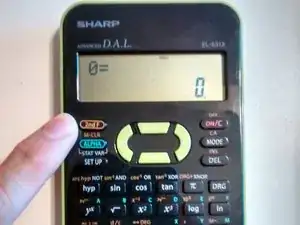

    • Remove the grey protective case and set aside.

    • Press the orange <2nd F> button, located in the top-left corner of the keyboard.

    • Press the pink <ON/C> button, located in the top-right corner of the keyboard.

    • Flip the device over so the green backing and battery door face up.

  4. RZl1XYwqYguFLhAU
    RZl1XYwqYguFLhAU
    rZNQQ1CDJOHLrMSN

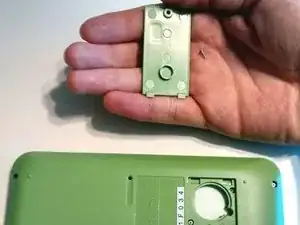

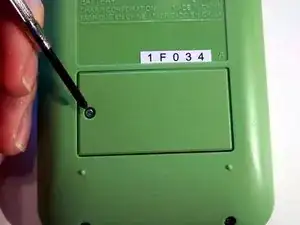

    • This screw is removable with the #0 Phillips screwdriver.

    • Insert the #0 Phillips screwdriver into the screw head.

    • Turn the screwdriver counterclockwise until the screw releases from the housing.

    • Carefully flip the calculator over and allow the screw to fall into the palm of your hand.

    • Note: The battery door may fall with the screw. If this is the case, place both parts into the small container for later use.

    • Place the screw into small container.

  5. lYTpsROewwgeoa3T
    lYTpsROewwgeoa3T
    EkBsaM3g3ByO1MnK
    fwnmA6WOmu3VnA1q

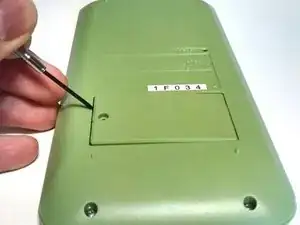

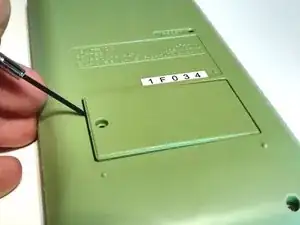

    • If the battery door sticks, use the 1.5 mm flat blade screwdriver or prying tool to CAREFULLY and GENTLY pull up on the left side of the door.

    • Remove the battery door and place in small container.

  6. RSklUU6fY1qKa2Xs
    RSklUU6fY1qKa2Xs
    UGsMrgmdwjWvfNr1

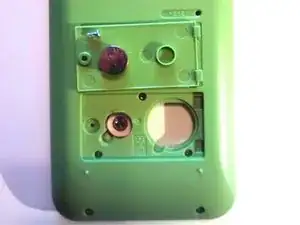

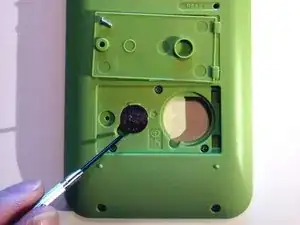

    • The small LR44 battery is located on the left hand side of the battery compartment.

    • CAREFULLY insert the 1.5mm flat blade screwdriver into the small space located on the bottom left hand side of the battery.

    • GENTLY press down on the screwdriver. The battery will easily slide upward.

    • Remove the battery from the battery compartment.

    • Set battery aside to discard properly after repair.

  7. K5vhLMc1ll6YolTY
    K5vhLMc1ll6YolTY
    m32JOXV3FBiO1wtX

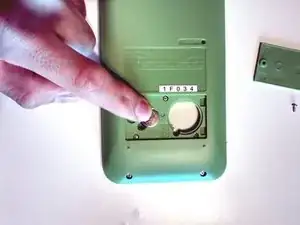

    • Remove battery from packaging. The proper replacement battery will have “LR44” printed on the top, or positive side, of the battery.

    • Place replacement battery, positive side facing up and visible, into the battery compartment

    • Apply gentle pressure until the battery lays flush with the surrounding green housing.

    • Note: This step will automatically turn calculator on. If the calculator is not turned on automatically, the battery may be placed incorrectly or another issue may be causing the calculator to malfunction.

  8. Mxw2AXwiHR1smIRN
    Mxw2AXwiHR1smIRN
    VxS3xYVMKCOxBSBe
    yXU1IgLArhXIJGDZ

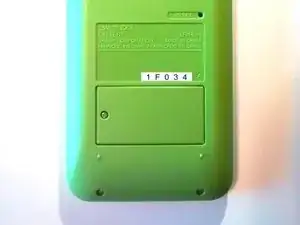

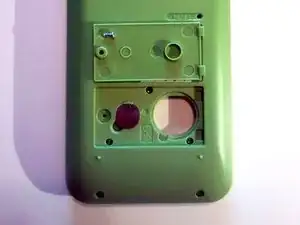

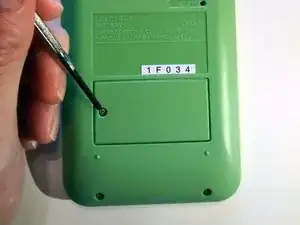

    • Ensure the two small plastic latches are oriented on the bottom and right side.

    • Fit battery door into the two calculator housing slots. Once placed, the battery door should lay flush with the surrounding green housing.

    • Ensure the screw hole on the left hand side aligns with the screw hole on the battery compartment housing.

    • Using the #0 Phillips screwdriver, insert the screw.

    • Rotate screwdriver clockwise until secure.

    • Note: Do not over tighten, this may crack the plastic battery door housing or otherwise break device.

  9. uWGq1ZCmAOoNjwHN
    uWGq1ZCmAOoNjwHN
    GBUwOZN3MAnkoVlt
    TEUOmJvwrZYCDQ23

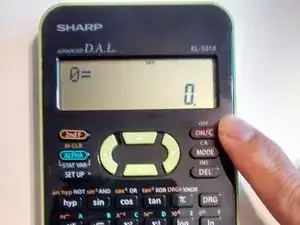

    • Note: Replacing the battery turns the calculator on automatically.

    • Press <2nd F> in the top left hand side of the keyboard.

    • Press <ON/C> in the top right hand side of the keyboard to turn the calculator off.

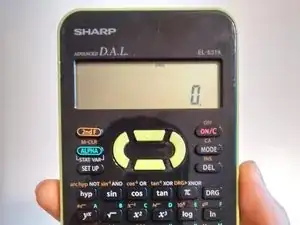

  10. 1wMDXTOpsQcUEf4y
    1wMDXTOpsQcUEf4y
    rxT1Y2fktJNPIh6L
    xbHAxbBtunXNPoEC

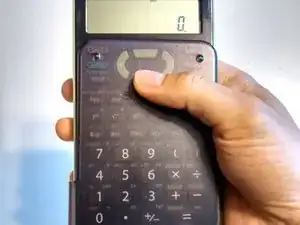

    • Hold the calculator in the palm of your hand with the display and keyboard facing up.

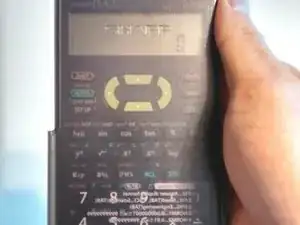

    • Slide the grey protective case, short side facing down, from the bottom to the top of the calculator, ensuring the case slides easily along the two channels on the calculator body.

Abschluss

Congratulations! You have successfully replaced the dead battery in your Sharp EL-531X calculator.
