Einleitung

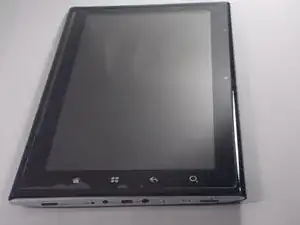

  1. yUBqaLCdddCZqXyD
    • Position the tablet on a flat surface in front of you and place it face down.

  2. XPaHyFMg4qVMnZ4d
    • Remove silver side panels with prying tool by snapping them of the outer casing of the tablet.

  3. RNGjcLDxONFqFSac
    • -Remove 9 screws by unscrewing the ones behind the panels with a bit driver. There are four screws on one side and five on the other. All which need to be removed.

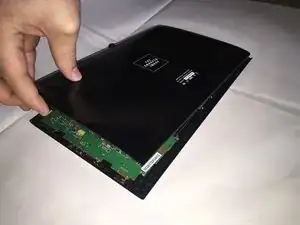

  4. oZuuiUrDEfkuMbLV
    oZuuiUrDEfkuMbLV

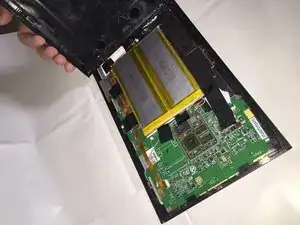

    5Cla13wY4vDKHgBt
    • Snap the back cover of the tablet off of the front cover, hence removing the tablet’s outer casing. Be cautious when removing because the speaker wires connect the two casings of the tablet.

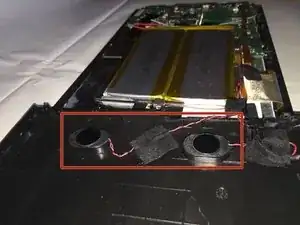

  5. fXbUSpJS2PCGyoRt
    • The speakers are located on the inside of the back casing. They are two small black ovals thats are connected with two sets of black and red wires and connect to the logic board.

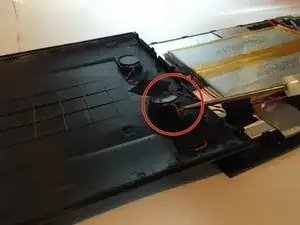

  6. Wrhy3QeAAMMvD2kx
    Wrhy3QeAAMMvD2kx

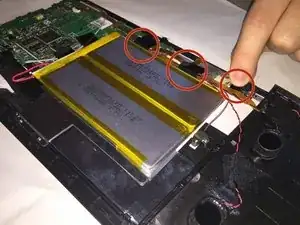

    uvoctdOTHsnsLnHu
    • Using a prying tool lift the edge of the speakers where the wires are attached. Follow the wires connected to the speakers and remove the black tape. There is one piece of tape for each speaker and three pieces of tape that attach them to the logic board. Remove all carefully.

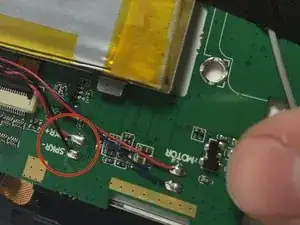

  7. uOHvsxjNUnYlr5C6
    uOHvsxjNUnYlr5C6
    emRRaUG6axbIxI1q
    • Using the wire snippers, cut the defective speaker wires as close to the circuit board as possible. Then gently remove the defective speakers from their housings with your hands.

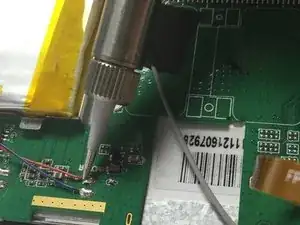

  8. AsceuajgmPxiXkPS
    AsceuajgmPxiXkPS

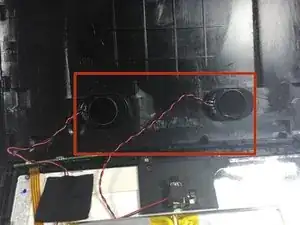

    UBFKQYHmuydNEYW1

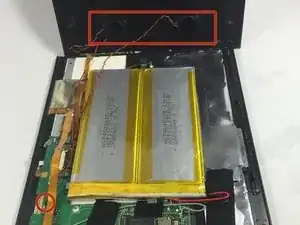

    RS55dmPwqeMoSW6R
    • First plug in the Soldering iron and wait for it to heat up. If your soldering iron has a dial, adjust the setting somewhere between 15 and 40 Watts..

    • Then connect the prepped speaker wire to the same spot where the previous wire was removed from.

    • Next take the new speakers and solder the ends of each set of wires to the logic board. The red wires go to the positive and the black wire goes to negative,which is labeled on the logic board. Do this by touching the soldering iron to the twisted copper wire for about a second to heat the wire.

    • Next, touch the solder to the soldering iron, so that a small amount of solder melts and forms a small bead between the surfaces being connected. (Avoid pooling of solder material by keeping this step between 3-4 seconds)

    • Lastly secure the new wires with the black tape and place the speaker back into its original slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
