Sharper Image SVC430 Lens Replacement

Geschrieben von: Kathryn Mattingly
  • Kommentare: 0
Sharper Image SVC430 Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

The user will learn how to:

  • Remove the device from the case
  • Completely tear down the device
  • Remove the lens

  1. G4vjRntjg6OHoUh4
    G4vjRntjg6OHoUh4
    ZeyhURLp4yx3MGPZ

    • Power off your device before you begin.

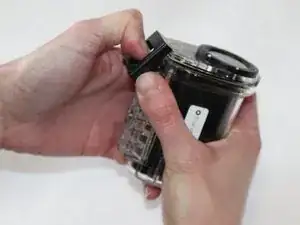

    • Use your thumb to push down on the lever that says "open" while simultaneously pushing up the latch with your other thumb.

  2. hdAfn2xuDnEj6xII
    hdAfn2xuDnEj6xII
    jAuGKeLcKSCIu5Xq

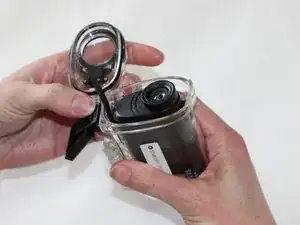

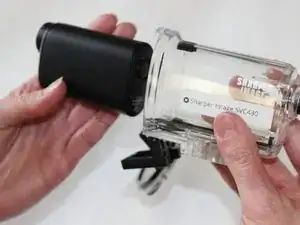

    • Once the latch is free, simply pull the front of the waterproof case off and slide the camera out.

  3. MJCLUwevDdyIsQPt
    MJCLUwevDdyIsQPt
    b6Bfd43sVOwqLZ6b
    ZJlgeMs1nnYgwFmD

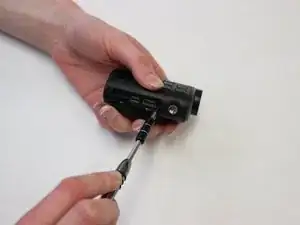

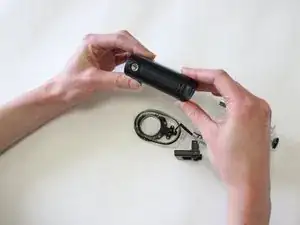

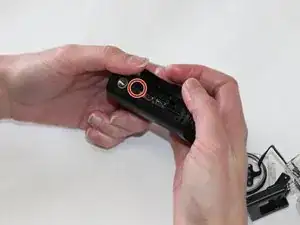

    • Locate the bottom of the device.

    • Now, using the metal screwdriver, unscrew the screw on the bottom of the device.

  4. fgiGsnROOLNFHqrr
    fgiGsnROOLNFHqrr
    rnRWSWfQacMiS4Rq

    • This panel should come off easily, do not apply too much pressure.

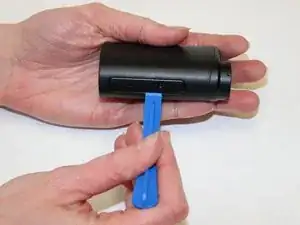

    • Use the plastic opening tool to pry open the plastic panel from the top of the camera.

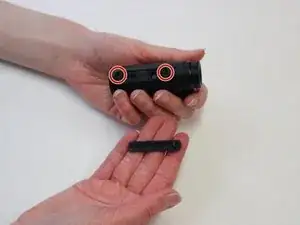

    • Locate the two screws on the top of the device.

  5. mRYCCDDL2wQvtevI

    • Use the JIS J0 screwdriver to unscrew the two screws on the top of the device.

  6. KPTPlyu5d6tCgDCT
    KPTPlyu5d6tCgDCT
    KjTwngRyPxNWJyJy
    smelvBEO6wSFFnbD

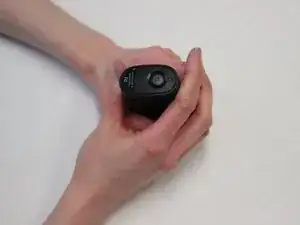

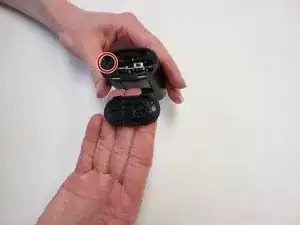

    • Use the plastic opening tool to pry off the back panel.

    • The back panel will come off easily.

  7. tSb64dnnA4eEsPhR

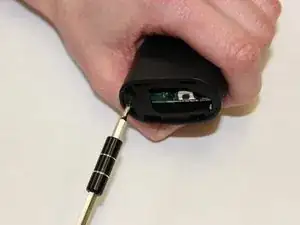

    • Use the metal screwdriver to unscrew the screw from the back of the device.

  8. IRige5RRYIjHn6Jn

    • Use the plastic opening tool to pry off the front panel of the device.

  9. YxhtZKGAGCCiIMnf

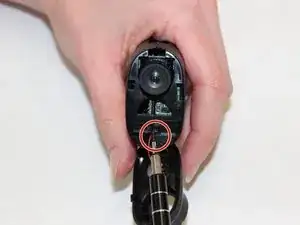

    • Using the screwdriver, unscrew the screw located underneath the front panel.

  10. LAJSVnSFbPlIHXPZ

    • Be gentle with the device since there are wires attached to the front plate and two halves.

    • Gently pull both sides of the device to expose the interior of the device.

  11. FZPJguVnXncBXxL3

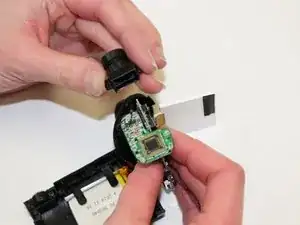

    • Behind the lens, use the metal screwdriver to unscrew the two screws holding the lens in place on the circuit board.

  12. REVMYFEEKeZCZ1IP

    • The lens should easily remove from the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
