Einleitung

This guide will demonstrate the replacement of the light intensity dial which controls the brightness of the LED lights. The dial is located on the back of the device on the same side as the inputs.

  1. BK3ULLgMi43icBIh
    BK3ULLgMi43icBIh
    awDGbfIFXNofyWWb
    • Gently position the device so that the buttons and speakers lie face down.

    • Unplug the power cord from the "DC Input."

  2. saCbT4QfiBnhMIdA
    saCbT4QfiBnhMIdA
    DZE6V3rP64oPSKIe
    wD1P5dYJmYvmR4oW
    • Remove the four 12mm phillips head #2 screws located along the outer edge of the white case.

    • Be careful! There are two small, easily-broken, plastic tabs at the bottom of the device keeping it together.

    • Once you remove the screws, pick the device up so that the grey label on the bottom of the device faces toward you.

    • With your thumbs on either side of the grey label, slowly push with both thumbs until the case pops open.

    • A small gap will open as the two tabs are released.

    • Do not pull the two halves apart yet. They are held together by the speaker wire.

  3. AcAEsabFemkPhNl5
    AcAEsabFemkPhNl5
    MrLrSYLpoV1msw1L
    • Grip both sides of the top round part of the case and carefully open it like a clam. The bottom of the two halves are connected by the speaker wire. Do not separate by more than 1 centimeter.

    • Grip either side of the top round part of the case and carefully open the device to reveal all the hidden treasures inside!

    • Lay the device down, so that all the internal components are facing upwards.

  4. IMDyLtnnSRGRF2d2

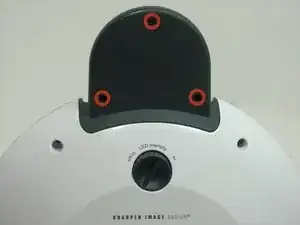

    • Turn the device over so that the internals are facing down.

    • Remove the three 7mm Phillips #1 screws connecting the Zipconnect unit.

  5. LE6OZv1p3i2CqJr1
    LE6OZv1p3i2CqJr1
    J4LU2I1bqlUBCAIV

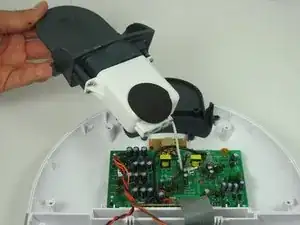

    • Turn the device over again so you are looking at the internals.

    • The Zipconnect unit will lift out but will still be attached by a wire connected to the motherboard.

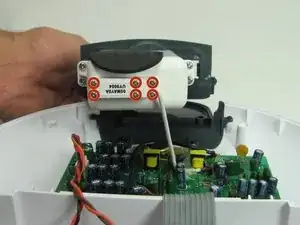

    • Remove the six 7mm Phillips #1 screws attatching the Zipconnect unit to the motherboard wire and set the unit out of the way.

  6. ukgKMRxY1gHdb3u2
    ukgKMRxY1gHdb3u2
    yEPvJ5ykTEo4XtU4

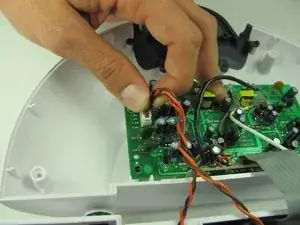

    • Next, disconnect the speaker wire from the motherboard by firmly griping the wires as close to the connection with two fingers as possible and pulling the connector out.

    • Moving the connector back and forth as you pull will make removal easier.

  7. wYKyXMBknq3NeY2C
    • Remove the two 11mm Phillips #1 screws attaching the small brown circuit board to the plastic case.

    • Also remove the four 11mm Phillips #1 screws attaching the motherboard to the plastic case.

  8. fODGaG6CfjJLqGdq
    fODGaG6CfjJLqGdq
    YZJPSB4O4LBn6jet

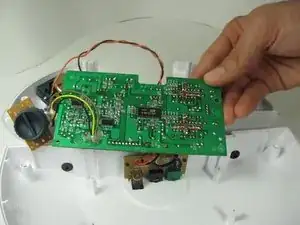

    • Lift up on both the motherboard and brown circuit board that contains the light intensity dial and turn the motherboard over.

  9. OQPGXc1Qg1tAepDc
    OQPGXc1Qg1tAepDc
    VlOBlyWU6hRZZVT3
    wE4PunGGdvGGxnlJ

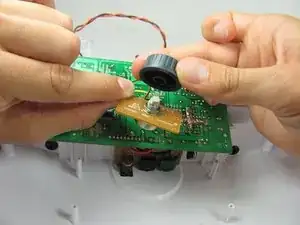

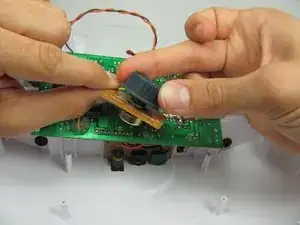

    • Hold the brown circuit board with one hand and the light intensity dial with two fingers of your other hand and carefully pull them apart.

Abschluss

To reassemble your device, follow these instructions in reverse order.
