Einleitung
This guide will demonstrate how to remove the two speakers located in the front of the device. Only minimal disassembly is required.
Werkzeuge
-
-
Gently position the device so that the buttons and speakers lie face down.
-
Unplug the power cord from the "DC Input."
-
-
-
Remove the four 12mm phillips head #2 screws located along the outer edge of the white case.
-
Once you remove the screws, pick the device up so that the grey label on the bottom of the device faces toward you.
-
With your thumbs on either side of the grey label, slowly push with both thumbs until the case pops open.
-
-
-
Grip both sides of the top round part of the case and carefully open it like a clam. The bottom of the two halves are connected by the speaker wire. Do not separate by more than 1 centimeter.
-
Grip either side of the top round part of the case and carefully open the device to reveal all the hidden treasures inside!
-
Lay the device down, so that all the internal components are facing upwards.
-
-
-
Disconnect the speaker wire from the motherboard by firmly griping the black and red wires close to the connection with two fingers and pulling the connector out.
-
-
-

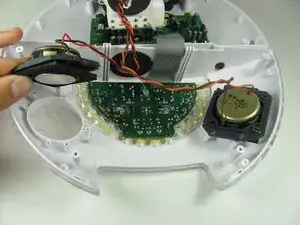

Remove the eight 11mm Phillips #1 screws that connect the speakers to the white outer case.
-
To reassemble your device, follow these instructions in reverse order.
