Replacing a broken cable is easy when you can see the broken end in the shifter but it's impossible when you can't!
You'll try to downshift but after a couple of clicks, you won't be able to shift anymore.
Because you've not downshifted to can't remove the broken wire and bead.
This guide shows you how to make a hook to pull the ratchet allowing the gear to downshift.
-
-

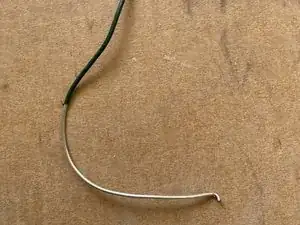

I used 1.6mm green plastic-covered plant wire from Bunnings. The wire needs to be bendable and yet stiff enough to hold a hook.
-

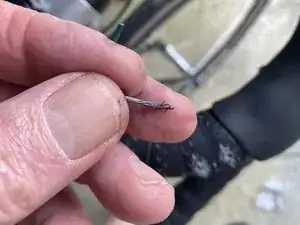

Strip the green plastic and bend the end 2mm
-
-
-
Downshift as much as you can
-
Pull the brake to open
-

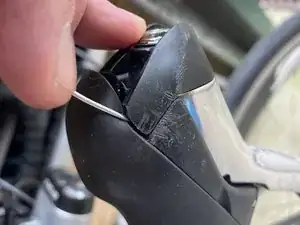

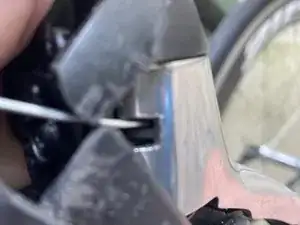

Insert the hook into the hold the cable comes through and rotate it so that it holds where the cable bead normally sits
-
Close the brake so the wire is loosely held
-
Gently pull the wire while downshifting. You'll now be able to feel and hear the downshifting. Continue until it's fully downshifted
-
-
-

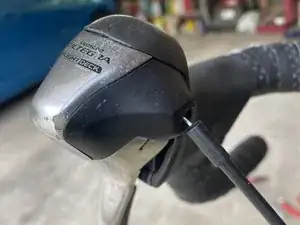

Pull the brake lever and you'll now be able to pull the broken wire out with long nose pliars
-
To reassemble your device, follow these instructions in reverse order.
